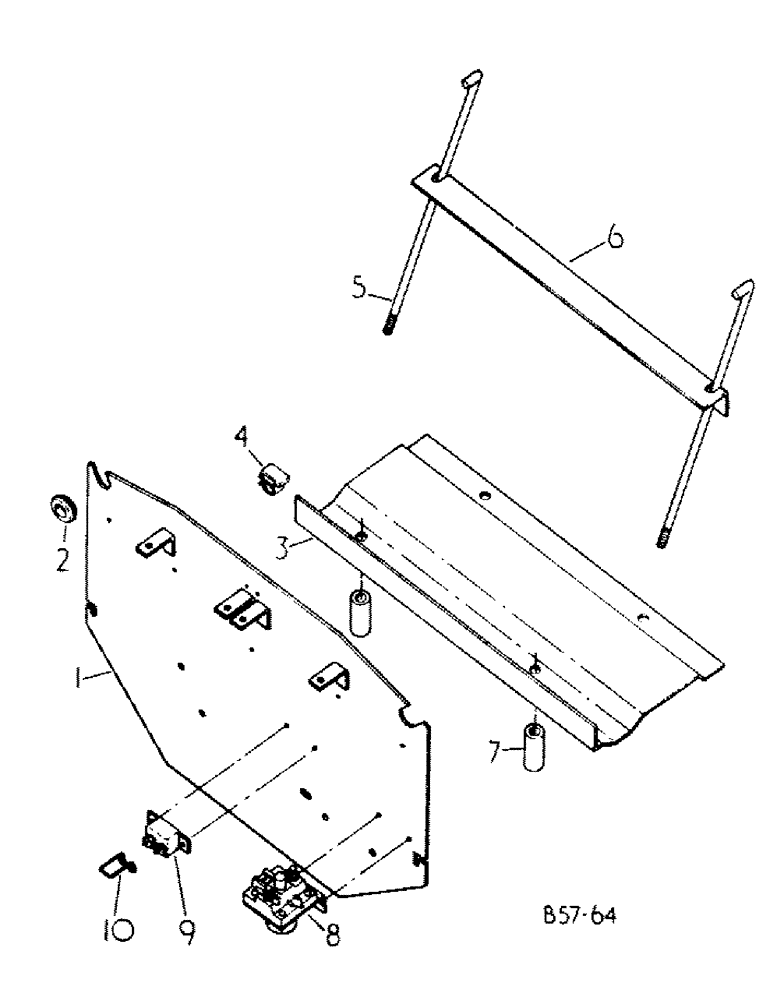

Запчасти Case IH 384 (08-07) - ELECTRICAL, BATTERY TRAY AND HEAT SHIELD, TRACTORS WITH SERIAL NO. 1936 AND ABOVE (06) - ELECTRICAL

1

3121933R1

SHIELD

ASSY, heat

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3127519R1

STRIP

SEAL

1шт.

2

3116086R1

COVER

GROMMET, main harness

1шт.

3

3124060R1

TRAY

battery

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

NLS

NO LONGER SERVICED

2шт.

102635

NUT,3/8"-16, G5

2шт.

95-11041

WASHER,3/8"

lock 3/8"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

537025R1

CLIP

cable edge

1шт.

5

3124062R1

ROD

battery hold down

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

312178R1

BRACKET, battery hold down

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

2шт.

7

3124061R1

SPACER

2шт.

7

3127506R1

SPACER

battery tray support RH, machines fitted w/power steering

1шт.

8

3109131R91

SWITCH

solenoid starter

1шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

no. 10 x 1/2 pln r/hds mach

1шт.

110633

NUT,#10-24

2шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

3111318R1

NUT

2шт.

705829R1

SPRING WASHER

cold starting

1шт.

9

3062302R91

BREAKER

circuit

1шт.

436695

SCREW,Slotted Pan Hd, #8-32 x 1/2"

no. 8 x 1/2 znd p/hds mach

2шт.

120622

NUT,#8-32

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

10

3066558R1

ELEMENT

ballast resistor, cold starting

1шт.
