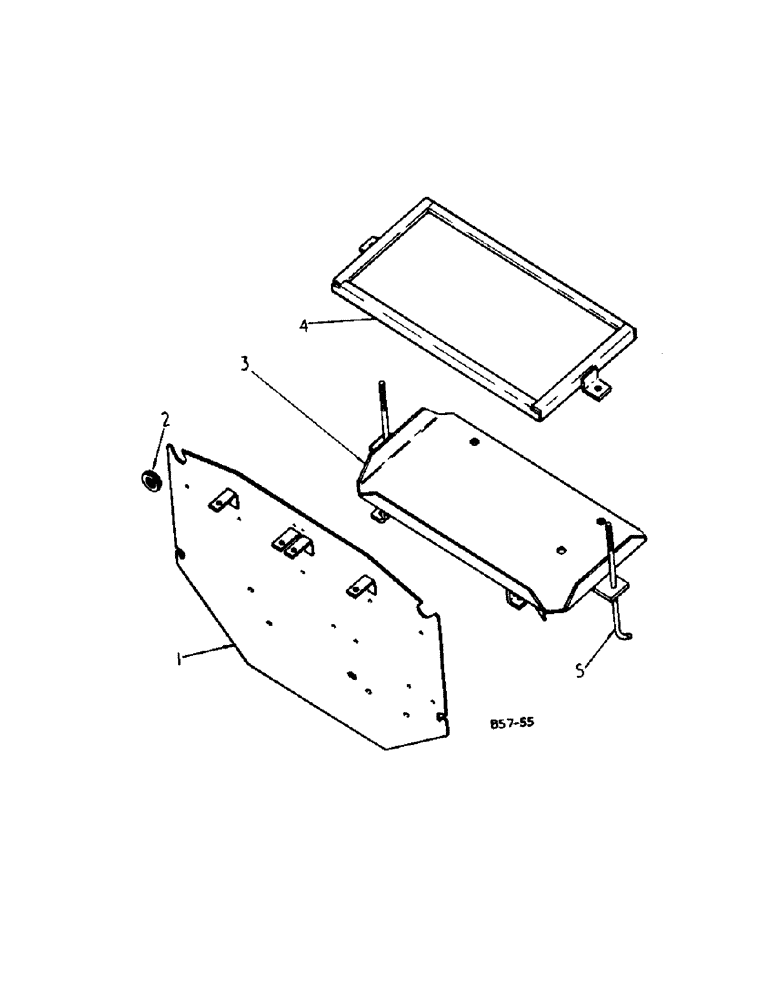

Запчасти Case IH 384 (08-06[1]) - ELECTRICAL, BATTERY TRAY AND HEAT SHIELD, TRACTORS WITH SERIAL NO. 1935 AND BELOW (06) - ELECTRICAL

1

3121933R1

SHIELD

heat

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3123549R1

INSULATOR

SEAL

1шт.

2

3114086R1

GROMMET

main harness

1шт.

3

3112286R2

TRAY, battery, not serviced order, (1) tray 3124060R1, (2) bolt 179849, (2) bolt 179839, (2) nut 102639, (2) washer 103341, (1) clip 537025R1, (1) bracket 527604R1, (2) rod 527605R3, (2) nut 102634, (2) washer 103340, (2) spacer 3124061R1

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

4

3062059R92

ANCHOR

RETAINER, battery

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

5

3066551R1

BOLT

ROD, battery hold down

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
