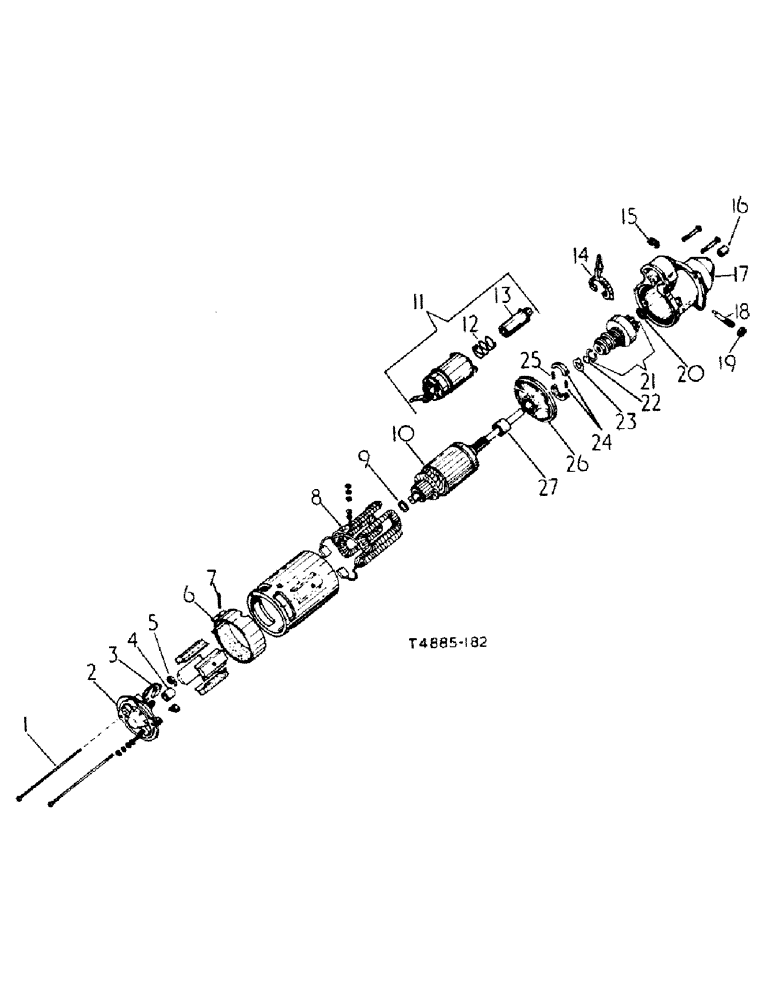

Запчасти Case IH 384 (08-05) - ELECTRICAL, STARTER MOTOR, LUCAS (06) - ELECTRICAL

3046890R92

STARTER MOTOR

MOTOR ASSY, starter, Lucas 26288

1шт.

104200A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104200A1C

CORE-STARTER

Return Number

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

BOLT, 3/8 x 1-1/8 x pln type 5

2шт.

102635

NUT,3/8"-16, G5

NUT, 3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

1

BOLT, through, supplied as a pair, order kit 3114768R91

1шт.

2

3111024R91

BRACKET

BRACKET OR FRAME W/BUSH 3111025R1

1шт.

3

705833R91

BRUSH, COMMUTATOR

BRUSH BRUSH SET

1шт.

4

3113029R91

BUSHING

KIT, bushes

1шт.

5

3043618R91

VALVE SPRING

KIT, brush tension spring

1шт.

6

3062342R91

SPARE PART BAND, cover w/nut 705832R1 and screw 3106686R1

1шт.

7

3106686R1

SCREW

SCREW, cover band fixing

1шт.

705832R1

NUT

NUT, cover band fixing screw

1шт.

8

3062381R91

COIL

COIL, field, set

1шт.

9

WASHER, commutator thrust, order kit 3114823R91

1шт.

10

ARMATURE, order kit 3114823R91

1шт.

11

3111040R91

SOLENOID SWITCH

SWITCH, starter solenoid

1шт.

12

SPRING, plunger, order kit 3117008R91

1шт.

13

3117008R91

NUT

KIT, solnenoid end cap nut, solenoid fixing, order kit 3114821R91

1шт.

14

LEVER, order kit 3114821R91

1шт.

15

(Not used)

1шт.

16

BUSHING, bearing, order kit 3113029R91

1шт.

17

3111030R91

BRACKET

BRACKET OR FRAME, w/bushing

1шт.

18

PIN, pivot, order kit, 3114821R91

1шт.

19

NUT, pivot bolt, order kit, 3114821R91

1шт.

20

COLLAR, thrust, order kit 3114822R91

1шт.

21

DRIVE, roller clutch, order kit 3114822R91

1шт.

22

RING, retaining, order kit 3114822R91

1шт.

23

WASHER, commutator end thrust, order kit 3114823R91

1шт.

24

SHOE ASSY, brake w/two spring 3062376R1, order kit 3113030R91

1шт.

25

SPRING, brake shoe, order kit 3113030R91

2шт.

26

3111034R91

BRACKET

BRACKET OR FRAME BRAKE W/BUSHING 3111035R1

1шт.

27

BUSHING, brake bracket, order kit 3113029R91

1шт.

3114769R91

KIT

SET, sundry parts

1шт.

3114768R91

BOLT

KIT, bolts

1шт.

3113030R91

KIT

KIT, brakes

1шт.

3114821R91

PACKAGE

KIT, solenoid link

1шт.

3114822R92

PACKAGE

KIT, drive assy

1шт.

3114823R91

ARMATURE

KIT, armature

1шт.

3113029R91

BUSHING

KIT, bushes

1шт.

78986C1

PACKAGE

KIT, sundry parts, consist of washer, thrust (NSS), ring, jumping (NSS)

1шт.
