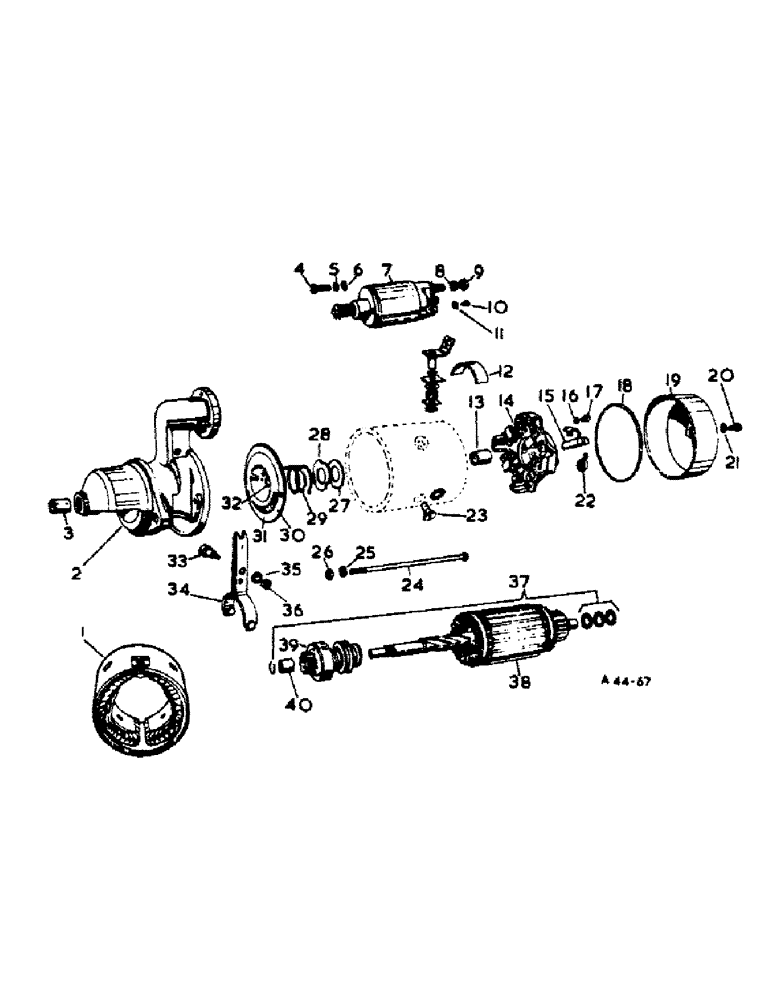

Запчасти Case IH 384 (08-04) - ELECTRICAL, STARTER MOTOR, BOSCH (06) - ELECTRICAL

3114177R91

STARTER MOTOR

MOTOR ASSY, starter w/spacer (Order starter motor 3046890R92)

1шт.

104200A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104200A1C

CORE-STARTER

Return Number

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

BOLT, 3/8 x 1-1/8 pln type 5

3шт.

3114178R1

SPACER

SPACER, starter motor

1шт.

537143R1

TERMINAL CONNECTOR,Male

TERMINAL, Male

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

102635

NUT,3/8"-16, G5

NUT, 3/8"-16, G5

3шт.

1

3078451R91

COIL

COIL, field winding 1 and 2

1шт.

1

3078452R91

COIL

COIL, field winding 3 and 4

1шт.

2

3113004R91

HOUSING

END ASSY, drive

1шт.

3

3055738R1

BUSHING

BUSHING, drive bearing

1шт.

4

931340R1

SCREW,Slotted Cheese, M5 x 0.8 x 12mm, Cl 4.8

SCREW, sltd

3шт.

5

933986R1

LOCK WASHER,M5

LOCK WASHER, M5

3шт.

6

3132658R1

WASHER

WASHER, relay cover

3шт.

7

3113006R91

SOLENOID SWITCH

RELAY

1шт.

8

934075R1

LOCK WASHER,M10

LOCK WASHER, M10

2шт.

9

933681R1

THIN NUT,Thin, M10 x 1.5, Cl 04

NUT, relay cover

2шт.

10

931342R1

SCREW,Slotted Cheese, M4 x 0.7 x 6mm, Cl 8.8

SCREW

1шт.

11

3132763R1

TERMINAL CONNECTOR

CLAMP, terminal

1шт.

12

3078459R91

PACKAGE, REPAIR

KIT, terminals

1шт.

13

3078457R1

BUSHING

BUSHING

1шт.

14

3132655R1

END

SPARE PART END ASSY, commutator

1шт.

15

3055767R91

BRUSH SET

SET, crabon brushes

1шт.

16

933994R1

LOCK WASHER,M4

WASHER, lock

4шт.

17

931399R1

BOLT,M4 x 8mm, Cl 8.8

SCREW, relay cover

4шт.

18

3055784R1

RING

RING, C.E. packing

1шт.

19

3132656R1

X

COVER, end

1шт.

20

931400R1

SCREW,M4 x 10mm, Cl 8.8

SCREW, end cover

2шт.

21

3136923R1

WASHER

WASHER

2шт.

22

3055769R1

SPRING

SPRING, carbon brush

4шт.

23

3078334R1

SCREW

SCREW, coil body

4шт.

24

3132649R1

SPARE PART PIN, threaded

2шт.

25

933987R1

LOCK WASHER,M6

WASHER, lock

2шт.

26

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

NUT, , hex M6, Cl 8

2шт.

27

3132651R1

SEALING WASHER

WASHER, insulating

1шт.

28

3132652R1

COLLAR

PLATE, spring

1шт.

29

3055748R1

SPRING

SPRING, helical

1шт.

30

3132650R1

BEARING

SUPPORT, intermediate

1шт.

31

3132653R1

GASKET

RING, packing

1шт.

32

3055747R1

BUSHING

BUSHING, bearing

1шт.

33

3132648R1

SCREW

SCREW, engaging lever

1шт.

34

3132647R1

LEVER

SPARE PART LEVER, engaging

1шт.

35

933983R1

LOCK WASHER,M6

WASHER, lock engaging lever

1шт.

36

43362

NUT,M8 x 1.25, Cl 10

NUT, M8, Cl 10, Engaging Lever

1шт.

37

3132465R91

PACKAGE

KIT, amature

1шт.

38

3078456R91

ARMATURE

ARMATURE ASSY

1шт.

39

3113005R91

DRIVE

SPARE PART DRIVE ASSY

1шт.

40

3078455R1

BUSHING

BUSHING, drive assy

1шт.
