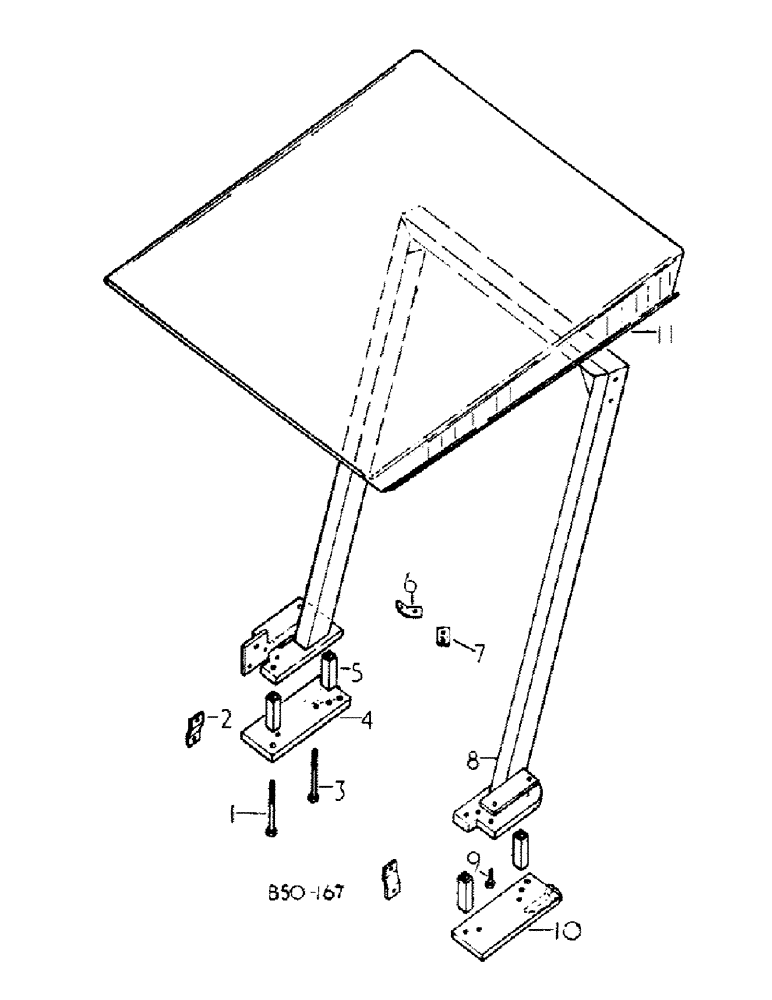

Запчасти Case IH 384 (13-10) - SUPERSTRUCTURE, PROTECTIVE FRAME, TWO POST (05) - SUPERSTRUCTURE

3125718R91

ATTACHMENT ROPS, 2 post

1шт.

1

26251R1

BOLT,Hex, 3/4" - 10 x 9", Gr 8

SCREW, 3/4-10 x 9 gr 8 hex hd cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

25529R1

NUT,3/4"-10, G8

3/4 PHC type 8

4шт.

2

3125728R1

BRACE, running board

2шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

25534R1

WASHER

.406 x .812 x .065 PHC hdn

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

25522R1

NUT,3/8"-16, G8

3/8 PHC type 8

4шт.

3

26711R1

BOLT,Hex, 5/8" - 11 x 9", Gr 8

SCREW, 5/8-11 x 9 gr 8 hex hd

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

25528R1

NUT,5/8"-11, G8

5/8 PHC type 8

6шт.

4

3125726R1

STRAP ASSY, RH mounting

1шт.

5

3125727R1

TUBE, square

4шт.

6

3125730R1

BRACKET, seat belt RH

1шт.

24860R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

9412230

LOCK NUT

1/2 PHC P/T lock type 8

1шт.

7

3125729R1

BRACKET, seat belt LH

1шт.

24860R1

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

9412230

LOCK NUT

1/2 PHC P/T lock type 8

1шт.

8

3125724R1

BAR ASSY, welded roll

1шт.

24862R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

4шт.

25536R1

WASHER

.531 x 1.062 x .095 PHC hdn

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

25526R1

NUT,1/2"-13, G8

1/2 PHC type 8

4шт.

9

24877R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25528R1

NUT,5/8"-11, G8

5/8 PHC type 8

4шт.

10

3125725R1

STRAP ASSY, LH mounting

1шт.

11

3125719R91

TOP, ROPS canopy

1шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

ROPS canopy Hex, 3/8"-16 x 1", G8, Full Thd

1шт.

25534R1

WASHER

.406 x .812 x .065 PHC hdn

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

70773C1

DECAL

PRODUCT GRAPHIC, seat belt caution

1шт.

70571C1

DECAL

PRODUCT GRAPHIC, ROPS caution

1шт.

1213290C1

PRODUCT GRAPHIC, canopy caution

1шт.
