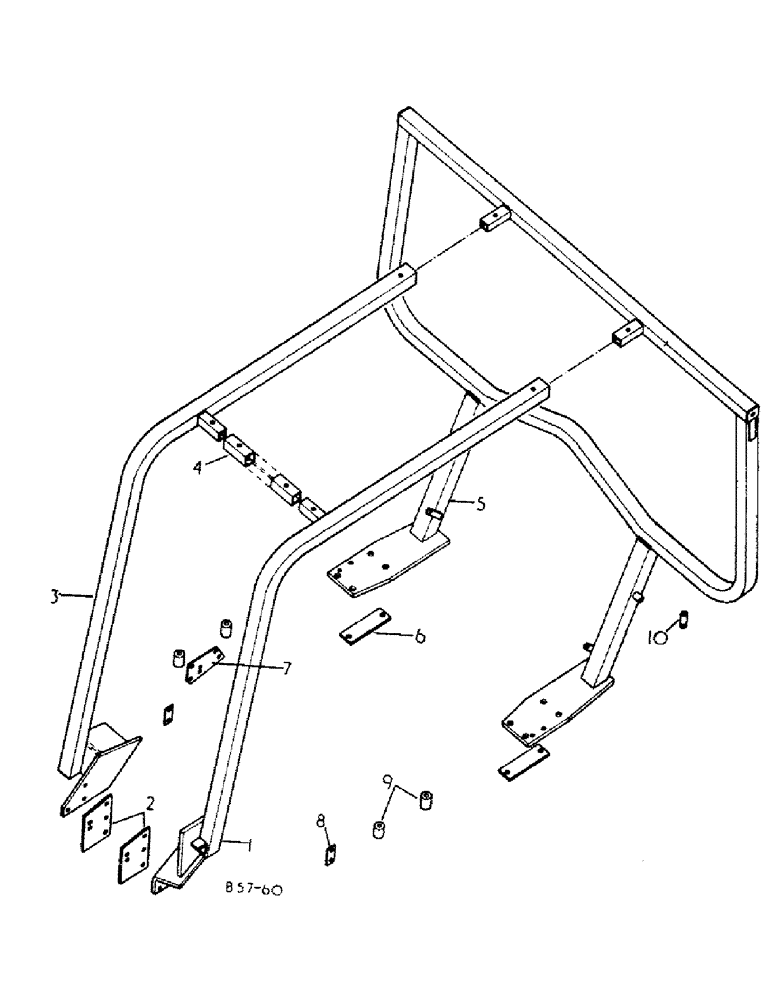

Запчасти Case IH 384 (13-09) - SUPERSTRUCTURE, PROTECTIVE FRAME, FOUR POST (05) - SUPERSTRUCTURE

66083C92

ATTACHEMENT, ROPS, 4 post

1шт.

1

SUPPORT ASSY, front LH (NSS)

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 type 8

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

2

528273R1

PLATE, spacer

2шт.

3

SUPPORT ASSY, front RH (NSS)

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 type 8

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

4

BAR, front cross (NSS)

1шт.

20906R1

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

5/8 x 3-1/4 type 8

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21434R1

NUT,5/8"-11, G8

5/8 type 8

4шт.

5

FRAME ASSY, rear

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

528267R1

STRIP, spacer

2шт.

21434R1

NUT,5/8"-11, G8

5/8 type 8

4шт.

7

117729C1

PLATE, handbrake lever mtg

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

3125240R1

FILLER, fender

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

9

66089C1

SPACER, fender

4шт.

22297R1

BOLT

SCREW, 5/8-11 x 3-3/4 znd type 8

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

4шт.

10

528265R1

POST, rear light

1шт.

380575R2

SCREW,Hex, 5/8" - 11 x 8.80", Gr 8

4шт.

270366C1

WASHER

4шт.

70773C1

DECAL

PRODUCT GRAPHIC, seat belt and ROPS caution instructions

1шт.

65982C1

DECAL

PRODUCT GRAPHIC, caution instructions

1шт.

70571C1

DECAL

PRODUCT GRAPHIC, ROPS caution

1шт.

PRODUCT GRAPHIC, serial number (NSS)

1шт.

142862

SCREW,Type U Metallic, Rnd Hd, #4 x 1/4"

no. 4 x 1/4 pln r/hd drive

2шт.
