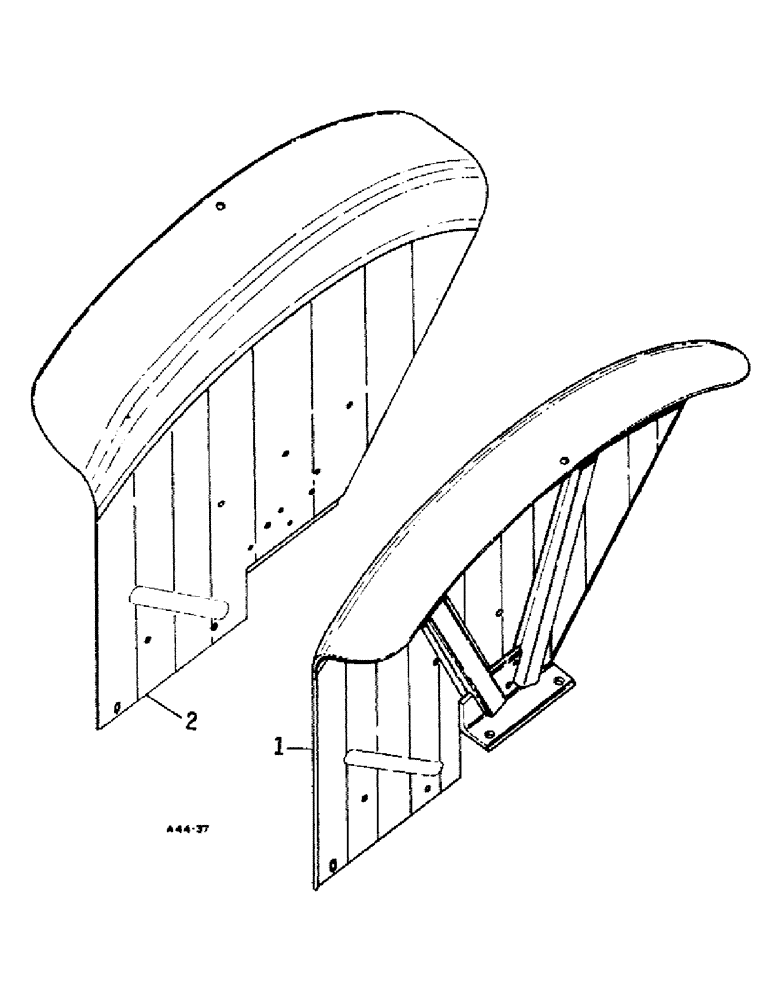

Запчасти Case IH 384 (13-07) - SUPERSTRUCTURE, REAR FENDERS, CROWN (05) - SUPERSTRUCTURE

1

3119905R91

FENDER

LH

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5

2шт.

102639

NUT,5/8"-11, G5

2шт.

2

3119906R91

FENDER

RH

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5

2шт.

102639

NUT,5/8"-11, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051, RH fender to footplate

1шт.

3119909R1

PLUG

blanking 3/16 hole x 1-1/16 gap

1шт.

3119907R1

PLUG

blanking 1/2 hole x 1-1/16 gap

3шт.

3119908R1

PLUG

blanking 7/16 hole x 1/16 gap

3шт.

117974

GROMMET, 3/8, fender cable entry

2шт.

708115R1

PLATE ASSY.

CLIP, cable LH fender

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3125820R1

SLEEVE

PVC, for use w/LH and RH fenders

3шт.

3125821R1

SLEEVE

PVC, for use w/RH fender

1шт.
