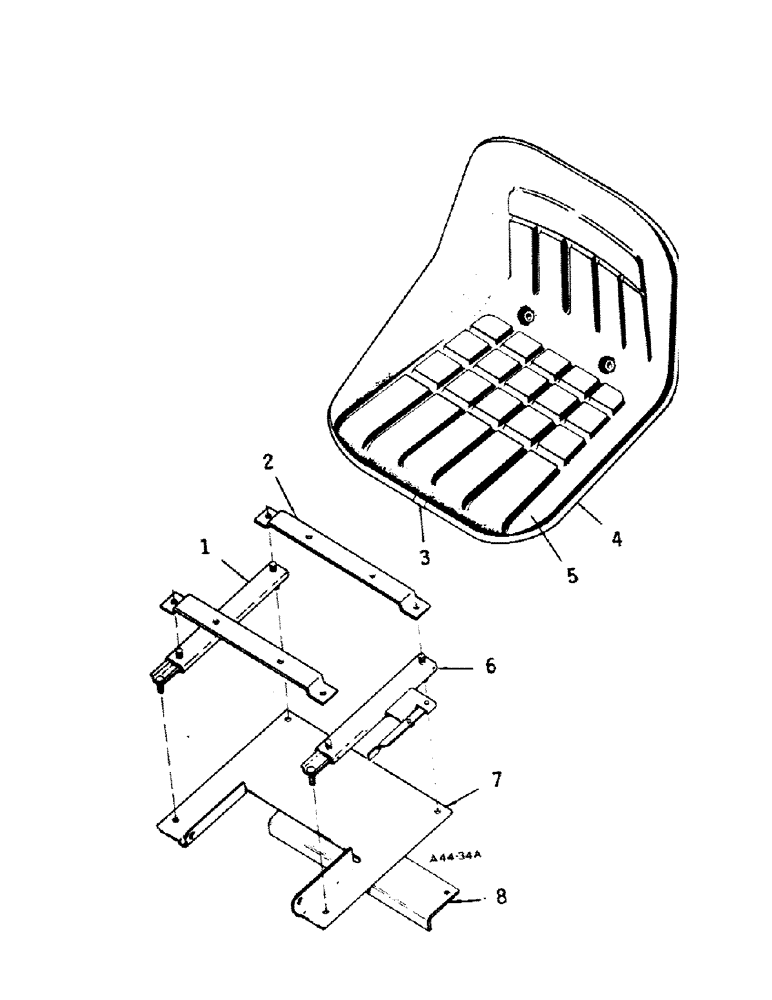

Запчасти Case IH 384 (13-05) - SUPERSTRUCTURE, BOSTROM SEAT, STATIC (05) - SUPERSTRUCTURE

3112186R1

SEAT, Bostrom static MK III

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

1

3112740R1

RAIL

slide RH

1шт.

3112822R1

NUT

5/16 hex

4шт.

106261

WASHER,1/4"

.312 x .731 x .051 pln

4шт.

2

3112738R1

BRACKET

mounting

2шт.

179812

GEAR

5/16 x 1/2 pln type 5

4шт.

106261

WASHER,1/4"

.312 x .734 x .051 pln

4шт.

3

825224C1

CLIP

trim

1шт.

4

(Not serviced)

1шт.

5

3113424R91

SEAT

PAN, seat and cushion

1шт.

825222C1

GROMMET

2шт.

6

3112739R1

RAIL

slide LH

1шт.

3112822R1

NUT

5/16 hex

4шт.

106261

WASHER,1/4"

.312 x .734 x .051 pln

4шт.

7

3112718R91

HINGE

ASSY, platform

1шт.

8

(Not used)

1шт.
