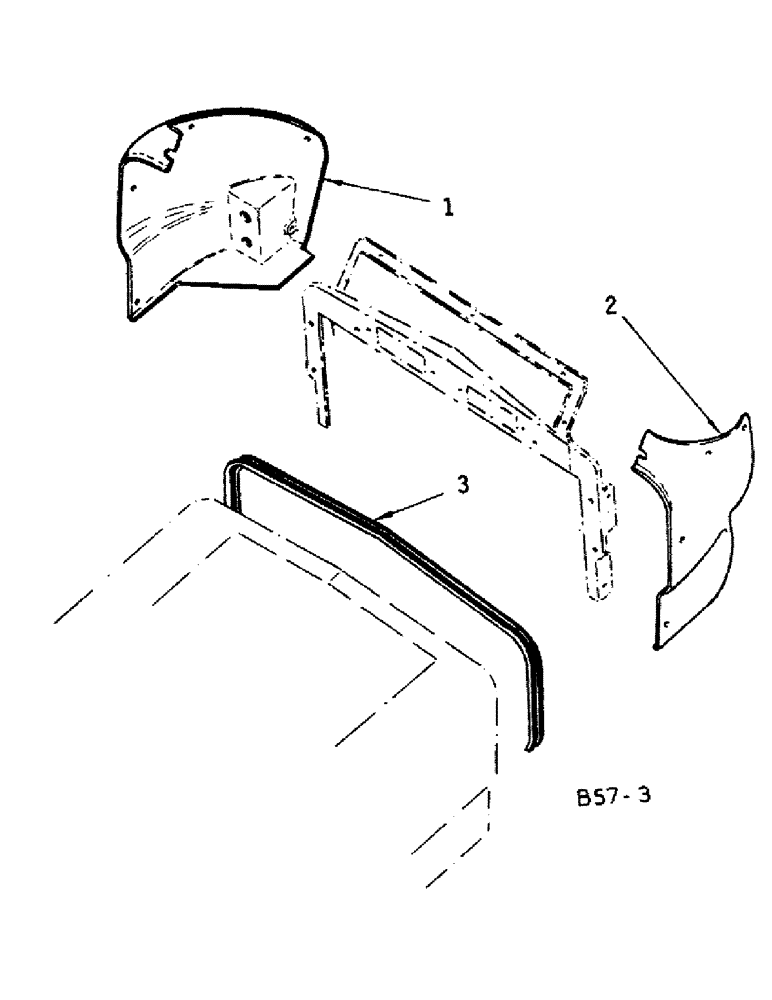

Запчасти Case IH 384 (13-03) - SUPERSTRUCTURE, INSTRUMENT PANEL SIDE HOUSING (05) - SUPERSTRUCTURE

1

3121712R2

HOUSING

instrument panel side RH

1шт.

3121715R1

SPRING NUT

reverse

3шт.

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, no. 10-16 x 5/8 P/HDCR tap

3шт.

538840R1

PLUG

blanking

1шт.

3114406R1

PLUG

blanking

1шт.

2

3121711R2

HOUSING

instrument panel side LH

1шт.

3121715R1

SPRING NUT

reverse

3шт.

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, no. 10-16 x 5/8 P/HDCR tap

7шт.

23993R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, no. 10-16 x 1/2 h/hds tap

2шт.

120391

WASHER,#10

.219 x .500 x .036, instrument panel side housing to support frame

2шт.

3

3121645R1

SEALING STRIP

rubber sealing strip, bulk length 50 yards

1шт.
