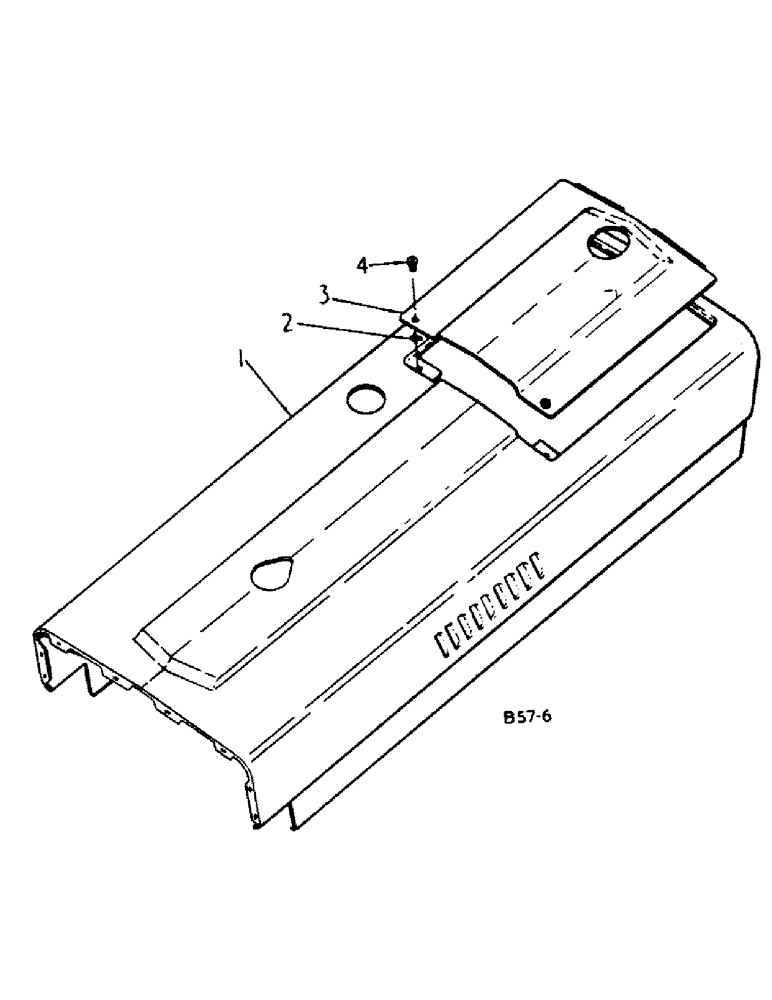

Запчасти Case IH 384 (13-01) - SUPERSTRUCTURE, HOOD AND REAR COVER (05) - SUPERSTRUCTURE

1

3123113R1

SHEET

ASSY. HOOD, upswept exhaust

1шт.

1

3123115R1

SHEET

ASSY. HOOD, underslung exhaust

1шт.

3118624R1

SCREW

5/16" x 5/8" hex washer hd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

2

376787R1

WASHER

2шт.

3

3121900R91

COVER

ASSY, hood

1шт.

4

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW, optional with

2шт.

4

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW

2шт.
