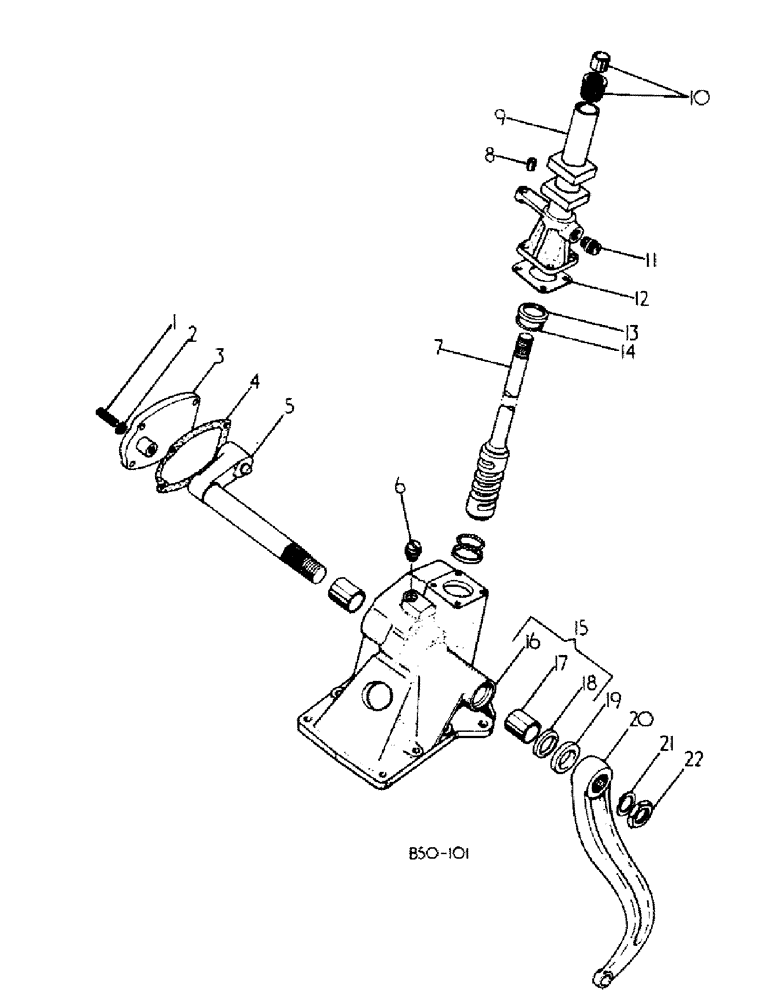

Запчасти Case IH 384 (05-01) - STEERING, STEERING GEAR (04) - STEERING

3121824R91

GEAR

steering box w/drop arm, 82-154900

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

7/16 x 1-3/8 pln type 5

2шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16 x 1-1/4 pln type 5

2шт.

NLS

NO LONGER SERVICED

PIN, 1/2 x 1-1/2 pln UHDN dowel

2шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8 x 1-1/2 pln type 5

1шт.

115550

LOCK WASHER,Int Tooth, 7/16"

WASHER, 7/16 int pln tooth lock

4шт.

1

3125807R1

SCREW

thrust

1шт.

2

3066262R1

LOCK NUT

1/4 lock

1шт.

3

787161R11

COVER

ASSY, side

1шт.

4

787162R1

GASKET

side cover paper

1шт.

5

3070438R91

SHAFT

ASSY, rocker

1шт.

6

787168R1

PLUG

oil

2шт.

7

3125812R1

SHAFT

ASSY, cam and steering

1шт.

8

(Not serviced)

1шт.

9

3125811R1

BRACKET

TUBE ASSY, bracket and socket outer

1шт.

10

3070030R91

BUSHING

ASSY, top end

1шт.

11

787168R1

PLUG

oil

2шт.

12

3044606R1

GASKET

tube

1шт.

12

708618R1

SHIM

.0024

2шт.

12

708619R1

SHIM

.005

2шт.

12

708623R1

SHIM

.010

2шт.

13

708612R1

BEARING CUP,39.69mm ID x 54.84mm OD x 7mm W

CUP, ball

2шт.

14

3112672R1

CAGE, ball assy

2шт.

15

3125812R1

SHAFT

BOX ASSY, steering gear

1шт.

16

(Not serviced)

1шт.

17

(Not serviced)

1шт.

18

(Not serviced)

1шт.

19

3040029R1

RING

sealing

1шт.

20

3125808R1

ARM

drop

1шт.

21

88695

LOCK WASHER,1 1/8"

1-1/8 spring

1шт.

22

219776

RING

1-1/8 lock

1шт.
