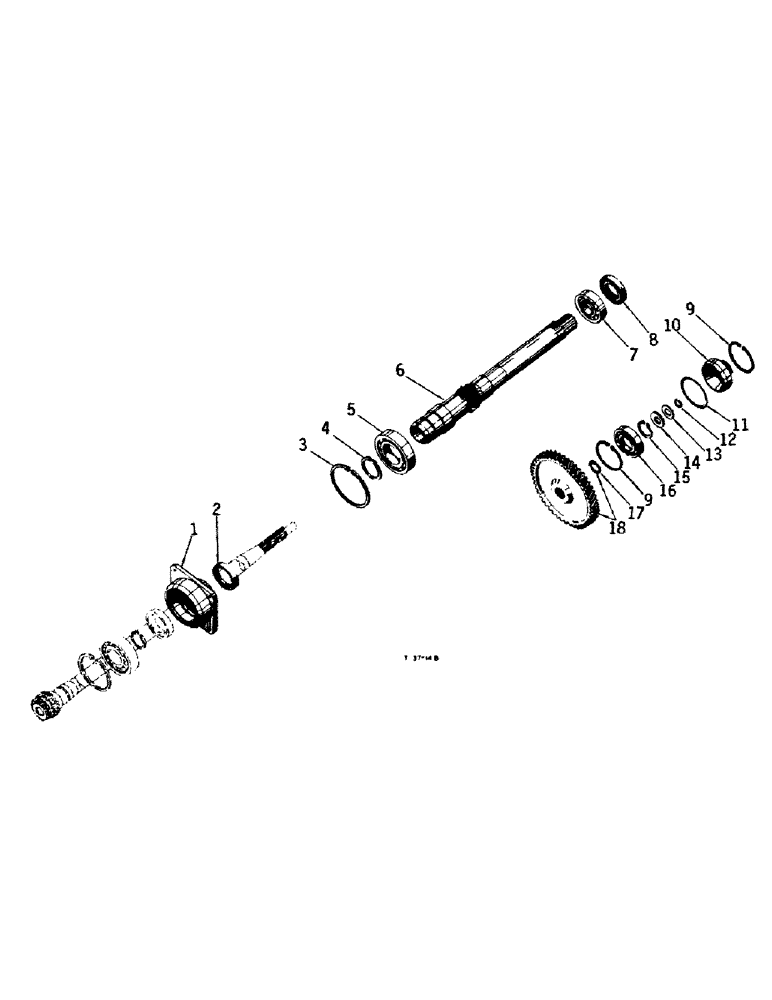

Запчасти Case IH 384 (07-15) - DRIVE TRAIN, SINGLE SPEED CONSTANT RUNNING PTO GEARS AND SHAFTS, 573 (04) - Drive Train

1

751077R1

CAGE

GAGE, bearing transmission driving shaft

1шт.

2

3066618R91

SEAL,60mm ID x 80.15mm OD x 10mm Thk

PTO driving shaft rear oil

1шт.

For 50 mm. shaft see P/N 3066615R91

1шт.

3

933078R1

SNAP RING,M110, Int

RING, 116.46 mm int ret

1шт.

4

3074379R1

SNAP RING

RING, Anderton type 4100 60mm, optinal with

1шт.

4

703696R1

RING

PTO driving shaft rear bearing retaining, 60mm ext. optional with

1шт.

4

3064407R1

SNAP RING

RING, PTO driving shaft rear bearing retaining, 60mm ext.

1шт.

5

ST718

BEARING, BALL

BEARING, PTO driving shaft rear

1шт.

6

3044006R1

GEAR

SHAFT, driving and gear PTO, 15T

1шт.

6

3044303R1

SHAFT

driving and gear PTO, 19T

1шт.

7

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING, PTO driving shaft front

1шт.

8

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

PTO driving shaft front oil

1шт.

9

933288R1

SNAP RING,M85, Int

RING, 89.96 mm int ret

2шт.

10

751148R3

CAP

PTO front bearing

1шт.

11

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

RING, PTO bearing cap, 3-3/8 x 3-3/4 x 3/16

1шт.

12

516010R1

O-RING

RING, 3/4 ext. retaining

1шт.

13

(Not used)

1шт.

14

751142R1

WASHER

retaining PTO shaft front

1шт.

15

933283R1

SNAP RING,M45, Ext

RING, 40.72 mm ext ret

1шт.

16

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING, PTO shaft front

1шт.

17

933579R1

SNAP RING,M35, Int

1шт.

18

3044007R11

GEAR

PTO driven, 55T

1шт.

1093362R1

PRODUCT GRAPHIC

PTO speed insert

1шт.
