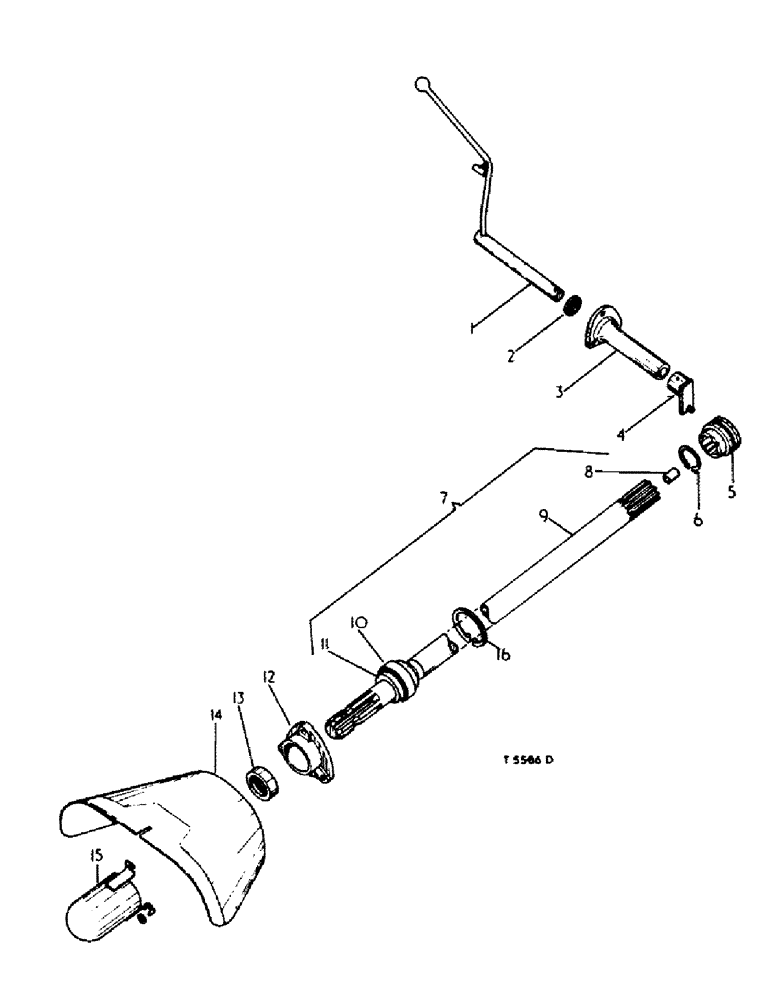

Запчасти Case IH 384 (07-14) - DRIVE TRAIN, REAR PTO, CONSTANT RUNNING PTO (04) - Drive Train

1

3119812R91

LEVER

PTO shifter

1шт.

Lever for tractor with auxiliary valve is P/N 3119815R91. For tractor with cab, the P/N is 3123494R1.

1шт.

21000R1

PIN,3/16" x 1 1/4", Coiled

1шт.

2

704393R91

OIL SEAL

PTO shifter bracket oil

1шт.

3

704392R21

SUPPORT

BRACKET, PTO rear clutch w/oil seal 704393R91

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

3063246R21

LEVER

PTO

1шт.

5

751113R2

CLUTCH

rear PTO shaft

1шт.

6

751117R1

CLIP

RING, PTO shaft rear clutch ret

1шт.

6

3117077R1

CLIP

RING, PTO shaft rear clutch ret

1шт.

7

3073111R91

SHAFT

PTO

1шт.

8

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

PTO rear shaft

1шт.

9

SHAFT, PTO (NSS)

1шт.

10

3073114R91

SERVICE KIT

PACKAGE, PTO shaft bearing service

1шт.

11

COLLAR, PTO shaft, order pkg 3073114R91 (NSS)

1шт.

12

704387R12

RETAINER

oil seal

1шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

9635082

NUT,5/16" - 18, Gr 5

6шт.

13

358812R91

OIL SEAL

SEAL, PTO oil

1шт.

14

704395R96

SHIELD

SHEILD, safety PTO

1шт.

3072253R1

STUD

PTO safety shield

1шт.

15

CAP, safety PTO

1шт.

751472R1

WASHER

special

3шт.

16

933076R1

SNAP RING,M72, Int

RING, 76.04 mm int ret

1шт.

703971R1

GASKET

PTO oil seal retainer

1шт.
