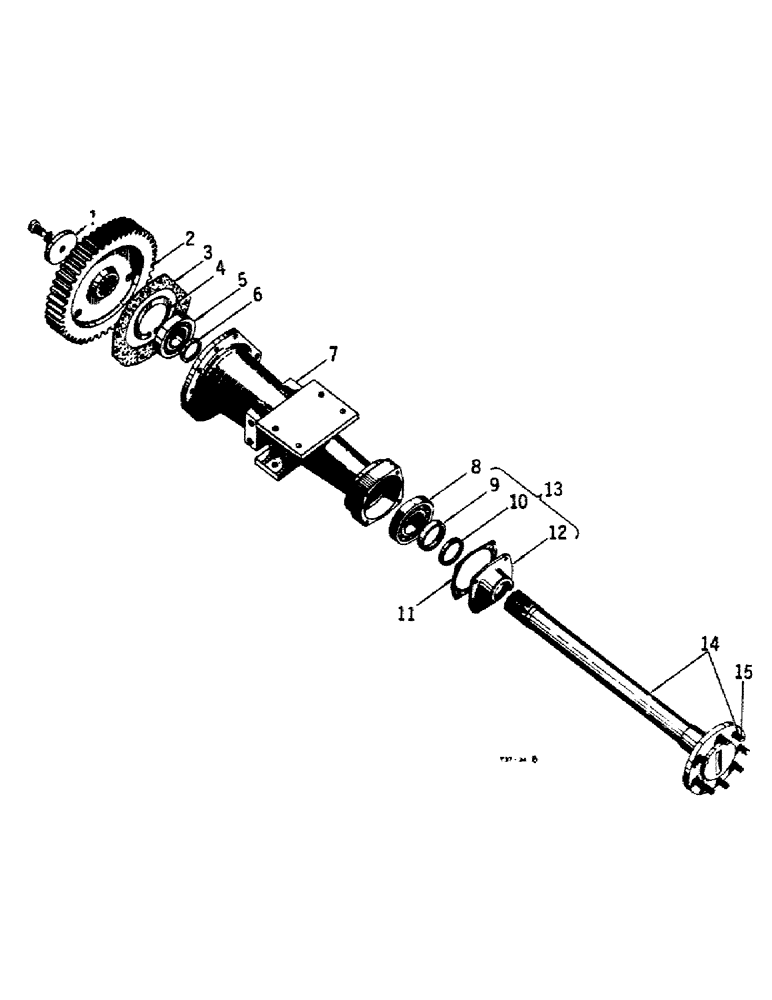

Запчасти Case IH 384 (07-12) - DRIVE TRAIN, REAR AXLE (04) - Drive Train

1

709252R1

WASHER

retaining bull gear

2шт.

271631

HYDRAULIC CYLINDER

BOLT, 3/4 NF x 1-5/8

2шт.

2

3069953R1

GEAR

bull 48T

2шт.

3

703913R3

GASKET,0.79mm Thk

rear axle inner ball

2шт.

4

717027R1

SNAP RING,M130, Int

RING, 136.37 mm int ret

2шт.

5

49530H

BEARING, BALL,60 mm ID x 130 mm OD x 31 mm

BEARING, rear axle inner ball

2шт.

6

3043995R1

COLLAR

rear axle

2шт.

7

3043994R2

CARRIER

rear axle RH

1шт.

7

3043993R2

CARRIER

rear axle LH

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

1/2 x 1-3/8 pln type 5

20шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

20шт.

8

ST219A

BALL BEARING,65 mm ID x 120 mm OD x 23 mm

BEARING, rear axle outer ball

2шт.

9

3069987R91

SEAL

rear axle oil

2шт.

10

703915R1

WASHER,2.56mm ID x 3.13mm OD x 0.25mm Thk

rear axle felt

2шт.

11

711197R1

GASKET

rear axle bearing retaining

2шт.

12

RETAINER, rear axle bearing order 751398R11 or 703914R1

2шт.

13

751398R11

RETAINER

w/seal 703917R92 and washer 703915R1 rear axle bearing

2шт.

13

703914R11

RETAINER

w/seal 703917R92 and washer, 703915R1 rear axle bearing

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

14

3120979R91

AXLE, FRONT

AXLE, rear replaces 3120500R91

2шт.

3047575R2

NUT,Wheel, 5/8"-18

rear wheel

16шт.

15

3047576R2

BOLT

rear wheel hub, serial no. 2096 and below

16шт.

15

404341R3

BOLT,5/8" - 18 x 1.93", Full Thd

BOLT, rear wheel hub, serial no. 2097 and above

16шт.

3042081R1

SHIM

bull gear

1шт.
