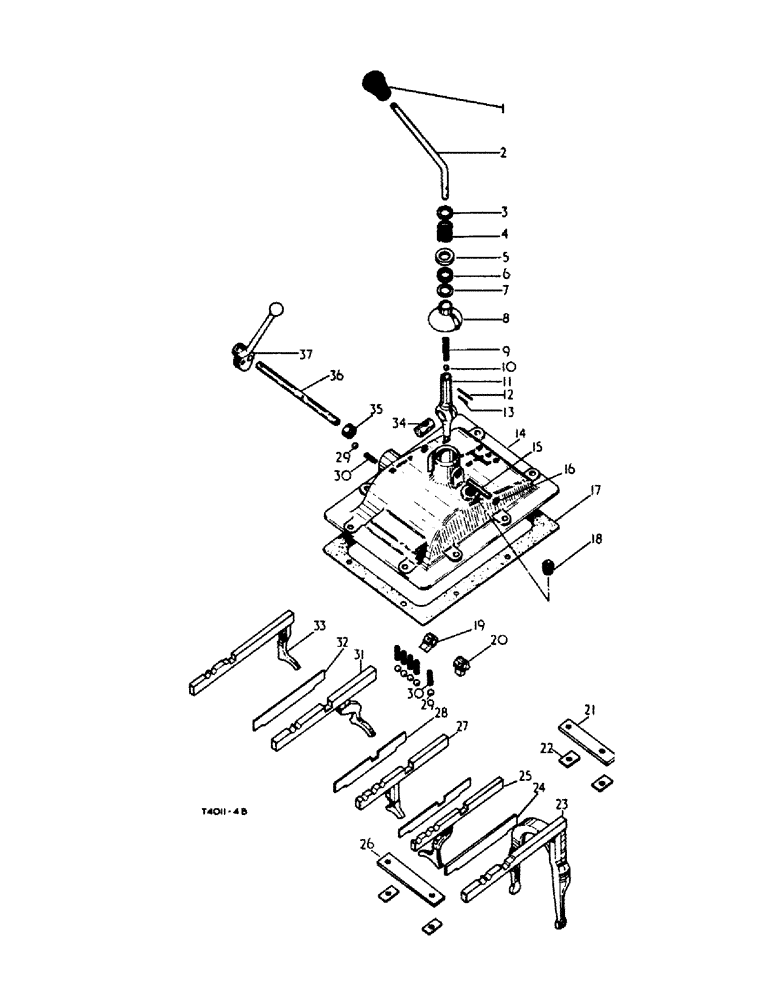

Запчасти Case IH 384 (07-10) - DRIVE TRAIN, GEAR SHIFTER MECHANISM (04) - Drive Train

1

3109443R1

BALL

gear shift lever

1шт.

2

3106910R92

LEVER

gear shift hand

1шт.

3

710953R1

STOP

spring gear shifter lever

1шт.

4

3106665R1

SPRING

gear shifter lever

1шт.

5

34880D

RETAINER

felt washer gear shifter lever

1шт.

6

34879D

WASHER

gear shifter lever felt

1шт.

7

Q113

WASHER

29/32 x 1-3/8 x 16 ga

1шт.

8

712626R1

SHIELD

gear shifter swivel housing

1шт.

9

3068944R1

SPRING

gear shift ball

1шт.

10

17014R1

BALL

7/16 grade 25 metal

1шт.

11

END, gear shifter lever, order 3106910R92

1шт.

12

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

13

17054R1

LOCK PIN,3/16" x 7/8", Slotted

Pin, 3/16" x 7/8", Slotted

1шт.

14

3044047R4

COVER

trans. case front

1шт.

NLS

NO LONGER SERVICED

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

15

3106664R11

SHAFT

gear shifter lever small swivel

1шт.

16

172529

PLUG

gear shifter lever swivel small expansion

1шт.

17

703969R2

GASKET

trans. case cover front

1шт.

18

444595

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG, 3/4-14 znp sq/hd auto pipe

1шт.

19

751090R3

CAM

high low range shifter

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

20

751851R4

CAM

low speed gear shifter

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

21

751085R1

BRACKET

gear shifter fork and guide

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

22

59473DA

LOCK

gear shifter rail guide bolt

4шт.

23

3040867R33

FORK

low speed shifter

1шт.

24

704039R2

GUIDE

gear shifter RH

1шт.

25

751101R23

FORK

1st and reverse speed gear shifter

1шт.

26

3044010R1

GUIDE

BRACKET, gear shifter fork and guide

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

27

751104R93

FORK

2nd and 3rd speed gear shifter

1шт.

28

704038R2

GUIDE

gear shifter rail inner

2шт.

29

17013R1

BALL,13/32" Dia

6шт.

30

3072000R1

SPRING

gear shifter poppet

6шт.

31

751100R13

FORK

4th speed gear shifter

1шт.

32

705926R2

GUIDE

shifter rail LH

1шт.

33

751094R43

FORK

high speed shifter

1шт.

34

3106662R11

SHAFT

shifter lever

1шт.

35

3069986R91

SEAL

high low range shifter shaft oil

1шт.

36

751088R3

SHAFT

high low range shifter

1шт.

37

751089R2

HANDLE

high low range shifter

1шт.

142521

HYD TUBE

Pin, Grooved, 1/4" x 1 1/4", Type A

1шт.
