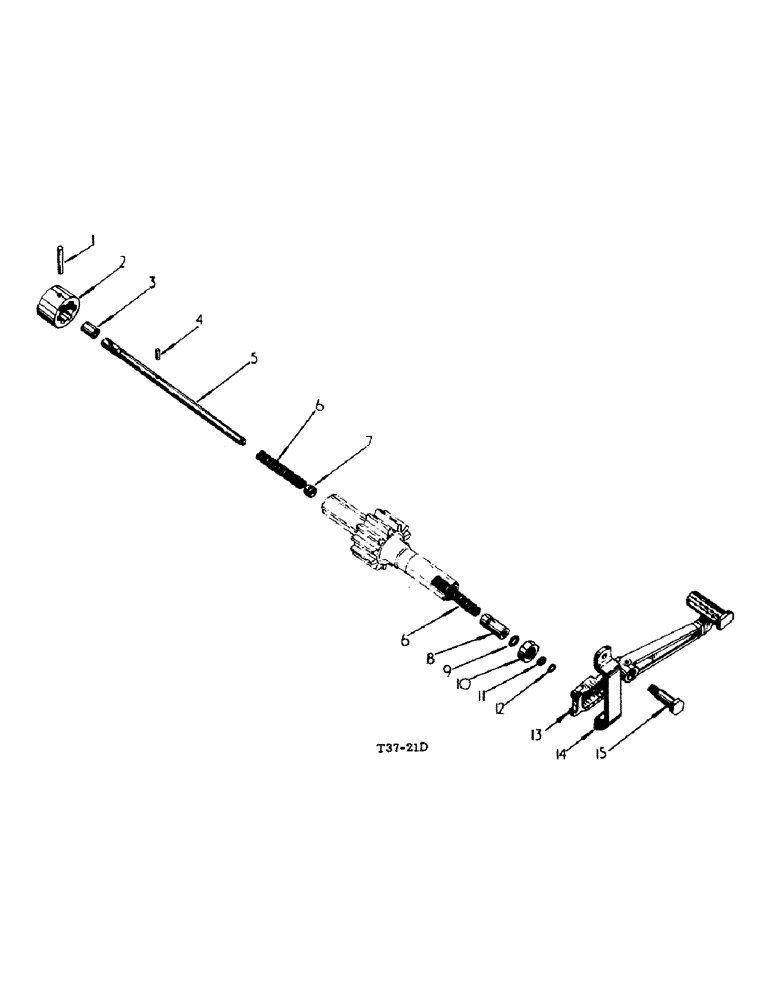

Запчасти Case IH 384 (07-09) - DRIVE TRAIN, DIFFERENTIAL LOCK (04) - Drive Train

1

3111329R1

PIN

groove 5/16 x 2-1/2

1шт.

2

704747R1

CLUTCH

differential lock

1шт.

3

704750R1

TUBE

SPACER, differential lock shaft

1шт.

4

141155

DOWEL,3/16" x 3/4"

PIN, 3/16 x 3/4 dowel

1шт.

5

708997R2

SHAFT

differential lock

1шт.

6

705233R1

SPRING

differential lock

2шт.

7

704749R1

COLLAR

differential lock shaft

1шт.

8

708996R1

RETAINER

o-ring differential lock shaft

1шт.

9

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

inner differential lock shaft

1шт.

10

3066288R91

OIL SEAL

differential lock shaft oil

1шт.

11

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

outer differential lock shaft

1шт.

12

708999R1

RETAINER

RING, retaining

1шт.

13

3070576R21

LEVER

ASSY, differential

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

14

704758R1

LARGE PLATE

PLATE, thrust differential lock lever

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16 x 1-1/4 pln type 5

2шт.

W6652

WASHER

.469 x 1.000 x.054 pln

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

15

704757R1

BOLT

pivot differential lock

1шт.

615167R1

WASHER

25/32 x 1-3/16 x 16GA

2шт.
