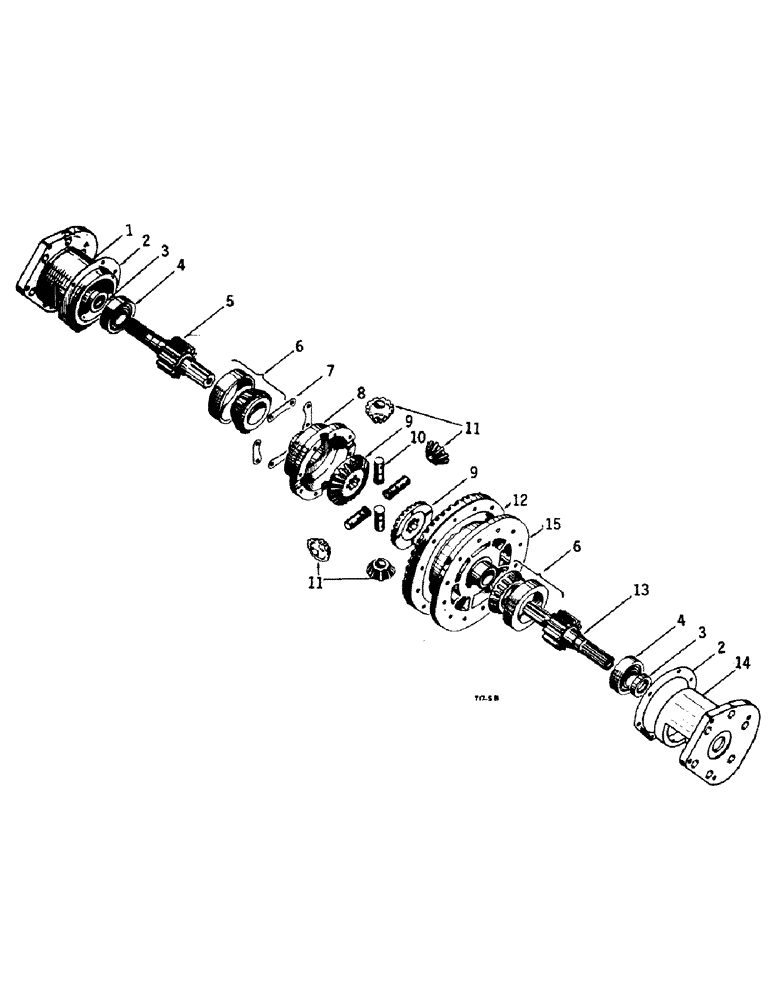

Запчасти Case IH 384 (07-08) - DRIVE TRAIN, DIFFERENTIAL (04) - Drive Train

1

3071401R11

CAGE

bearing bull pinion shaft LH w/oil seal 703908R92

1шт.

3071403R1

BOLT,Hex, 7/16" - 14

bull pinion bearing cage roll pin

5шт.

3071405R1

BOLT,Hex, 7/16" - 14 x 1.50"

roll pin

1шт.

3071404R1

PIN

roll

1шт.

3071406R1

WASHER

roll pin bolt

1шт.

3070558R1

WASHER

bull pinion shaft bearing cage

5шт.

2

3071410R2

SHIM

bull pinion bearing cage, light

1шт.

2

3074409R2

SHIM, bull pinion bearing cage, medium

1шт.

2

3071408R2

SHIM

bull pinion bearing cage, heavy

1шт.

2

3071411R2

SHIM

bull pinion bearing cage, X heavy

1шт.

3

703908R92

OIL SEAL

SEAL, bull pinion shaft oil, optional with

2шт.

3

3043788R91

SEAL

bull pinion shaft oil, optional with

2шт.

3

3069989R91

SEAL

bull pinion shaft oil

2шт.

4

ST203

BEARING, BALL,45mm ID x 100mm OD x 25mm W

BEARING, bull pinion shaft ball

2шт.

5

3069954R1

SHAFT

GEAR, bull pinion shaft ball

2шт.

6

49369H

BEARING

roller differential cone

2шт.

6

17095H

BEARING

differential cup

2шт.

7

70551R1

PLATE, lock

4шт.

8

CASE, differential

1шт.

9

704215R1

GEAR

differential bevel, 24T

2шт.

10

704707R1

AXLE DIFFERENTIAL

SHAFT, differential

1шт.

11

3109649R1

GEAR

differential, 13 teeth

4шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

4шт.

12

GEAR, bevel drive, order packege 3069966R91

1шт.

13

3069955R1

SHAFT

GEAR, bull pinion and brake shaft RH, 13 teeth

1шт.

14

3071402R11

CAGE

bull pinion shaft RH bearing w/oil seal 703908R92

1шт.

3071403R1

BOLT,Hex, 7/16" - 14

bull pinion shaft bearing cage roll pin

5шт.

3071405R1

BOLT,Hex, 7/16" - 14 x 1.50"

roll pin

1шт.

3071404R1

PIN

roll

1шт.

3071406R1

WASHER

roll pin bolt

1шт.

3070558R1

WASHER

bearing cage

1шт.

15

3043998R91

DIFFERENTIAL

CASE, differential, two halves

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

8шт.
