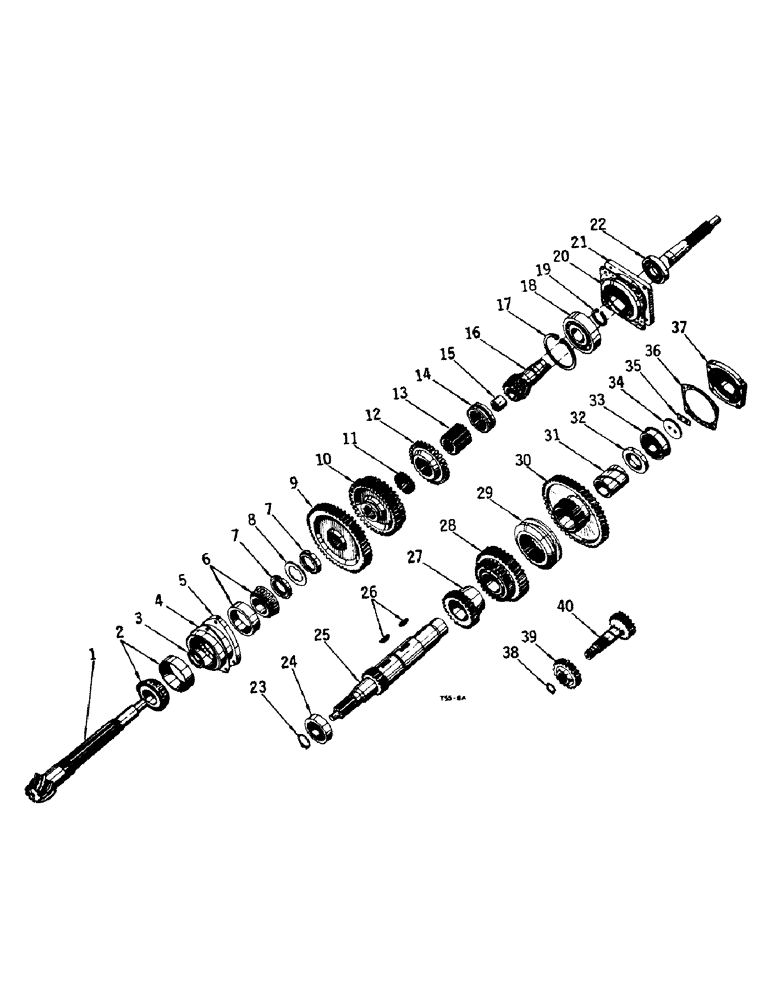

Запчасти Case IH 384 (07-06) - DRIVE TRAIN, TRANSMISSION GEARS AND SHAFTS (04) - Drive Train

1

3069966R91

SHAFT

PACKAGE, trans spline and drive bevel gear

1шт.

2

3049253R91

BEARING

roller taper trans spline shaft rear

1шт.

3

3044037R1

SPACER

trans spline shaft roller bearing

1шт.

3044038R1

SHIM

trans spline shaft taper roller bearing, .002

1шт.

3044040R1

SHIM

trans spline shaft taper roller bearing, .004

1шт.

3044039R1

SHIM

trans spline shaft taper roller bearing, .010

1шт.

4

704008R1

SHIM

trans spline shaft taper bearing cage, heavy

1шт.

4

704009R1

SHIM

trans spline shaft taper bearing cage, medium

1шт.

4

704010R1

SHIM

trans spline shaft taper bearing cage, light

1шт.

4

3041092R1

SHIM

trans spline shaft taper bearing .015

1шт.

5

3044041R1

CAGE

trans spline shaft taper roller bearing

1шт.

186334

BOLT, 1/2NF pln type 5

3шт.

25-118

NUT,1/2"-20, G5

1/2-NF pln type 5

3шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

3шт.

6

3049254R91

BEARING

roller taper tans spline shaft front

1шт.

7

3044035R1

BEARING LOCK NUT

lock trans spline shaft taper roller bearing

2шт.

8

3044036R1

LOCK WASHER

lock trans spline shaft taper roller bearing locknut

1шт.

9

3043990R1

GEAR

sliding 1st and reverse speed, 52T

1шт.

10

751071R1

GEAR

sliding, 2nd and 3rd speed, 44 and 38T

1шт.

11

751073R2

GEAR

coupling 4th and direct speed

1шт.

12

751072R3

SPLINED COUPLING

COUPLING, sliding gear 4th and direct speed, 31T

1шт.

13

3069962R11

GEAR

w/two bearing 3069963R91 sliding quill

1шт.

3070190R91

CASING, BEARING ROLL,Needle, 34.92mm ID x 41.27mm OD x 25.4mm W

needle

2шт.

14

751076R3

COUPLING, BREAK AWAY

COUPLING, sliding gear

1шт.

15

321981R91

NEEDLE BEARING

spline shaft pilot

1шт.

3068278R1

BEARING CUP,1.02" ID x 1.25" OD x 0.1"

pilot bearing

1шт.

16

3069967R1

SHAFT

trans driving

1шт.

17

933374R1

SNAP RING,Int, M100 x 3

RING, 104.96 mm int ret

1шт.

18

ST293

BALL BEARING,45mm ID x 100mm OD x 25mm W

BEARING, trans driving shaft ball

1шт.

19

933283R1

SNAP RING,M45, Ext

RING, 40.72 mm ext ret

1шт.

20

704017R1

GASKET

trans driving shaft bearing cage

1шт.

21

751181R1

CAGE

trans driving shaft bearing

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

751080R91

SEAL

trans driving shaft oil

1шт.

23

933075R1

SNAP RING,M40, Ext

RING, 35.72 mm ext ret

1шт.

24

ST215

BEARING, BALL,40 mm ID x 80 mm OD x 18 mm

BEARING, trans countershaft rear ball

1шт.

25

3043987R1

COUNTERSHAFT

W/1ST SPEED GEAR

1шт.

26

124556

WOODRUFF KEY,#18, 1/4" x 1 1/8", HT

2шт.

27

751054R1

GEAR

driving 2nd speed, 26T

1шт.

28

751055R3

GEAR

driving 3rd and 4th speed 32 and 39 teeth

1шт.

29

3040868R3

SPLINED COUPLING

COUPLING, sliding gear

1шт.

30

3043988R2

GEAR

constant mesh

1шт.

31

751056R1

BUSHING

cast iron

1шт.

32

751059R1

SPACER

countershaft

1шт.

33

ST382

BEARING, BALL

countershaft front

1шт.

34

751120R2

WASHER

retaining trans. coutershaft

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

35

751441R1

SHIM

PLATE, trans. countershaft lock

1шт.

36

751061R1

GASKET

countershaft front ball bearing

1шт.

37

751062R1

RETAINER

countershaft front ball bearing

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

38

515440R1

SNAP RING,#98, Ext

RING, ext. 25 mm

1шт.

3110755R1

WASHER

reverse idler

1шт.

39

3043991R1

GEAR

driving reversible idler, 21T

1шт.

40

3071849R2

SHAFT

AND GEAR, reverse idler

1шт.

3061828R95

COUPLING, BREAK AWAY

PACKAGE, coupling service, consist of

1шт.

3040868R3

SPLINED COUPLING

COUPLING

1шт.

3040867R33

FORK

1шт.

3043988R2

GEAR

1шт.

751655R3

GEAR

1шт.

751073R2

GEAR

1шт.
