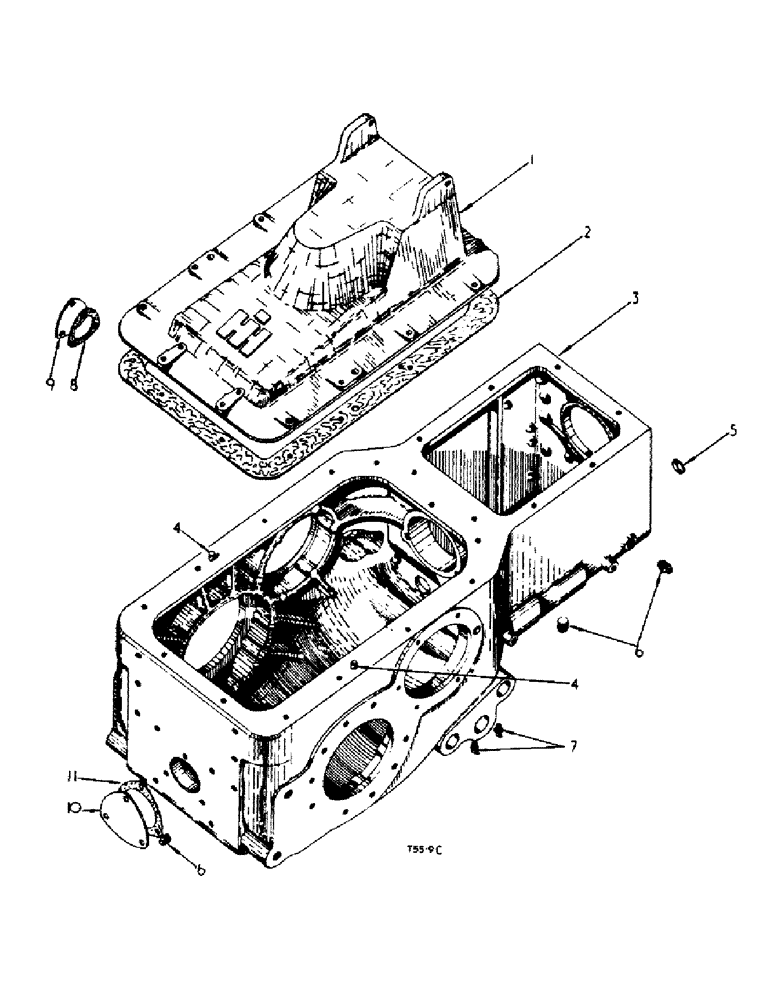

Запчасти Case IH 384 (07-05) - DRIVE TRAIN, TRANSMISSION CASE (04) - Drive Train

1

703968R2

COVER

transmission case rear

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

10шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

2

703967R3

GASKET

transmission case rear cover

1шт.

3

3072135R92

CASE

transmission, standard

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING

2шт.

3072186R91

BUSHING

1шт.

711272R2

BUSHING

1шт.

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

172575

PLUG,Exp, 1 9/16"

1шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG

3шт.

3072136R1

BUSHING

reverse gear front

1шт.

711272R2

BUSHING

reverse gear front

1шт.

4

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

5

172575

PLUG,Exp, 1 9/16"

1-9/16 expansion

1шт.

6

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, Optional with Sq Hd, 1/2"-14 NPTF

3шт.

6

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, pipe 1/2 sq hd, optional with

3шт.

6

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

3шт.

7

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, angle 1/8PT, 90 deg

2шт.

8

3114906R1

GASKET

PTO shifter bracket

1шт.

9

711466R1

PLATE

cover PTO shifter shaft hole

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

10

703972R1

PLATE

PTO shaft opening cover

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

11

703971R1

GASKET

PTO shaft opening cover plate

1шт.
