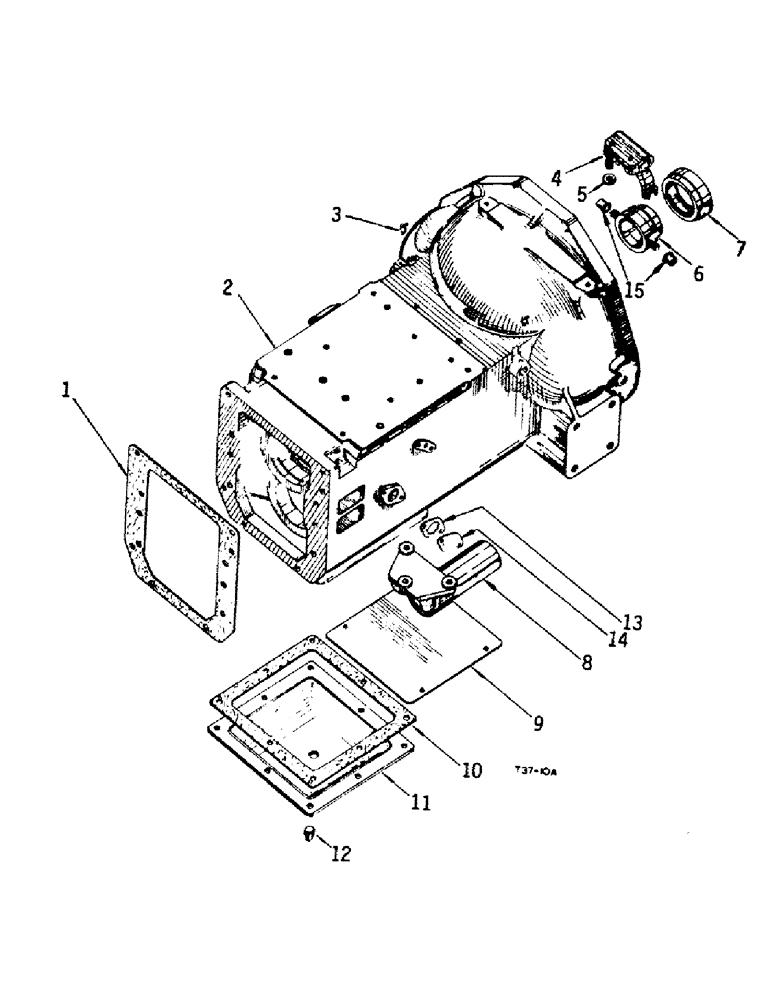

Запчасти Case IH 384 (07-04) - DRIVE TRAIN, CLUTCH HOUSING, CONSTANT RUNNING PTO (04) - Drive Train

1

751124R3

GASKET

clutch housing to trans case

1шт.

2

3125340R91

HOUSING, clutch, replaces 3117753R91

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2 x 1-1/2 pln type 8

8шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-3/4 pln type 8

2шт.

20549R1

BOLT,Hex, 1/2" - 13 x 1 7/8", Gr 8

1/2 x 1-7/8 pln type 8

7шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

17шт.

751443R1

PIN

clutch housing dowel

2шт.

3

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 PTF short 90D lub

2шт.

4

3044005R2

FORK

clutch release

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

clutch housing release fork

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

3047229R1

WASHER

KEY, clutch release

1шт.

6

3070647R1

SLEEVE

clutch release bearing

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

7

ST738

BEARING,69.83mm ID x 103.17mm OD x 21.59mm W

clutch release

1шт.

8

3045087R1

CARRIER

clutch release bearing sleeve

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16 x 1-1/4 pln type 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

9

751125R1

COVER

housing hand hole

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

BOLT, 3/8 x 11/16

4шт.

3068215R1

SEAL

clutch hsg hand hole cover sealing

1шт.

10

751126R1

GASKET

PTO gearbox cover plate

1шт.

11

751127R1

PLATE

PTO gearbox cover

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

12

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2 NPTF pipe-cast iron, optional with

1шт.

12

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe - Malleable Sq Hd, 1/2"-14 NPTF

1шт.

13

751130R1

GASKET

PTO shifter hole cover cover plate, machines fitted single speed PTO

1шт.

14

751131R1

PLATE

cover PTO shifter hole, machines fitted w/single speed PTO

1шт.

179794

BOLT,Hex, 1/4" - 20 x 11/16"

1/4 x 11/16

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

3045088R1

INSERT

clutch release fork bush

2шт.

3112575R3

LEVER

clutch release pedal return

1шт.

179803

BOLT,1/4" - 20 x 1 3/4", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

16558R1

WASHER

.266 x .625 x .036 pln

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
