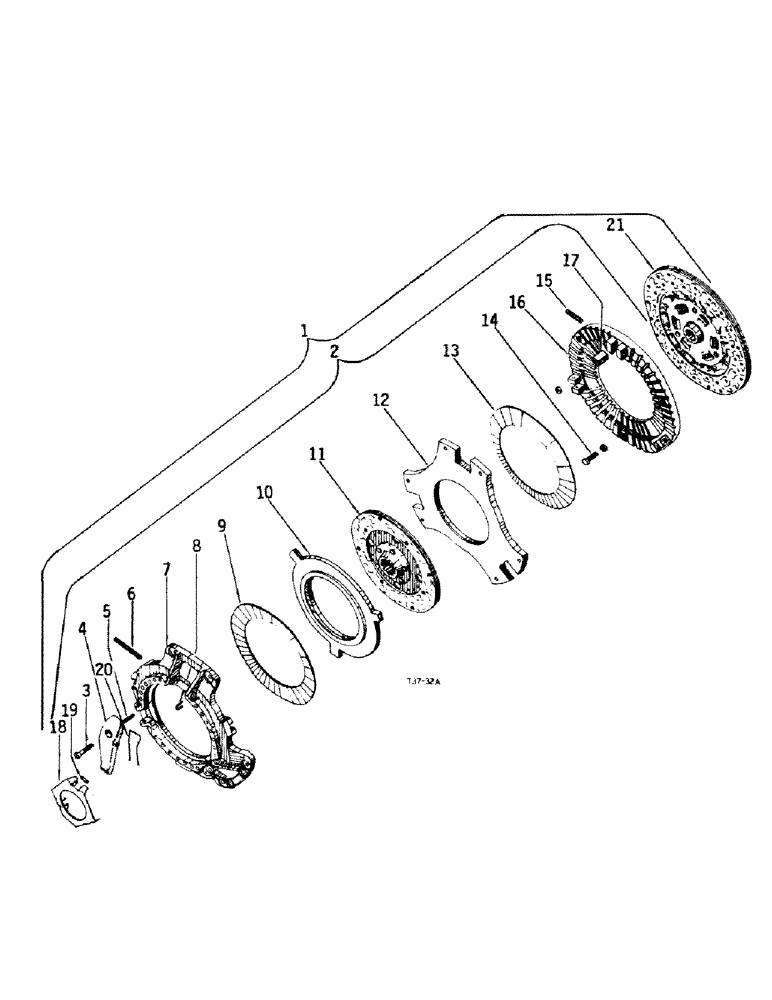

Запчасти Case IH 384 (07-03) - DRIVE TRAIN, DUAL CLUTCH, CONSTANT RUNNING PTO (04) - Drive Train

1

CLUTCH, dual auburn

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

3047747R93

CLUTCH ASSEMBLY

COVER ASSY, clutch

1шт.

3

709651R1

ADJUSTMENT SCREW

adjusting

3шт.

4

709650R1

SET

LEVER, clutch

3шт.

5

709654R1

VALVE SPRING

SPRING, anchor clip

3шт.

6

3047750R1

PIVOT PIN,7.84mm OD x 68.3mm L

PIN, pivot

3шт.

7

709642R2

COVER

1шт.

8

3047600R1

SPRING

hair pin

3шт.

9

3071104R1

SPRING

belleville, 9 inch clutch

1шт.

10

709644R1

PLATE

pressure, 9 inch clutch

1шт.

11

709640R92

CLUTCH & DISC ASSY

PLATE, 9 inch driven assy, 10 teeth

1шт.

3041390R91

FACING

PACKAGE, clutch facing 9 in. service

1шт.

12

709643R1

PLATE

flywheel

1шт.

13

3066669R1

SPRING

belleville, main drive

1шт.

14

709652R1

SET SCREW

set

3шт.

3066671R1

NUT

lock

6шт.

15

709648R1

PIN

rod end

3шт.

16

3066670R1

PLATE

pressure, main drive

1шт.

17

709647R1

END FITTING

END, rod

3шт.

18

3045527R1

RING

release

1шт.

3045529R1

PIN

split

3шт.

19

3045530R1

SLEEVE

1шт.

20

3045528R2

SPRING

1шт.

21

3108790R91

CLUTCH & DISC ASSY

PLATE ASSY, 11 inch driven

1шт.

3071105R91

PACKAGE

clutch facing 11 inch service

1шт.

3071103R91

PLATE

16 teeth

1шт.
