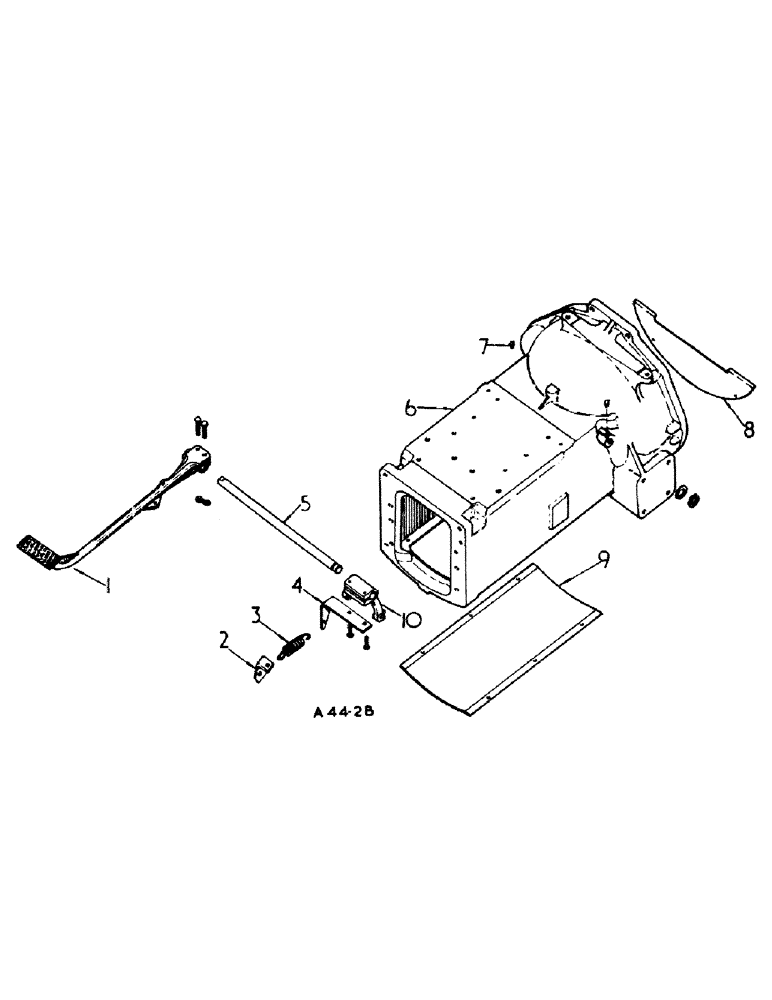

Запчасти Case IH 384 (07-01) - DRIVE TRAIN, CLUTCH HOUSING AND CONNECTIONS (04) - Drive Train

1

751050R2

PEDAL

clutch

1шт.

751399R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Full Thd

clutch pedal

1шт.

181379

BOLT,Hex, 3/8" - 24 x 2", Gr 5

3/8-NF x 2 pln type 5

2шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

751872R1

NUT

3/8-NF

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

49405H

WASHER

clutch pedal spacing

2шт.

2

3114264R1

BRACKET

clutch pedal return spring

1шт.

3114271R1

BOLT,Hex, 5/16" x 1 3/4"

5/16 x 1-3/4

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

4шт.

3

703943R3

SPRING

clutch pedal return

1шт.

4

3114164R1

LEVER

clutch pedal return spring

1шт.

24642R1

BOLT,5/16" x 1 1/4", Gr 8

5/16 x 1-1/4 pln type 8

2шт.

3047229R1

WASHER

KEY, clutch release shaft

1шт.

5

3071270R1

SHAFT

clutch release

1шт.

3109744R1

RETAINER

RING, retaining

1шт.

49405H

WASHER

17/32 x 1-1/4 x 16ga

1шт.

6

3044011R21

HOUSING

clutch w/two fittings, 109462

1шт.

20549R1

BOLT,Hex, 1/2" - 13 x 1 7/8", Gr 8

1/2 x 1-7/8 pln type 8

7шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

1/2 x 1-1/2 pln type 8

8шт.

17158R1

LOCK PIN,1/2" x 1 1/4", Slotted

Pin, 1/2" x 1 1/4", Slotted

2шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

15шт.

7

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 PTF short 90D lub

2шт.

8

703957R11

COVER

clutch housing w/strip 3068216R1

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

3068216R1

SEAL

clutch housing dust cover sealing

1шт.

9

708652R1

COVER

clutch housing hand hole

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

3068214R1

STRIP

dust cover seal

1шт.

10

751049R2

FORK

clutch release

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
