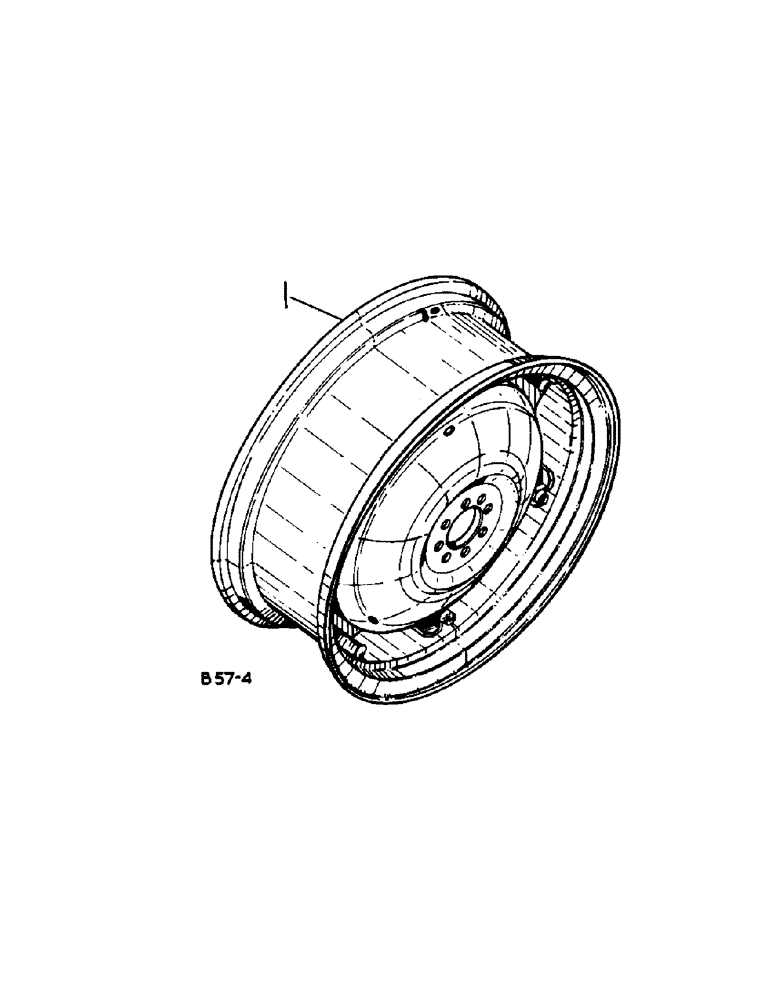

Запчасти Case IH 384 (15-01[1]) - WHEELS AND TRACTION, REAR WHEELS Wheels & Traction

1

3068209R92

RIM

WHEEL ASSY, 12-28 rear

2шт.

3070083R92

WHEEL

RIM, rear wheel

2шт.

3042290R1

DISC

rear wheel

2шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

rear wheel rim mounting

12шт.

406952R1

WASHER

rear wheel rim mounting

12шт.

121358

YOKE

5/8-NF type 5

12шт.

1

3049216R91

RIM

WHEEL ASSY, 12-24 agr. rear

2шт.

3061823R91

RIM

w/lug, rear wheel, optional with

2шт.

3074728R91

RIM

w/lug rear wheel

2шт.

3061824R1

DISC

rear wheel

2шт.

3073908R1

BOLT

rear wheel rim

12шт.

703931R1

WASHER

rear wheel rim bolt

12шт.

425-110

5/8-NF type 5

12шт.

1

3074664R91

WHEEL ASSY

W12-24 agr. rear

2шт.

3074728R91

RIM

W/LUG, rear wheel

2шт.

3074729R1

WHEEL DISC

DISC, rear wheel

2шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

rear wheel mounting

16шт.

406952R1

WASHER

rear wheel mounting bolt

16шт.

121358

YOKE

5/8-NF type 5

16шт.

1

3068210R92

WHEEL ASSY

w/13-28 rear

2шт.

3070084R91

WHEEL

RIM, rear wheel

2шт.

3042290R1

DISC

rear wheel

2шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

rear wheel rim mounting

12шт.

406952R1

WASHER

rear wheel rim mounting

12шт.

425-110

5/8-NF type 5

12шт.
