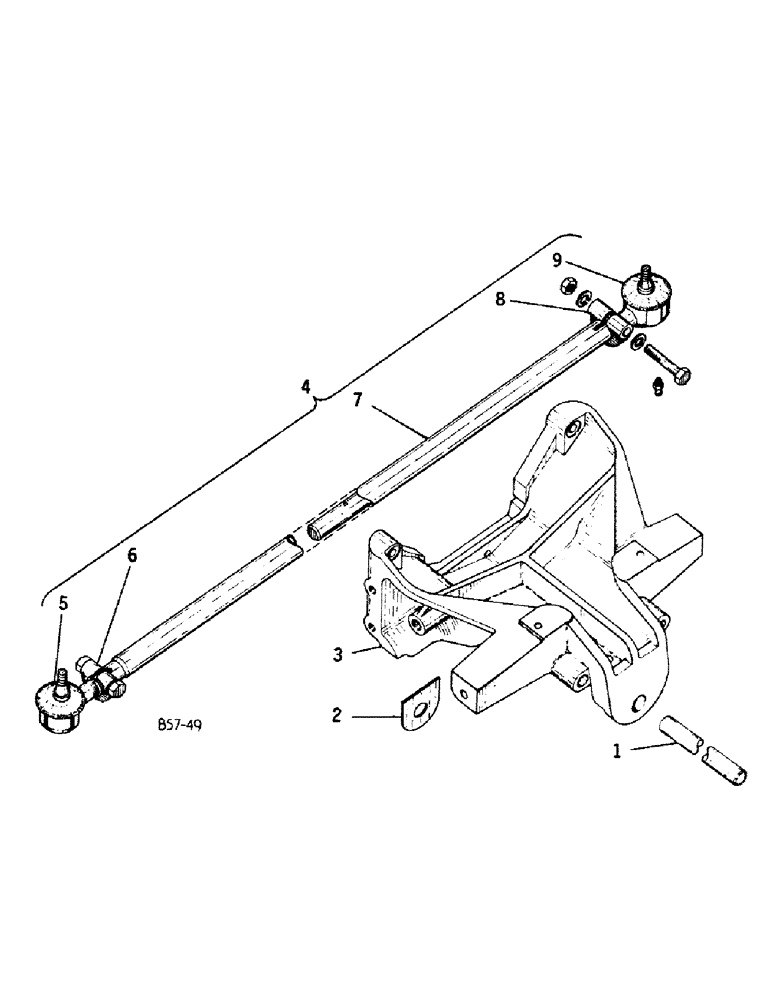

Запчасти Case IH 384 (14-06) - SUSPENSION, FRONT BOLSTER AND TIE ROD Suspension
№
Артикул
Название
Примечание
Количество
1
3043857R1
PIN
front axle pivot
1шт.
186288
BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5
3/8 x 4-1/2 pln type 5
1шт.
102635
NUT,3/8"-16, G5
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
2
706151R2
SHIM
front axle pin sleeve .036
1шт.
2
3044674R1
SHIM
front axle pin sleeve .028
1шт.
2
706152R1
SHIM
front axle sleeve 33 SWG
1шт.
3
3125309R1
SUPPORT
front axle, replaces 3115780R4
1шт.
NLS
NO LONGER SERVICED
5/8 x 3-3/4 pln type 5
1шт.
271566
SUPPORT,Hex, 5/8" - 11 x 3", Gr 5
5/8 x 3 pln type 5
1шт.
413-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5
5/8 x 2-3/4 pln type 5
1шт.
4
3072603R91
ROD
w/fittings, 110146R91, tie, Lockheed, consists of
1шт.
3041061R91
CLIP
1шт.
3041062R91
CLIP
1шт.
3040920R92
BALL JOINT
END, tie rod
1шт.
3040919R92
BALL JOINT
END, tie rod
1шт.
3066606R1
TIE-ROD
ROD, tie
1шт.
4
3072611R91
TIE-ROD
ROD, w/two fittings, 110146R91, tie, Clevedon, consists of
1шт.
3071098R1
CLAMP
1шт.
3071097R91
END
tie rod
1шт.
3071096R91
END
tie rod
1шт.
3072591R91
ROD
TUBE W/CLAMP
1шт.
5
3040920R92
BALL JOINT
END, tie rod, threaded end, Lockheed, consists of
1шт.
3041067R1
BOOT
rubber
1шт.
3041066R1
CLIP
boot
1шт.
425-138
SLOTTED NUT,1/2"-20, G8
NUT, SLOTTED, 1/2"-20, G8
1шт.
103374
COTTER PIN,3/32" x 1"
Pin, Split (Cotter), 3/32" x 1"
1шт.
3042689R1
WASHER
for boot
1шт.
5
3071097R91
END
tie rod threaded end, Clevedon
1шт.
3071112R1
BOOT
1шт.
3071062R1
CLIP
boot
1шт.
425-138
SLOTTED NUT,1/2"-20, G8
NUT, SLOTTED, 1/2"-20, G8
1шт.
103374
COTTER PIN,3/32" x 1"
Pin, Split (Cotter), 3/32" x 1"
1шт.
3071116R1
ROD, tie
1шт.
3071113R1
WASHER, boot
1шт.
6
3041061R91
CLIP
ASSY, for screwed end, Lockheed
1шт.
3042284R1
BOOT, for socket
1шт.
3042282R1
NO LONGER SERVICED
CLIP, for socket
1шт.
3070085R1
NUT
for clip
1шт.
3072286R1
WASHER, spring
1шт.
3072287R1
WASHER
2шт.
7
3066606R1
TIE-ROD
ROD, tie, Lockheed
1шт.
7
3072591R91
ROD
TUBE, w/clamp, Clevedon
1шт.
3071107R1
BOLT, clamp
1шт.
3071101R1
NUT, clamp
1шт.
3071100R1
WASHER, spring
1шт.
8
3041062R91
CLIP
ASSY, for extension rod, consist of
1шт.
3042284R1
BOLT, for socket
1шт.
3042283R1
NO LONGER SERVICED
CLIP, for socket
1шт.
3070085R1
NUT
for clip
1шт.
3042286R1
WASHER, spring
1шт.
3042287R1
WASHER
2шт.
8
3071098R1
CLAMP ASSY, for extension end, Clevedon, consists of
1шт.
3071114R1
CLAMP
1шт.
3071107R1
BOLT, clamp
1шт.
3071101R1
NUT, clamp
1шт.
3071100R1
WASHER, spring
1шт.
9
3071096R91
END
tie rod w/extension, Clevedon, consists of
1шт.
3071112R1
BOOT
1шт.
3071062R1
CLIP
boot
1шт.
425-138
SLOTTED NUT,1/2"-20, G8
NUT, SLOTTED, 1/2"-20, G8
1шт.
103374
COTTER PIN,3/32" x 1"
Pin, Split (Cotter), 3/32" x 1"
1шт.
3071108R1
ROD, tie
1шт.
3071113R1
WASHER, boot
1шт.
9
3040919R92
BALL JOINT
END, tie rod w/extension, Lockheed, consists of
1шт.
3041067R1
BOOT
1шт.
3041066R1
CLIP
boot
1шт.
425-138
SLOTTED NUT,1/2"-20, G8
NUT, SLOTTED, 1/2"-20, G8
1шт.
103374
COTTER PIN,3/32" x 1"
Pin, Split (Cotter), 3/32" x 1"
1шт.
3041689R1
WASHER, for boot
1шт.
Выбрано товаров: 70
