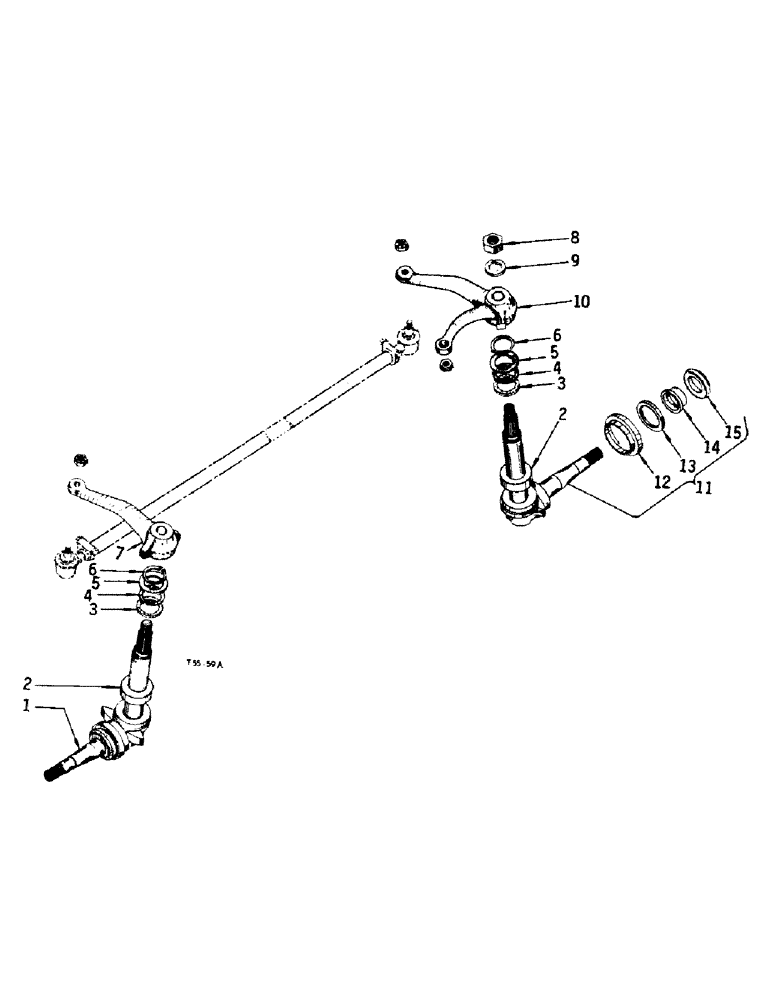

Запчасти Case IH 384 (14-05) - SUSPENSION, STEERING KNUCKLES, POWER STEERING Suspension

1

3043928R93

STEERING KNUCKLE

KNUCKLE ASSY, steering RH, consists of ref nos 12 thru 15

1шт.

2

392671R91

BEARING ASSY,1.639" ID x 2.869" OD x 0.8538"

steering knuckle thrust

2шт.

3

3043931R1

WASHER

felt

1шт.

4

3043932R1

WASHER

steering knuckle pivot

1шт.

5

3043933R1

WASHER

steering knuckle pivot retaining

1шт.

6

3043934R1

CIRCLIP

RING, 41 mm shaft size

1шт.

7

3043936R1

ARM

steering RH

1шт.

8

3043937R1

NUT

1 UNF jam hex

1шт.

9

121326

WASHER,1"

LOCK, 1"

1шт.

10

3043935R1

ARM

steering LH

1шт.

11

3043927R93

STEERING KNUCKLE

KNUCKLE ASSY, LH steering

1шт.

12

48541D

SHIELD

front wheel dust

1шт.

13

50259D

WASHER

WASHER, front wheel felt

1шт.

14

50270D

SPACER

wheel bearing

1шт.

15

48539DA

PACKING RING

SEAL, front wheel oil

2шт.
