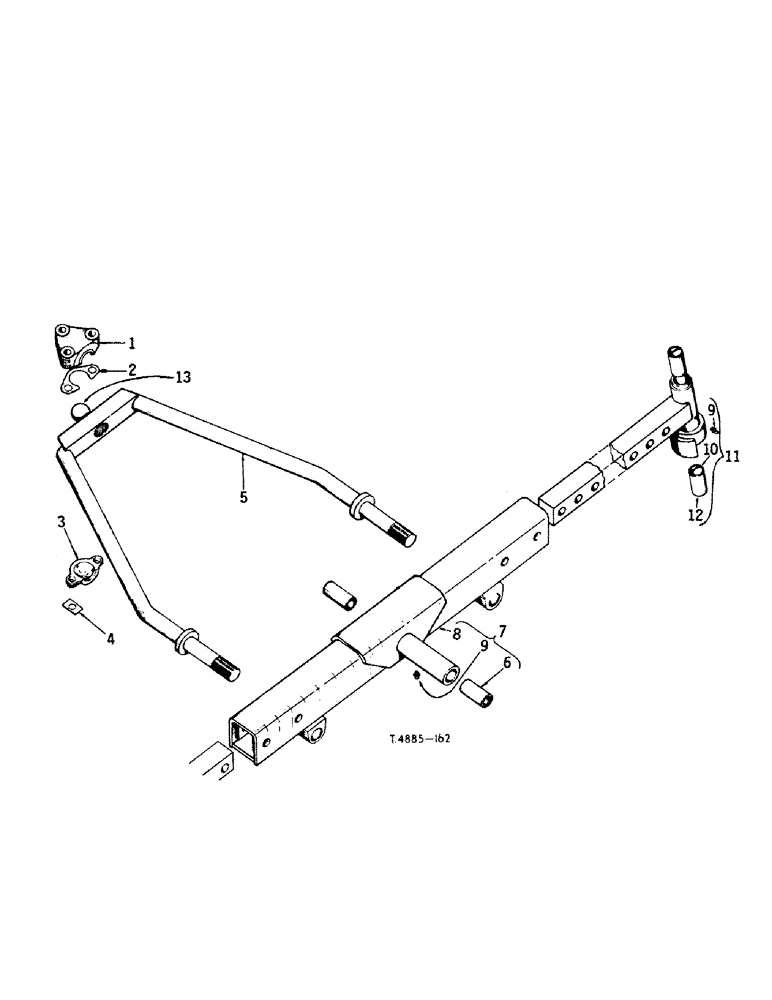

Запчасти Case IH 384 (14-02) - SUSPENSION, FRONT AXLE, EXTENSION AND STAY ROD Suspension

1

3043920R1

CUP

SOCKET, stay rod ball

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

5/8 x 1-3/4 pln type 5

1шт.

271566

SUPPORT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 pln type 5

2шт.

2

842389R1

SHIM

STAY ROD SOCKET CAP

1шт.

3

3109613R1

CAP

stay rod ball socket

1шт.

4

842391R1

PLATE

ball socket lock

3шт.

5

3105073R91

BAR

ROD, stay

1шт.

427370

NUT

1-3/8 NF hex

2шт.

6

3043856R1

BUSHING

pivot pin

2шт.

7

3043916R91

AXLE

ASSY, front

1шт.

8

AXLE, front (NSS)

1шт.

9

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

3шт.

10

751942R1

BUSHING

steering knuckle pivot

4шт.

11

3043921R92

EXTENSION

front axle LH

1шт.

11

3043922R92

EXTENSION

front axle RH

1шт.

12

EXTENSION, front axle LH (NSS)

1шт.

12

EXTENSION, front axle RH, not serviced (NSS)

1шт.

THE BOLTS FOR THE EXTENSION IS PART NO. 3072766R11

1шт.

13

3071538R1

BALL

stay rod

1шт.
