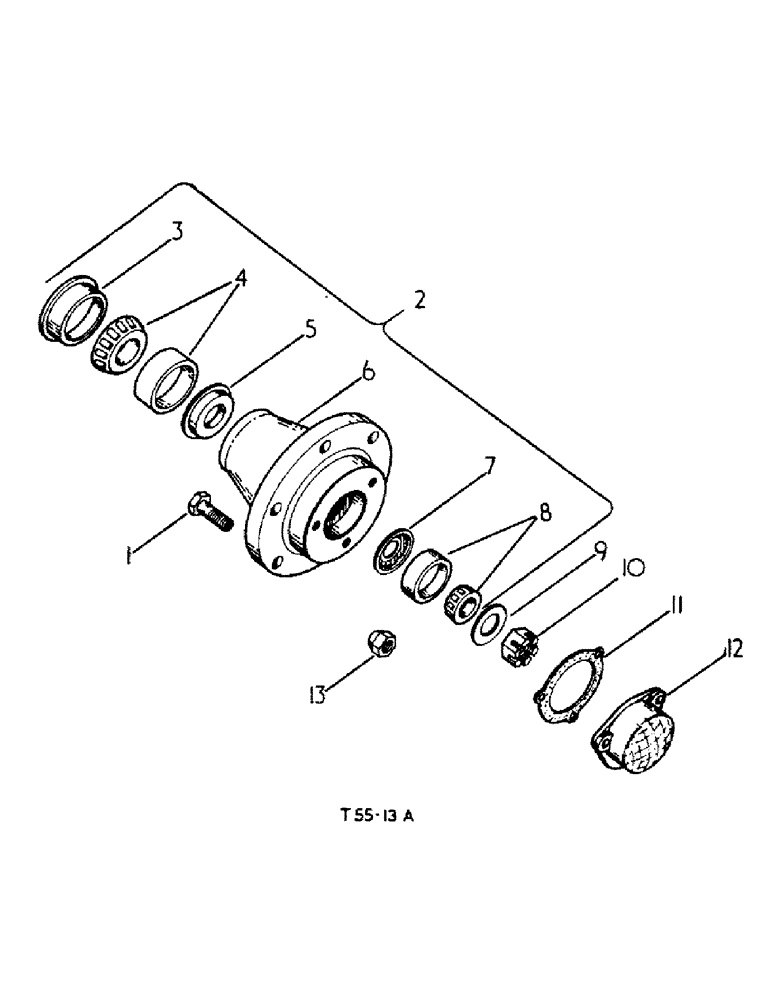

Запчасти Case IH 384 (14-01) - SUSPENSION, FRONT WHEEL HUB Suspension

1

3047573R1

WHEEL BOLT

BOLT, front wheel hub

12шт.

2

3043868R11

HUB

ASSY, front wheel

2шт.

3

48548D

WASHER

front wheel felt washer

2шт.

4

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING, inner cone

2шт.

4

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

2шт.

5

3043869R91

RETAINER

front wheel bearing inner grease

2шт.

6

HUB, front wheel (NSS)

2шт.

7

3043870R1

RETAINER

front wheel bearing outer grease

2шт.

8

392675R91

ROLLER BEARING,28.57mm ID x 19.36mm W

BEARING, outer cone

2шт.

8

392676R1

BEARING, CUP

BEARING, outer cup

2шт.

9

700572R1

WASHER

front wheel outer bearing retainer

2шт.

10

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8 UNF hex sltd

2шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

2шт.

11

703921R1

GASKET

front wheel hub cap

2шт.

12

703922R1

NO LONGER SERVICED

CAP, front wheel hub cap, optional with

2шт.

12

704021R1

CAP

front wheel hub

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

6шт.

13

483879R1

NUT

front wheel hub bolt

12шт.
