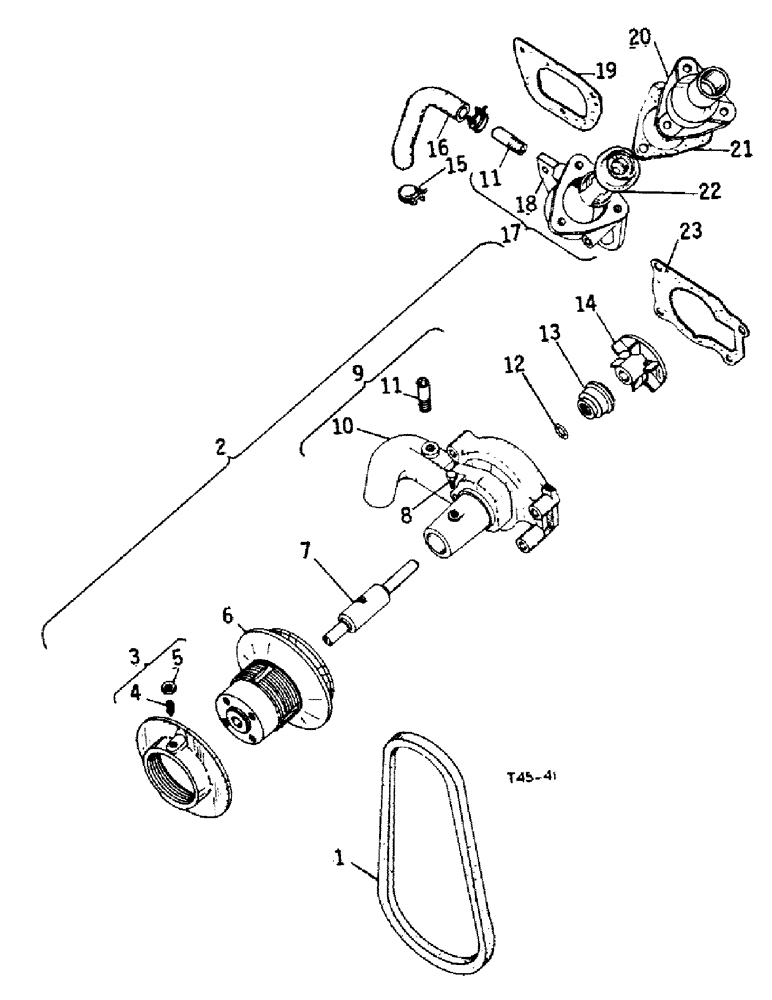

Запчасти Case IH 384 (12-25) - POWER, WATER PUMP AND THERMOSTAT HOUSING Power

1

709502R1

BELT

BELT, Fan

1шт.

1

3060464R1

BELT,0.66" W

Fan, Service Only 0.66" W

1шт.

2

3119778R92

PUMP

ASSY, water

1шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

703825R11

FLANGE

ASSY, water pump pulley

1шт.

4

102831

SCREW

5/16 z 7/8 set, dgpt hdls

1шт.

5

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

6

3119779R1

HUB

water pump pulley

1шт.

7

3124006R91

BEARING ASSY,1.1811" OD x 2.248"

water pump spindle

1шт.

8

(Not used this application)

1шт.

9

704216R51

BODY

ASSY, water pump

1шт.

10

704216R5

BODY, water pump

1шт.

11

3065123R1

TUBE

thermostat by-pass connection

2шт.

12

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

1шт.

13

703822R92

SEAL

water pump

1шт.

14

709909R2

TURBINE

IMPELLER, water pump

1шт.

15

3074617R1

CLAMP

CLIP, by-pass hose thermostat

2шт.

16

3065127R1

HOSE,5.20", SAE 20R4 CLASS SC

5.20", SAE 20R4, Class SC, Thermostat By-Pass

1шт.

17

3069642R11

HOUSING

W/TUBE 3065123R1

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

18

HOUSING, thermostat (NSS)

1шт.

19

703815R1

GASKET

thermostat housing

1шт.

20

3065126R1

COVER

thermostat housing

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

21

3065125R1

GASKET

thermostat housing cover

1шт.

22

3042303R92

THERMOSTAT

170deg F, 199deg F

1шт.

23

703816R1

GASKET

water pump

1шт.

444691

PLUG

1/4 sltd., headless pipe

1шт.

3106564R92

KNOB

PACKAGE, short, water pump service, consists of ref nos 7, 12, 13, 14, 23

1шт.

3119780R92

SERVICE KIT

PACKAGE, water pump service, consists of ref nos 3, 6 thru 9, 12, 13, 14 & pkg 3106564R92

1шт.
