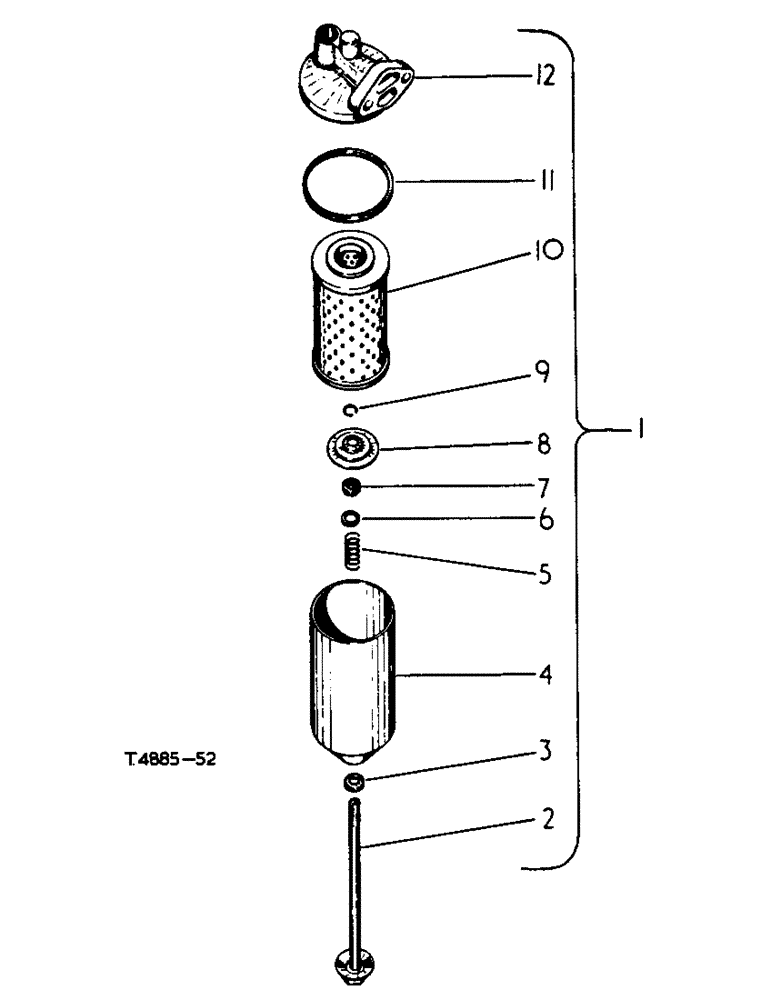

Запчасти Case IH 384 (12-23) - POWER, LUBRICATING OIL FILTER, TECALEMIT Power

1

3042420R92

FILTER

ASSY, oil tecalemit

1шт.

A spin-on filter is not available.

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

3069976R91

BOLT

ASSY, centre

1шт.

3

3042425R1

WASHER

centre bolt sealing

1шт.

4

3043289R1

BODY

CONTAINER

1шт.

5

3043291R1

SPRING

pressure plate

1шт.

6

3043292R1

WASHER

pressure plate spring

1шт.

7

3042428R1

WASHER

felt

1шт.

8

3043293R91

LARGE PLATE

PLATE ASSY, pressure

1шт.

9

3065965R1

RING

centre bolt

1шт.

10

3043283R92

INSERT

PACKAGE, element service, with plate 3043315R1, ring 3042423R1 and ring 707859R1 optional with 3110452R91

1шт.

10

3066852R91

FILTER, ELEMENT

PACKAGE, element w/seal 707859R1 and 3 seal 3067730R91

1шт.

10

3110452R91

ENGINE OIL FILTER

ELEMENT ASSY, w/seal 3067728R91 and seal 707859R1

1шт.

3043315R1

PLATE

adaptor

2шт.

11

3042423R1

SEALING WASHER

RING, sealing

1шт.

12

3069975R91

HEAD

ASSY, filter

1шт.

706592R2

GASKET

oil filter base

1шт.
