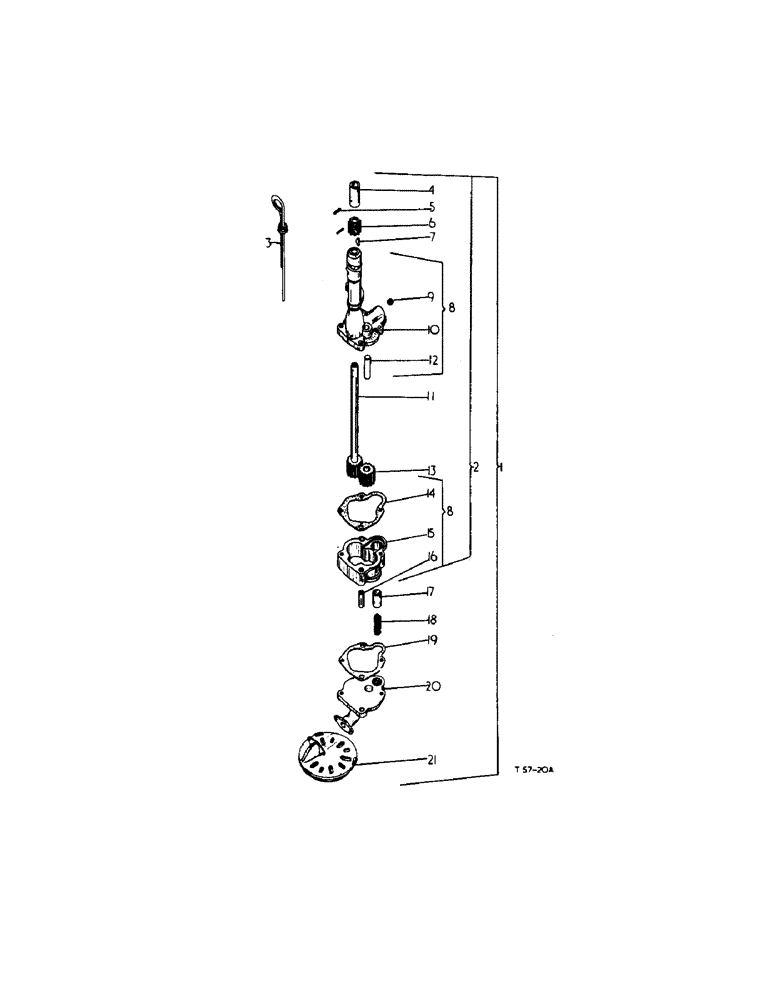

Запчасти Case IH 384 (12-22) - POWER, LUBRICATION SYSTEM Power

1

3064060R91

PUMP

ASSY, oil

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

1шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

2

3043132R93

BODY

ASSY, oil pump

1шт.

3

706977R91

DIPSTICK

GAUGE, oil level

1шт.

(P/N 706977R91) - includes rubber seal in cap. seal # is 1082243R2, but is NSS.

1шт.

4

3042479R1

COUPLING, BREAK AWAY

COUPLING, hourmeter drive

1шт.

5

932204R1

LOCK PIN,M3 x 20, Slotted

PIN, roll, 3mm dia. x 20mm long

2шт.

6

704107R1

GEAR

oil pump drive

1шт.

7

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

2шт.

8

3042570R92

CASE

BODY ASSY, oil pump

1шт.

9

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

10

BODY, oil pump (NSS)

1шт.

11

3042572R91

SHAFT

oil pump drive

1шт.

12

SHAFT, oil pump roller (NSS)

1шт.

13

3063757R1

GEAR

oil pump body idler

1шт.

14

706628R1

GASKET

oil pump body

1шт.

15

CASE, oil pump gear (NSS)

1шт.

16

932205R1

LOCK PIN,M10 x 40, Slotted

PIN, roll, 10mm dia x 40mm long

2шт.

17

751830R2

VALVE

BALL, oil pressure regulating valve

1шт.

18

751829R1

SPRING

oil pressure regulating valve

1шт.

19

711558R1

GASKET

oil pump gear

1шт.

20

3064061R1

COVER

oil pump

1шт.

179826

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

21

3064062R91

FILTER SCREEN

SCREEN ASSY, oil pump

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
