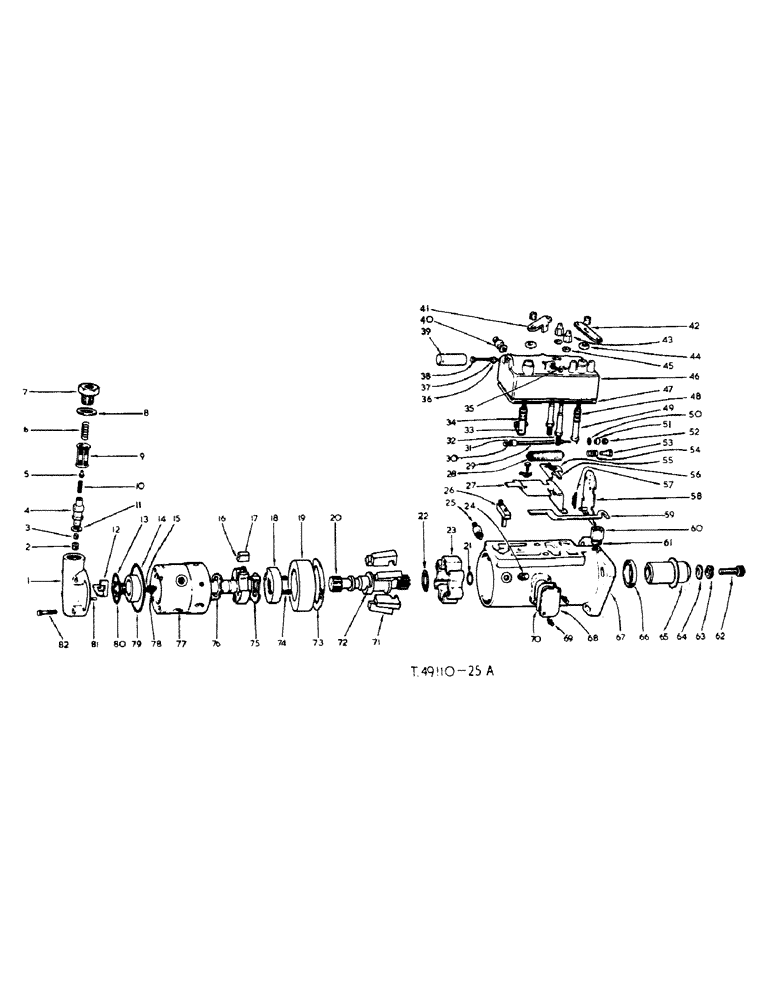

Запчасти Case IH 384 (12-20) - POWER, D.P.A. FUEL INJECTION PUMP Power

3114210R92

PUMP

fuel injection

1шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

3шт.

1

3110089R91

PLATE

end, clockwise rotation

1шт.

2

795945R1

SPRING

piston retaining

1шт.

3

795946R1

PISTON

regulating

1шт.

4

3124046R91

PLATE

SLEEVE, end plate and piston

1шт.

5

3078620R1

PLUG

regulating

1шт.

6

795952R1

SPRING

retaining sleeve

1шт.

7

3043083R1

CONNECTOR, ELEC

CONNECTOR, inlet

1шт.

8

3111081R1

WASHER

inlet

1шт.

9

3043084R1

FILTER

1шт.

10

3072495R1

SPRING

regulating

1шт.

11

795948R1

WASHER

sleeve

1шт.

12

3043086R1

BLADE

transfer pump

2шт.

13

3069749R1

RING

SEAL, transfer

1шт.

14

795965R1

RING

SEAL, distributor hed

1шт.

15

795963R1

SCREW, plugging

1шт.

16

795977R1

NO LONGER SERVICED

SHOE, roller

2шт.

17

795976R1

ROLLER

2шт.

18

795979R1

PLATE

drive

1шт.

19

3072513R1

RING

cam

1шт.

3072514R1

SCREW

cam locating

1шт.

20

3078638R1

SHAFT

drive

1шт.

21

384786R1

RING

SEAL, drive shaft

1шт.

22

3110449R1

WASHER

thrust, optional with

1шт.

22

895950H1

THRUST WASHER

thrust

1шт.

23

384762R1

RETAINER

weights

1шт.

24

795970R1

BOLT,Locking, 5/16" - 24 x 1/2"

SCREW, head locking

1шт.

3111081R1

WASHER

1шт.

25

796048R91

SCREW,Lock

ASSY, head vent

1шт.

3069751R1

SCREW

FUEL PUMP CURRENTLY BEING FURNISHED WILL WORK ONLY IN APPLICATIONS WHERE THERE IS NOT A POWER STEERING PUMP OR AN UNDERSLUNG MUFFLER. FOR THESE APPLICATIONS, DEALER MUST REPAIR THE OLD PUMP AS SHOWN IN THE PARTS CATALOG

1шт.

3069752R1

SCREW

vent

1шт.

3043089R1

WASHER

head vent

1шт.

26

384788R1

VALVE

metering

1шт.

26

384789R1

VALVE

metering, oversize

1шт.

27

BRACKET, control, order 3237241R91 kit

1шт.

384777R1

SCREW

bracket

1шт.

3109745R1

WASHER

tab

1шт.

28

3072523R1

SPRING

governor

1шт.

29

3237239R1

LINK

KIT, linkage spring

1шт.

30

HOOK, linkage, order 3237239R1 kit

1шт.

31

RETAINER, order 3237239R1 kit

1шт.

32

384779R1

STUD

control cover

2шт.

33

384794R1

SHAFT

throttle

1шт.

3105138R1

NUT

1шт.

705380R1

WASHER, shakeproof

1шт.

3043105R1

WASHER

1шт.

34

796020R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

SEAL

2шт.

35

3105139R1

WASHER

2шт.

36

(Not used)

1шт.

37

3105138R1

NUT

screw

3шт.

38

3043097R1

ADJUSTMENT SCREW,M10 x 32 x 35mm

SCREW, adjusting

2шт.

39

3064263R1

SLEEVE

locking

1шт.

40

3069753R91

SCREW

ASSY, vent

1шт.

3069751R1

SCREW

vent body

1шт.

3069752R1

SCREW

vent

1шт.

3043100R1

WASHER

vent body

1шт.

41

3043104R1

ARM

throttle

1шт.

42

3043103R1

LEVER

shut-off

1шт.

43

3043101R1

NUT

stud

2шт.

44

384792R1

CAP, dust

2шт.

45

3043102R1

SEALING WASHER

stud

2шт.

46

3072525R1

COVER

control

1шт.

47

384771R1

GASKET

housing

1шт.

48

796020R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

SEAL

2шт.

49

384891R1

CLAMP

SHAFT, shut-off

1шт.

3105138R1

NUT

1шт.

705380R1

WASHER

1шт.

50

WASHER, linkage, order 3237239R1 kit

1шт.

51

WASHER, pivot ball washer, order 3237239R1 kit

1шт.

52

NUT, linkage, order 323729R1 kit

1шт.

53

384796R1

GUIDE

idling spring

1шт.

54

3072524R1

SPRING

idling

1шт.

55

384775R1

WASHER

tab

1шт.

56

384774R1

PLATE

keep

1шт.

57

384773R1

SPRING

governor arm

1шт.

58

3237241R91

ARM, governor and bracket

1шт.

59

895981H1

BAR

shut-off

1шт.

60

3043107R1

CONNECTOR, ELEC

CONNECTOR, drain

1шт.

61

3043093R1

WASHER

drain connection

1шт.

62

895956H1

DRIVE SCREW

drive shaft

1шт.

63

384767R1

SPRING WASHER

spring

1шт.

64

384768R1

WASHER

support

1шт.

65

384769R1

HUB

drive

1шт.

66

384770R91

SEAL

drive hub

1шт.

67

3072522R1

HOUSING

pump

1шт.

68

3043109R1

PLATE

cover

1шт.

69

3043111R1

SCREW

cover plate

2шт.

705380R1

WASHER, shakeproof

2шт.

70

3043110R1

GASKET

cover plate

1шт.

71

3078634R1

WEIGHT

governor

6шт.

72

3072517R2

SLEEVE

thrust

1шт.

73

RING, timing

1шт.

74

795980R1

DRIVE SCREW,12 Pt Serr Flg, 5/16" - 24 x 25.50mm

drive plate

2шт.

75

3237244R1

LOCKING PLATE

PLATE, adjusting top and bottom

1шт.

76

PLATE, adjusting bottom, order plate, 3237244R1

1шт.

77

3072496R1

HEAD

AND ROTOR ASSY

1шт.

78

795964R1

WASHER

screw

1шт.

79

795960R1

SLEEVE

BUSHING, transfer pump liner -A-

1шт.

80

384754R1

ROTOR

transfer pump

1шт.

81

795943R1

PIN

locating

1шт.

82

796231R1

SCREW

end plate

4шт.

795966R1

BOLT

long screw banjo

2шт.

3043091R1

BOLT

short screw banjo

1шт.

3043094R1

CONNECTOR, ELEC

CONNECTOR, radial

1шт.

3025562R1

NUT, delievery union

4шт.

3072497R1

SCREW

head locating

1шт.

3043090R1

STUD

fuel connection

3шт.

3043093R1

WASHER

connection

7шт.

3072498R1

WASHER

locating screw

1шт.

3025563R1

WASHER

delivery union

4шт.

384804R91

PACKAGE

gasket

1шт.
