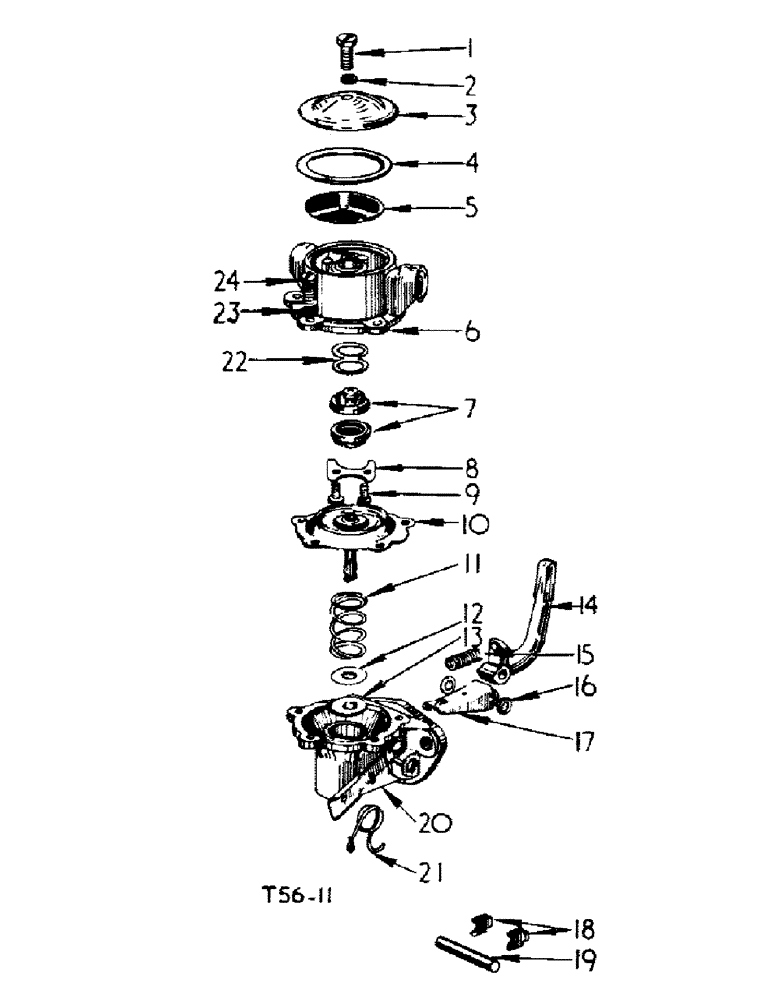

Запчасти Case IH 384 (12-19) - POWER, FUEL FEED PUMP Power

708294R93

PUMP

fuel feed, FUEL PUMP CURRENTLY BEING FURNISHED WILL WORK ONLY IN APPLICATIONS WHERE THERE IS NOT A POWER STEERING PUMP OR AN UNDERSLUNG MUFFLER. FOR THESE APPLICATIONS, DEALER MUST REPAIR THE OLD PUMP AS SHOWN IN THE PARTS CATALOG

1шт.

3063872R1

BOLT

5/16 x 3/4 12PT ring

2шт.

1

702953R1

SCREW

filter cover

1шт.

2

3044511R1

GASKET

filter cover screw

1шт.

3

3044512R1

COVER

filter

1шт.

4

3044518R1

GASKET

filter cover end

1шт.

5

3044513R1

FILTER SCREEN

SCREEN

1шт.

6

3105122R91

COVER

ASSY

1шт.

7

702959R91

VALVE

ASSY

2шт.

8

702960R1

RETAINER

valve

1шт.

9

702961R1

SCREW

2шт.

10

3066607R91

DIAPHRAGM

ASSY

1шт.

11

708954R1

SPRING

diaphragm

1шт.

12

3072671R1

WASHER

oil seal

1шт.

13

3072672R1

SEALING WASHER

oil

1шт.

14

3044517R1

ARM

rocker

1шт.

15

708956R1

SPRING

rocker arm

1шт.

16

708957R1

WASHER

rocker arm pin

2шт.

17

708963R1

LINK

1шт.

18

3044516R1

RETAINER

rocker arm pin

2шт.

19

3044515R1

PIN

rocker arm

1шт.

20

3044519R91

COVER ASSY

BODY AND HAND PRIMER ASSY

1шт.

21

3044520R1

SPRING

priming lever

1шт.

22

3065032R1

GASKET, valve

1шт.

23

(Not used)

1шт.

24

132105

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

cover sltd fill hd no. 10 UNF x 3/8

5шт.

3066610R92

KIT

repair, less rocker arms

1шт.

3066540R91

STRIPPER PACKAGE

KIT, first aind repair, BD-17

1шт.

3044458R91

SPRING

SET, primer parts

1шт.

3043370R1

GASKET

feed pump

1шт.

3061658R1

GASKET

feed pump

1шт.

FUEL PUMP CURRENTLY BEING FURNISHED WILL WORK ONLY IN APPLICATIONS WHERE THERE IS NOT A POWER STEERING PUMP OR AN UNDERSLUNG MUFFLER. FOR THESE APPLICATIONS, DEALER MUST REPAIR THE OLD PUMP AS SHOWN IN THE PARTS CATALOG

1шт.
