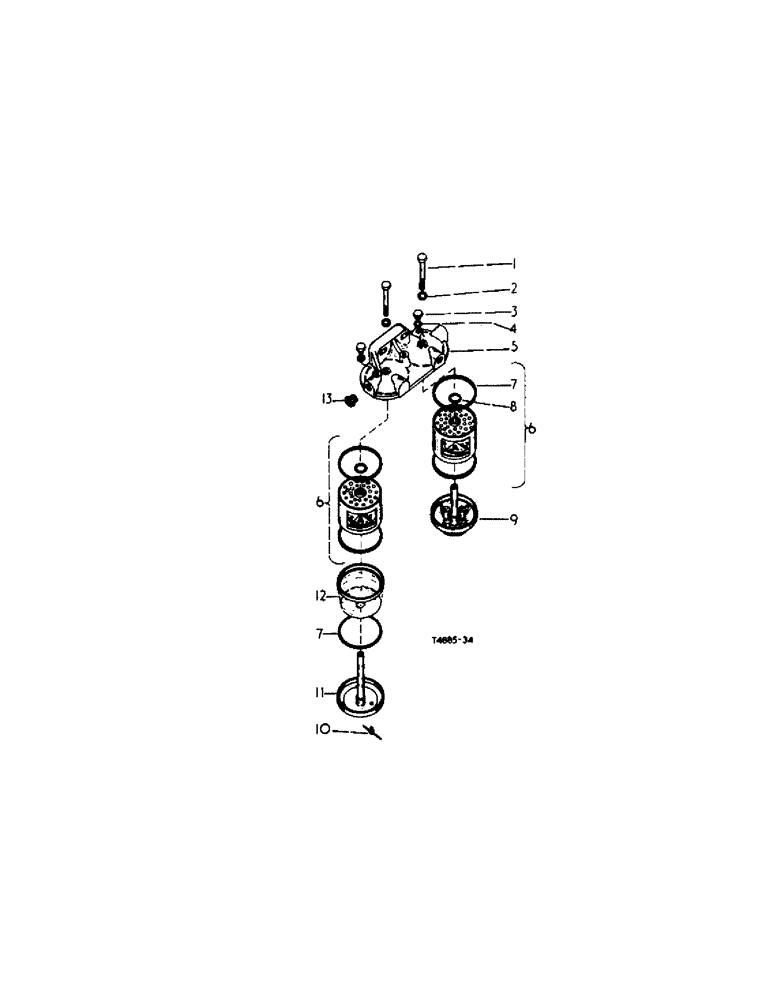

Запчасти Case IH 384 (12-18[1]) - POWER, FUEL FILTER AGGLOMERATOR, TWIN BOWL Power

3069608R92

FILTER

agglomerator fuel

1шт.

1

3070771R2

BOLT

center (Replaces 3077771R2)

2шт.

2

(Not serviced)

1шт.

3

3070770R1

PLUG

small vent

3шт.

4

3049111R1

SEALING WASHER

vent plug

3шт.

5

3117034R91

HEAD

COVER

1шт.

6

3004506R93

ELEMENT ASSY

2шт.

7

3105001R1

SEAL

WASHER, cover and base

4шт.

8

3044505R1

SEAL

RING, element seal

2шт.

9

3117037R91

BASE

filter

1шт.

10

3117038R91

PLUG

SCREW THUMB AND WASHER

2шт.

3117039R1

SEALING WASHER

2шт.

11

3117037R91

BASE

ASSY

1шт.

12

BOWL (NSS)

1шт.

13

(Not used)

1шт.
