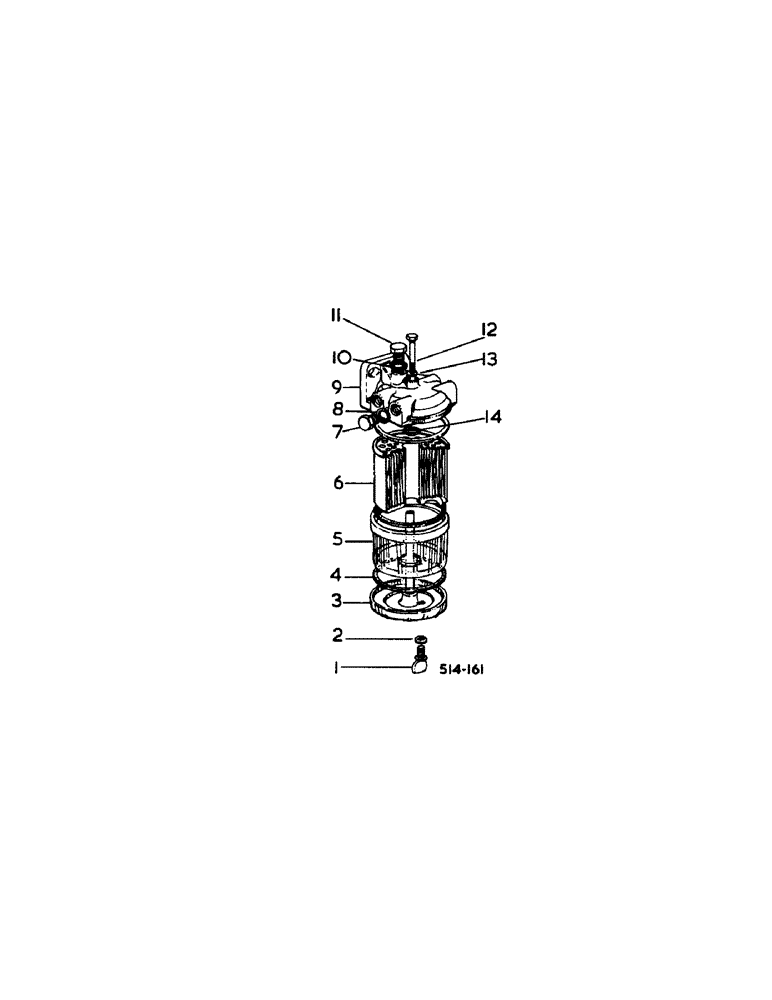

Запчасти Case IH 384 (12-17[1]) - POWER, FUEL FILTER AGGLOMERATOR, SINGLE BOWL Power

3069607R92

FILTER

ASSY, fuel

1шт.

1

3117038R91

PLUG

drain

1шт.

2

3117039R1

SEALING WASHER

drain plug

1шт.

3

3078688R91

COVER

BASE, filter assy w/stud

1шт.

4

3105001R1

SEAL

cover and base

1шт.

5

3069610R1

BOWL

glass

1шт.

6

3044506R93

FILTER, FUEL

ELEMENT, filter package

1шт.

7

(Not serviced)

1шт.

8

(Not serviced)

1шт.

9

3117036R91

HEAD

COVER, filter

1шт.

10

(Not used)

1шт.

12

3070771R2

BOLT

centre

1шт.

13

(Not used)

1шт.

14

3044505R1

SEAL

RING, seal element

1шт.
