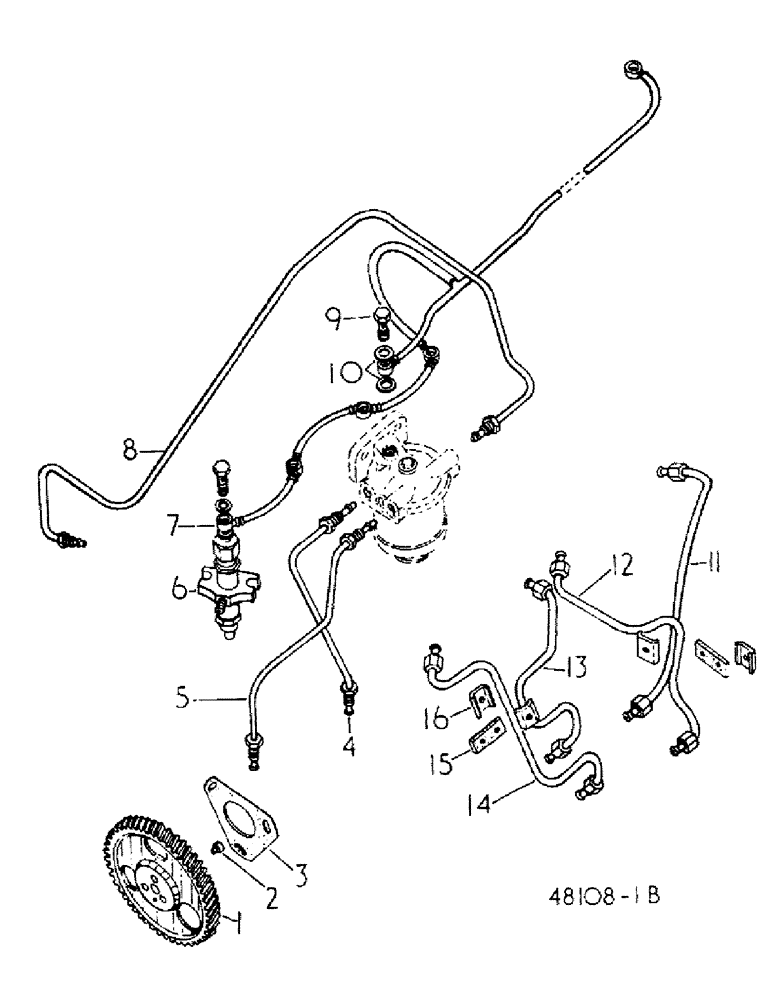

Запчасти Case IH 384 (12-16) - POWER, FUEL INJECTION SYSTEM Power

1

708290R11

GEAR

W/PIN 708291R1, injection pump

1шт.

425463

SCREW,Hex Hd, 5/16"-24 x 3/4", w/LW

5/16NF x 3/4 pln h/hd L/W mach

3шт.

2

708291R1

DOWEL

PIN, dowel

1шт.

3

708289R2

GASKET

injection pump

1шт.

4

3043650R94

PIPE

fuel filter to injection pump

1шт.

796226R1

SLEEVE

RING, packing

1шт.

5

3043651R92

PIPE

excess fuel

1шт.

796226R1

SLEEVE

RING, packing

1шт.

6

3040870R94

NOZZLE CAP

NOZZLE AND HOLDER ASSY, injection, see detail list

4шт.

103026

NUT,3/8"-24, G5

8шт.

706077R1

WASHER

8шт.

7

3112580R91

PIPE

fuel spill

1шт.

8

3043649R95

PIPE

fuel, fuel, Serial Range: pump-filter

1шт.

796226R1

SLEEVE

RING, packing

1шт.

3043655R1

CLIP

fuel pipe

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

3138812R1

SCREW

connection

1шт.

10

701735R1

WASHER

2шт.

11

708310R21

PIPE

CPTE., no. 4 injection

1шт.

12

708309R21

PIPE

CPTE., no. 3 injection

1шт.

13

708308R31

PIPE

CPTE., no. 2 injection

1шт.

14

708307R21

PIPE

CPTE., no. 1 injection

1шт.

15

841433R1

INSULATOR BLOCK

PAD, order two clips, 3124580R1

1шт.

16

841432R1

CLAMP

CILP

4шт.

3119161R1

NUT

MS nyloc

2шт.

3119162R1

SCREW

MS x 20mm cheese hd. sltd, order 2 clip, 3124580R1

1шт.

16

3124580R1

CLIP

2шт.

708321R91

SEAL, governor

2шт.

3111735R1

PLUG

closing

1шт.

3070777R1

SEALING WASHER

used on fuel filter port

1шт.
