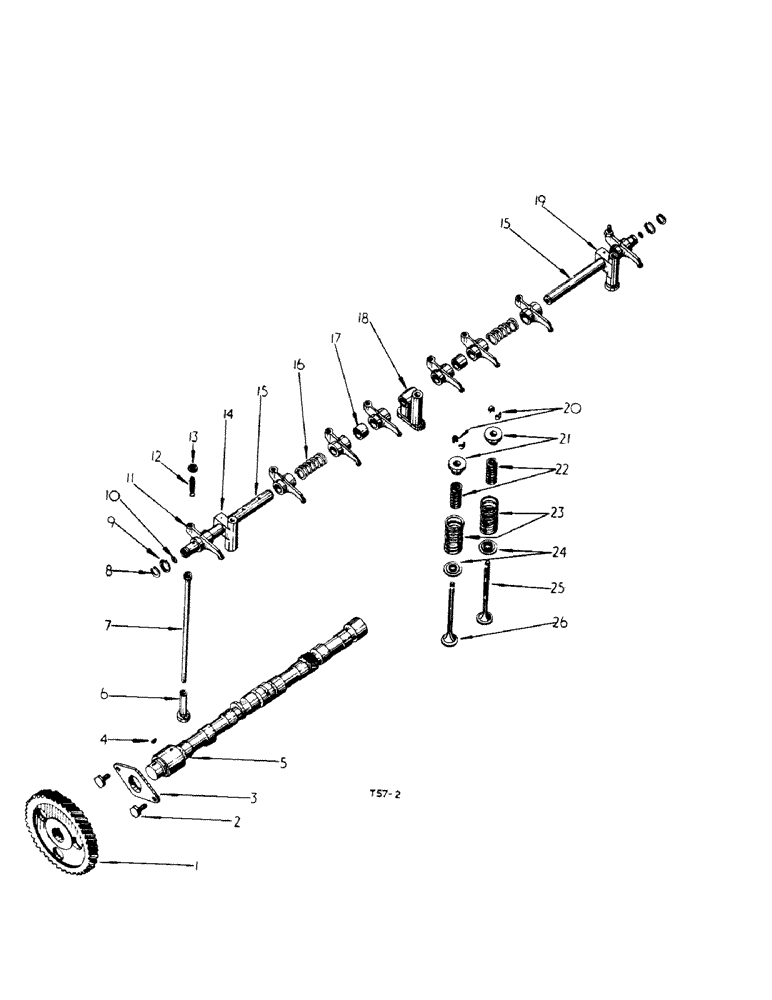

Запчасти Case IH 384 (12-12) - POWER, CAMSHAFT AND VALVE MECHANISM Power

1

3064085R1

PINION

GEAR, camshaft, 66T

1шт.

2

26058D

SCREW

camshaft thrust plate

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

3

43249D

PLATE

camshaft thrust

1шт.

4

218217

KEY

camshaft gear

1шт.

5

3063934R1

CAMSHAFT

1шт.

5

3064086R91

GEAR

CAMSHAFT, w/camshaft 3063934R1, gear 3064085R1, key 218217 and plate 43249D

1шт.

6

704782R1

TAPPET

valve

8шт.

7

3127452R1

ROD

valve push, replaces 704783R2

8шт.

8

43375D

RING

valve lever shaft snap

2шт.

9

43374D

SPRING WASHER

spring, valve lever shaft

2шт.

10

172528

PLUG,Exp, 9/16"

valve lever shaft

2шт.

11

706131R11

ROCKER

LEVER W/BUSHINGS 24564DA, valve

8шт.

11

24564DA

BUSHING

valve lever, optional with

8шт.

11

3071431R1

ROCKER

ARM, rocker

8шт.

12

3108732R1

ADJUSTMENT SCREW

adjusting valve lever

8шт.

13

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting screw

8шт.

14

703866R2

BRACKET, valve lever shaft, front

1шт.

102635

NUT,3/8"-16, G5

1шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

Pin, Grooved, 3/16" x 1 1/4", Type B

1шт.

15

703884R21

CAMSHAFT

SHAFT W/PLUG 172528, valve lever

2шт.

16

45949D

SPRING

valve lever

2шт.

17

703893R2

SPACER

valve lever

2шт.

18

703885R1

SUPPORT

BRACKET, valve lever shaft, centre

1шт.

19

703887R2

SUPPORT

BRACKET, valve lever shaft, rear

1шт.

102635

NUT,3/8"-16, G5

1шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

Pin, Grooved, 3/16" x 1 1/4", Type B

1шт.

20

704443R1

WEDGE

LOCK, valve spring

16шт.

21

3044176R1

CUP

valve spring retainer, upper

8шт.

22

3044239R1

VALVE SPRING

SPRING, valve, inner

8шт.

23

3044240R1

VALVE SPRING

SPRING, valve, outer

8шт.

24

3044491R1

CUP

valve spring retainer, lower

8шт.

25

3040361R1

OVERSIZE INLET VALVE

VALVE, intake

4шт.

26

3043826R1

LOCK VALVE

VALVE, exhaust

4шт.
