Заказать запчасти

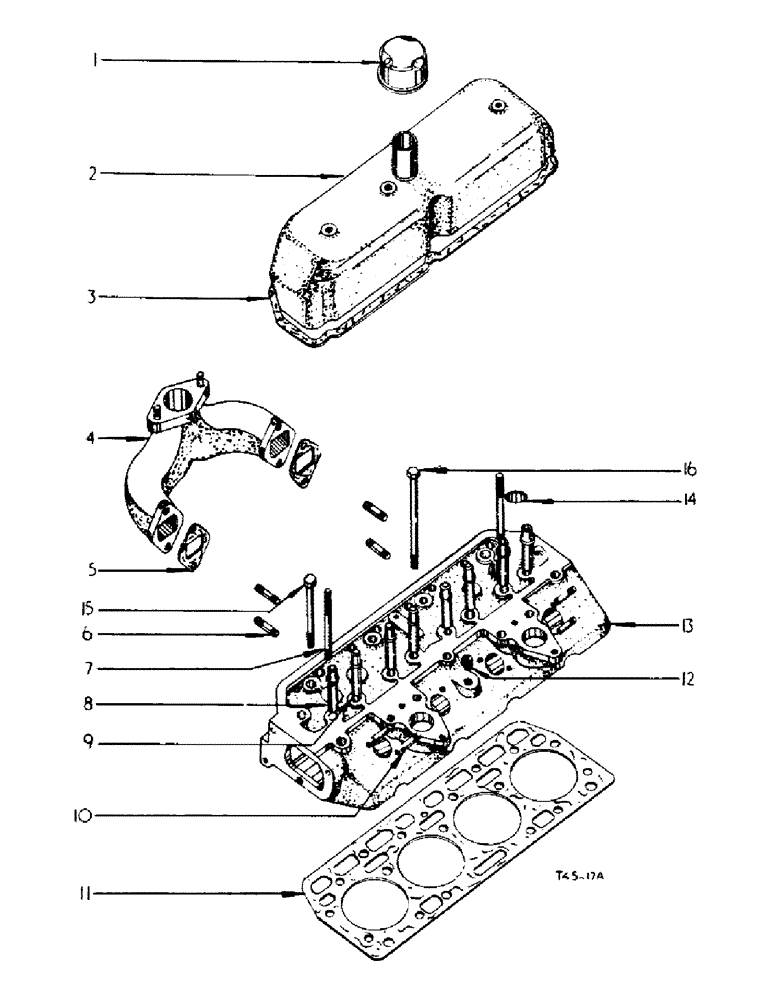

Запчасти Case IH 384 (12-10) - POWER, CYLINDER HEAD AND EXHAUST MANIFOLD Power
№
Артикул
Название
Примечание
Количество
1
3049701R91
FILTER, ELEMENT
BREATHER, cyl hd, for components, see list of parts under details of air breather
1шт.
2
3112012R11
COVER
halve housing
1шт.
179835
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd
1шт.
102635
NUT,3/8"-16, G5
2шт.
3
3069767R1
GASKET
valve cover
1шт.
4
3042719R11
MANIFOLD
exhaust
1шт.
443090
STUD
no. 6 x 3/8 drive
2шт.
5
704165R2
MANIFOLD GASKET
exhaust manifold
2шт.
6
703874R1
STUD
exhaust manifold
4шт.
280136
NUT,3/8"-16, G8
Manifold stud 3/8"-16, G8
4шт.
7
703875R1
STUD
rocker shaft end bracket
2шт.
10
703876R2
STUD
injection nozzle holder
8шт.
11
703883R6
GASKET
cyl hd
1шт.
3119914R1
GROMMET
cyl hd
1шт.
12
438159
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG, 1/2-14 pln sq/hd auto pipe
1шт.
13
3044489R91
CYLINDER HEAD
HEADY W/VALVES ASSY, cylinder, consists
1шт.
3044176R1
CUP
BEARING
8шт.
3044491R1
CUP
BEARING
8шт.
3044490R91
HEAD (CYLINDER)
HEAD
1шт.
704443R1
WEDGE
LOCK
16шт.
3044239R1
VALVE SPRING
SPRING
8шт.
3044240R1
VALVE SPRING
SPRING
8шт.
3043826R1
LOCK VALVE
VALVE
4шт.
3040361R1
OVERSIZE INLET VALVE
VALVE
4шт.
13
3044490R91
HEAD (CYLINDER)
HEAD LESS/VALVES ASSY, cylinder, consists of ref nos 6 thru 10 and 14
1шт.
14
172558
PLUG,Exp, 1 1/4"
1-1/4 pln expansion
2шт.
15
708331R1
BOLT
BOLT, cyl hd short
15шт.
16
708332R1
BOLT,Cyl Hd
cyl hd short
1шт.
63116D
WASHER
HEAD BOLT
16шт.
3065070R1
ELECTRICAL WIRE
WIRE, earth to no. 1 glow plug
1шт.
708127R2
ELECTRICAL WIRE
WIRE, no. 1 to no. 2 glow plug
1шт.
708128R2
ELECTRICAL WIRE
WIRE, no. 2 to no. 3 glow plug
1шт.
708127R2
ELECTRICAL WIRE
WIRE, no. 3 to no. 4 glow plug
1шт.
710348R1
GLOW PLUG
PLUG, glow
4шт.
710474R1
ISOLATOR
INSULATOR, glow plug
4шт.
3047624R1
NUT
terminal
1шт.
Выбрано товаров: 39
