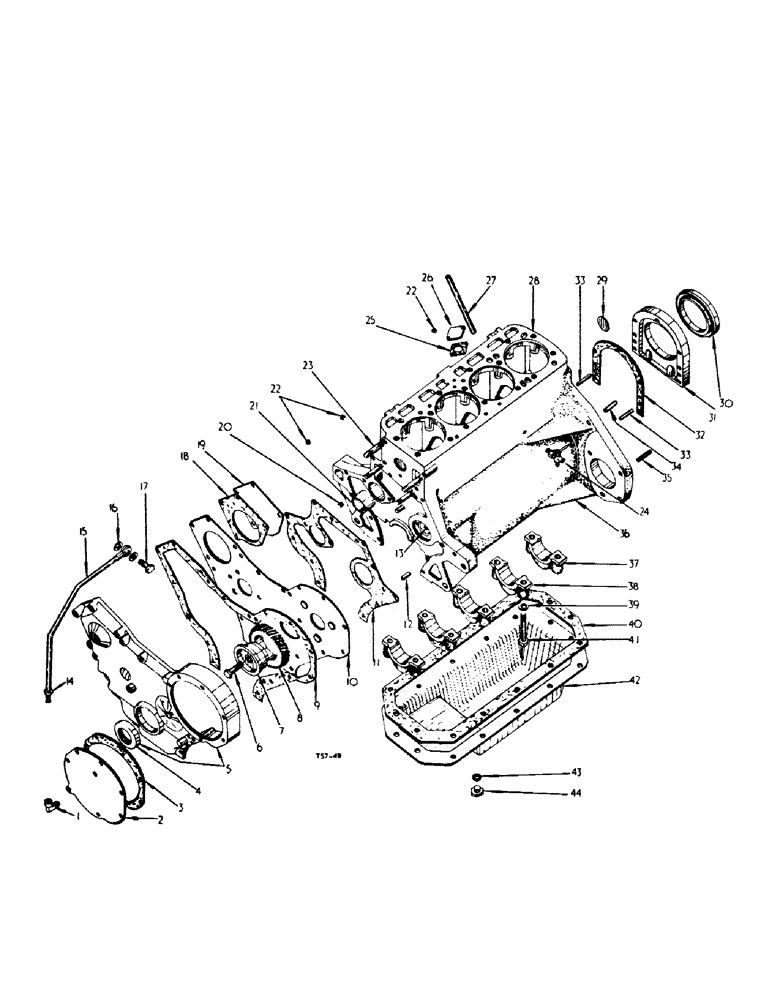

Запчасти Case IH 384 (12-08) - POWER, CRANKCASE, FRONT COVER AND OIL PAN Power

1

3110596R1

ELBOW

breather pipe

1шт.

2

709904R2

COVER

injection pump gear

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

6шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

3

703849R1

GASKET

injection pump gear cover

1шт.

4

3108650R91

SEAL

crankshaft, front

1шт.

5

3042069R21

COVER

crankcase front, replaces 708284R41

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

6

181434

BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5

1/2 UNF x 1-7/8 hex hd

1шт.

7

703853R11

SHAFT

idler gear w/pin 932039R1

1шт.

932039R1

LOCK PIN,M3 x 16, Slotted

PIN, roll, 3mm x 16mm

1шт.

8

703852R1

GEAR

idler

1шт.

9

708285R2

GASKET

front cover

1шт.

10

709901R11

PLATE

front

1шт.

3047230R1

SCREW

crankcase front cover

2шт.

11

709903R2

GASKET

front plate crankcase

1шт.

12

37-1616

DOWEL,3/8" x 1"

PIN, 3/8 x 1.000 pln UHDN dowel

2шт.

13

751610R1

INSERT

idler gear bolt screw lock 1/2 UNF x 1/2

1шт.

14

700153R11

NUT

connector, optional with

1шт.

14

222-504

TUBE NUT,9/16"-20

NUT, connector

1шт.

15

3043654R92

HOSE

PIPE, crankcase breather

1шт.

16

708297R1

GASKET

WASHER, breather pipe banjo bolt

2шт.

17

708296R1

CONNECTOR, ELEC

BOLT, breather pipe banjo, optional with

1шт.

17

3070324R1

BOLT,1/2" - 20 x 1.067"

breather pipe banjo

1шт.

18

703851R1

GASKET

hydraulic pump opening cover

1шт.

19

703850R1

COVER

hydraulic pump opening

1шт.

13-534

BOLT,Hex, 5/16" - 18 x 2-1/8", Gr 5

5/16 x 2-1/8 pln type 5

1шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

3шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

1шт.

20

444691

PLUG

1/4-18 pln hex/skt auto pipe

2шт.

21

703827R1

CAMSHAFT BEARING

BUSHING, camshaft, front

1шт.

21

703828R1

CAMSHAFT BEARING

BUSHING, camshaft, centre

1шт.

21

703829R1

CAMSHAFT BEARING

BUSHING, camshaf, rear

1шт.

22

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

3шт.

23

703832R1

STUD

water pump

4шт.

24

444734

PLUG,Sq Hd, 1/4"-18 NPTF

1/4-18 pln sq/hd filler & drain

1шт.

25

3042467R1

GASKET

tacho drive opening cover

1шт.

26

(Not used)

1шт.

27

751826R1

TUBE,0.375" OD, 5.75" Length

dipstick

1шт.

28

751834R1

INSERT

heli-coil thread 7/16 x 14

16шт.

29

172578

PLUG,Exp, 1 3/4"

expansion, type 1 1-3/4 dia

1шт.

30

3072092R91

OIL SEAL

rear crankshaft oil

1шт.

31

708904R1

RETAINER

crankshaft rear oil seal

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

seal retainer

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

32

708907R1

GASKET

crankshaft rear oil seal retainer

1шт.

33

141223

DOWEL,5/16" x 1"

PIN, crankshaft rear oil seal retainer

1шт.

34

141287

DOWEL,1/2" x 1 1/2"

PIN, 1/2 x 1.500 pln UHDN dowel

2шт.

35

703877R1

STUD

starter motor

1шт.

36

3040912R41

CRANKCASE

ASSY, replaces 3047288R31, consists of ref nos. 12, 13, 20, 21, 22, 24, 27, 28, 29, 33, 34, 35, 38, 39, 41

1шт.

37

708902R2

BEARING CAP,2.273" ID x 1.1013"

CAP, crankshaft bearing rear

1шт.

38

706491R2

CAP

crankshaft bearing

1шт.

39

3061325R1

WASHER

crankshaft bearing cap bolt

10шт.

40

703840R1

GASKET

crankcase pan

1шт.

41

3061211R1

BOLT,1/2" - 13 x 2.875"

crankshaft bearing cap

10шт.

42

3064063R11

SUMP

PAN, crankcase oil

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

14шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

43

3405H

GASKET

crankcase pan drain plug, optional with

1шт.

43

3043644R1

WASHER

GASKET, crankcase pan drain plug

1шт.

44

445096

PLUG

7/8-18 pln out/h/hd filler/drain

1шт.
