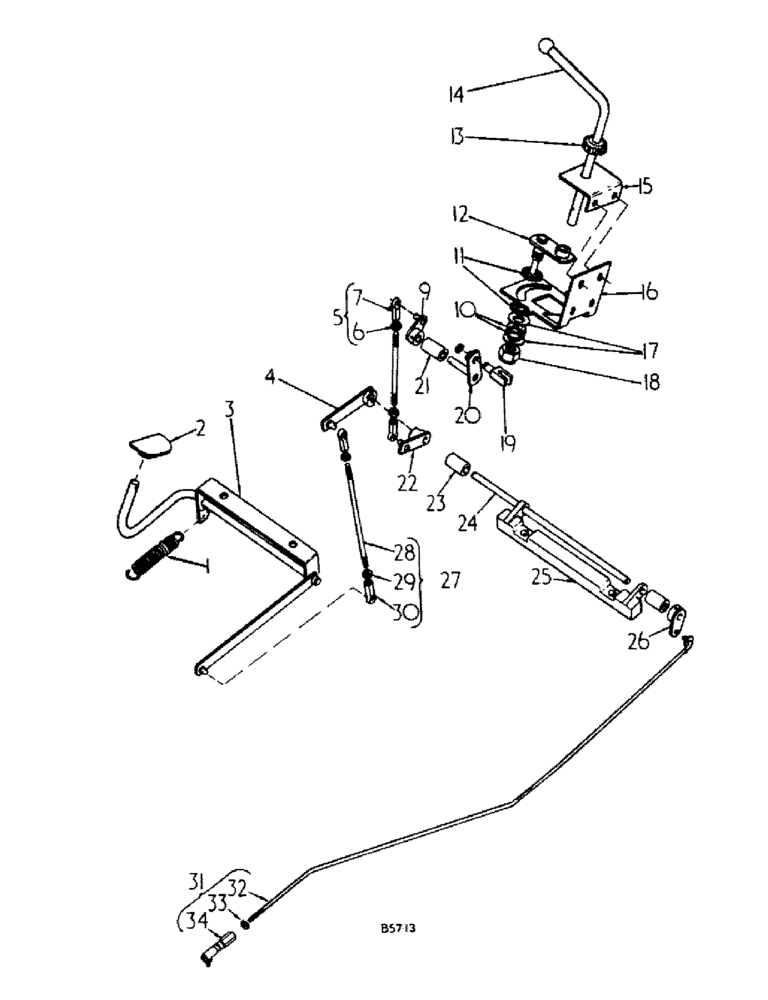

Запчасти Case IH 384 (12-06) - POWER, GOVERNOR CONTROLS Power

1

3047546R1

SPRING

pedal return

1шт.

2

3108779R1

PEDAL

foot accelerator

1шт.

18607R1

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

3

3112052R1

BRACKET

cross shaft

1шт.

15016R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/8" , Gr 2

BOLT, 7/16 x 1-1/8 pln crg type 1

2шт.

NLS

NO LONGER SERVICED

7/16 PLN type 5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

4

3112094R2

SUPPORT

LEVER, foot accelerator

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

5

3121881R91

THREADED ROD

ROD ASSY, control

1шт.

6

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

7

3068537R1

TRUNNION

END, control rod

2шт.

8

ROD, control (NSS)

1шт.

9

3121883R1

LEVER

governor control

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

10

3112079R1

WASHER

disc spring

2шт.

11

3112078R1

FRICTION WASHER

friction governor control

2шт.

12

3121855R1

ARM, governor control washer, 19.32 x 1 x .063

1шт.

13

528290R1

GUIDE RING

COLLAR, governer control handle

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

SCREW, no. 8 x 3/8 pln F/PT hdl/hs set

1шт.

14

3121887R1

ROD

governor control handle replaces 3123639R1

1шт.

17054R1

LOCK PIN,3/16" x 7/8", Slotted

Pin, 3/16" x 7/8", Slotted

1шт.

397931R2

GRIP

KNOB, governor control handle

1шт.

397931R2GV

SPRING

Value, Knob

1шт.

15

3121899R1

BRACKET

governor control rod

1шт.

179795

TILLAGE BLADE

1/4 x 3/4 pln type 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

.281 x .625 x .051 PHC

4шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

16

3121895R1

BRACKET

governor control friction

1шт.

17

551174R1

WASHER

19/32 x 2-1/4 x 1/8

2шт.

18

3112678R1

NUT

9/16 UNF self locking

1шт.

19

3112086R1

FORK

governor control

1шт.

3112087R1

WASHER

governor control fork

1шт.

138693R1

SNAP RING,#31, Ext

Ring, Snap, #31, Ext

1шт.

20

3121888R1

LEVER

throttle arm

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

21

3121890R1

SPACER

throttle arm

1шт.

22

3112091R1

LEVER

cross shaft driving

1шт.

23

3121892R1

SPACER

governor control cross shaft

2шт.

24

3121891R1

SHAFT

governor control cross

1шт.

25

3121893R1

BRACKET

cross shaft support

1шт.

179857

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

7/16 x 7/8 pln type 5

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

26

3114217R1

LEVER

cross shaft

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

27

3112050R91

ROD

ASSY, foot accelerator control

1шт.

28

ROD, control (NSS)

1шт.

29

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

30

3068537R1

TRUNNION

NUT, control rod

2шт.

31

3125091R91

ROD

ASSY, cross shaft to governor, replaces 3112097R91

1шт.

32

ROD, cross shaft to governor (NSS)

1шт.

137141

AXLE PIN

PIN, 1/16 x 5/8 cot

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

23036R1

WASHER

.406 x .750 x .021

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

33

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-NF pln jam type 5 used w/rod, 3112097R91 serial no. 2135 and below

1шт.

33

114501

JAM NUT,Jam, 1/4"-20, G5

Used w/rod, 3125091R91 S/N 2136 and above Jam, 1/4"-20, G5

1шт.

34

3109941R1

END, control rod adj used w/rod, 3112097R91 serial no. 2135 and below

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-NF pln jam type 5

1шт.

115547

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

34

3068537R1

TRUNNION

END, control rod adj use w/rod, 3125091R91 serial no. 2136 and above

1шт.

3070498R1

END

BALL, end

1шт.

27603R1

SCREW

BOLT, 1/4-20 x 1-1/2 zn

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

High idle adj. stop Jam, 1/4"-20, G5

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 hex hd

1шт.

120377

NUT,3/8" - 16, Gr 5

Foot accelerator stop 3/8"-16, G5

2шт.
