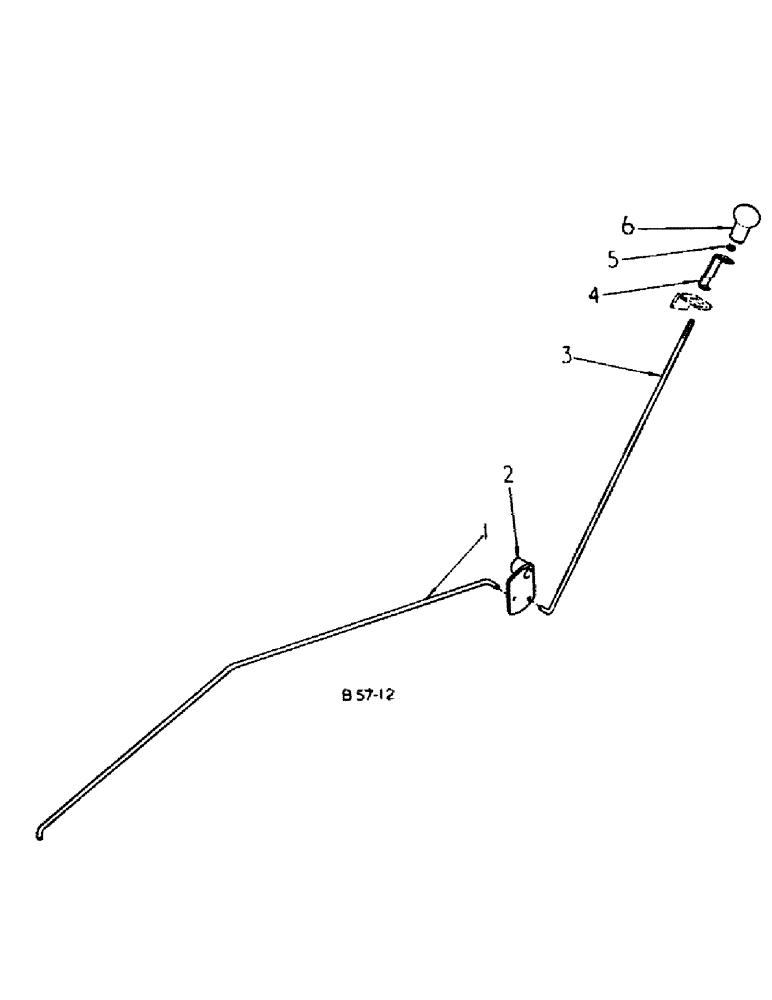

Запчасти Case IH 384 (12-05) - POWER, FUEL SHUT-OFF CONTROLS Power

1

3112047R1

ROD

shut-off, Serial Range: lever-governor

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 pln cot

2шт.

446160

WASHER,#10

.219 x .438 x .036 pln

2шт.

2

3112042R1

LEVER

fuel shut-off

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

3

3121894R1

ROD

stop, Serial Range: control-lever

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 pln cot

1шт.

446160

WASHER,#10

.219 x .438 x .036 pln

1шт.

4

3066382R1

SPRING

engine stop control

1шт.

5

706216R1

NUT

2 BA hex

1шт.

6

3066381R1

KNOB

engine stop control

1шт.
