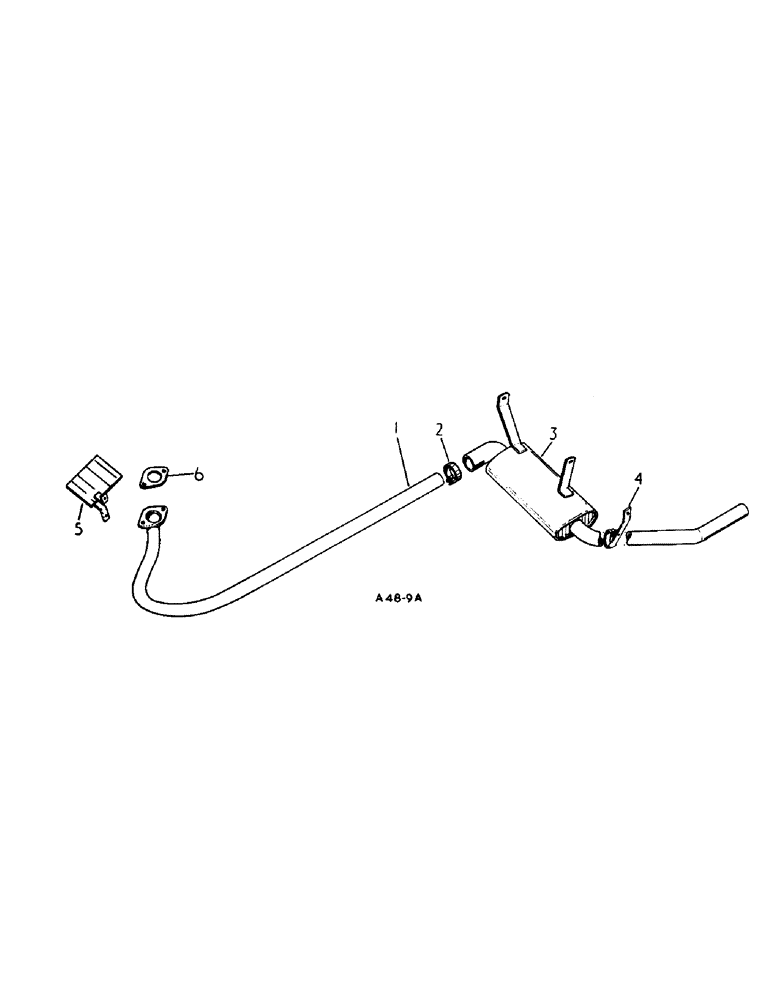

Запчасти Case IH 384 (12-01) - POWER, DOWNSWEPT EXHAUST PIPE ATTACHMENT Power

1

3044044R95

PIPE

ASSY, exhaust

1шт.

20279D

NUT, pipe flange

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

44309D

SUTD, 6 x 3/8 drive

2шт.

2

704621R1

CLAMP

exhaust pipe

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

3106834R1

MUFFLER

exhuast

1шт.

4

3068010R1

CLAMP

muffler outer pipe support

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

3119764R1

SHIELD

heat, alternator protection

1шт.

6

704613R1

GASKET

exhaust pipe flange

1шт.
