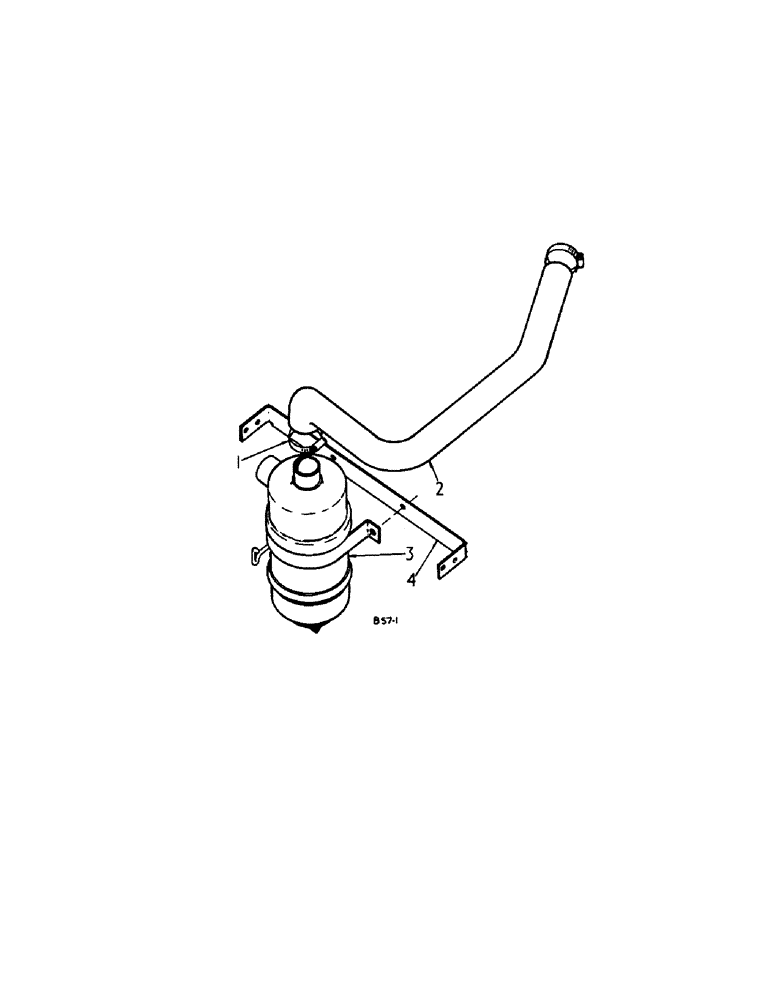

Запчасти Case IH 384 (12-01[1]) - POWER, AIR CLEANER AND CONNECTIONS Power

1

3025291R91

CLIP

worm drive

2шт.

2

3111971R1

HOSE

air cleaner connection

1шт.

3

3111969R92

CLEANER ASSY.

CLEANER, dry type air-see detail list, not serviced separately order 3125201R91 or 3125596R91

1шт.

3

3125201R91

CLEANER

dry type air, see detail list, or

1шт.

3

3125296R91

CLEANER, dry type air, see detail list

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

3121870R1

CLEANER

SUPPORT, air cleaner

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
