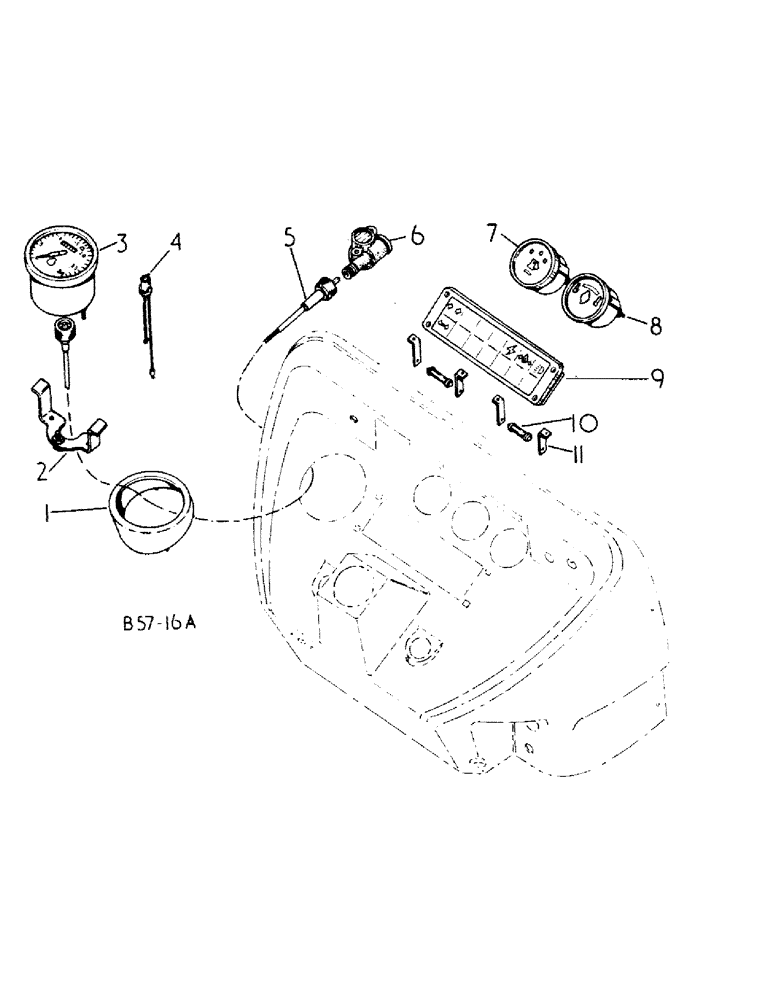

Запчасти Case IH 384 (11-02) - INSTRUMENTS Instruments
№
Артикул
Название
Примечание
Количество
1
3123126R1
SUPPORT
tachometer
1шт.
2
3125109R91
CLAMP
tachometer, B001071 up
1шт.
463-1108
SCREW,Hex Hd, #10-24 x 1/2"
. no. 10 x 1/2 znp h/hd mach,Course threads
1шт.
110633
NUT,#10-24
1шт.
106497
LOCK WASHER,#10
WASHER, LOCK, #10
1шт.
3
3125791R91
TACHOMETER
hourmeter, replaces 3125108R91, B001071 up
1шт.
3
3123581R91
TACHOMETER
hourmeter
1шт.
3123738R1
PLATE
tachometer
1шт.
3123740R1
CLAMP
tachometer RH
1шт.
3123739R1
CLAMP
tachometer RH, Serial Range: up-B001070
1шт.
1093358R1
PRODUCT GRAPHIC
speed chart MPH
1шт.
4
3123661R1
HOLDER
ASSY, tacho lamp
1шт.
529233R1
LAMP
12V 3W capless
1шт.
5
3125111R91
CABLE
flexible drive w/cable 3125162R1
1шт.
3125162R1
CABLE
inner, B001071 up
1шт.
5
3070503R93
CABLE
flexible drive w/cable 3071262R1
1шт.
3070262R1
CABLE, inner, Serial Range: up-B001070
1шт.
3071262R1
FLEXIBLE DRIVE SHAFT
CABLE, inner
1шт.
6
3125112R91
HOUSING
ASSY, gear, B001071 up
1шт.
6
3070504R91
CASE
HOUSING ASSY, gear, Serial Range: up-B001070
1шт.
179793
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd
1шт.
179800
BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
7
3121239R1
FUEL GAUGE
GAUGE ASSY, fuel, A.C. Delco, or
1шт.
7
3129840R1
FUEL GAUGE
GUAGE ASSY, fuel, Icknield
1шт.
8
3121240R1
ELECTRICAL GAUGE
GAUGE ASSY, water temperature, A.C. Delco, or
1шт.
8
3127959R1
ELECTRICAL GAUGE
GAUGE ASSY, water temperatur, Icknield
1шт.
9
3121636R1
HOLDER
warining light lamp
1шт.
3121718R1
SCREW
6-32 x 5/8 counter-sunk hd
4шт.
3121717R1
LOCK NUT
lokut
4шт.
529233R1
LAMP
12V 3W wedge type capless
5шт.
22284R1
O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro
4-1/2 x 4-11/16 class 5
1шт.
10
710196R1
BULB,C5W, 12V, 5W
Festoon C11, 12Vm 5W
2шт.
11
3121705R1
CONTACT HOUSING
lamp
4шт.
1321704R1
SCREW, no. 4-40 x 5/16 slt fil hd
4шт.
3121703R1
TERMINAL CONNECTOR
TERMINAL, 1/4 blade
4шт.
Выбрано товаров: 36
