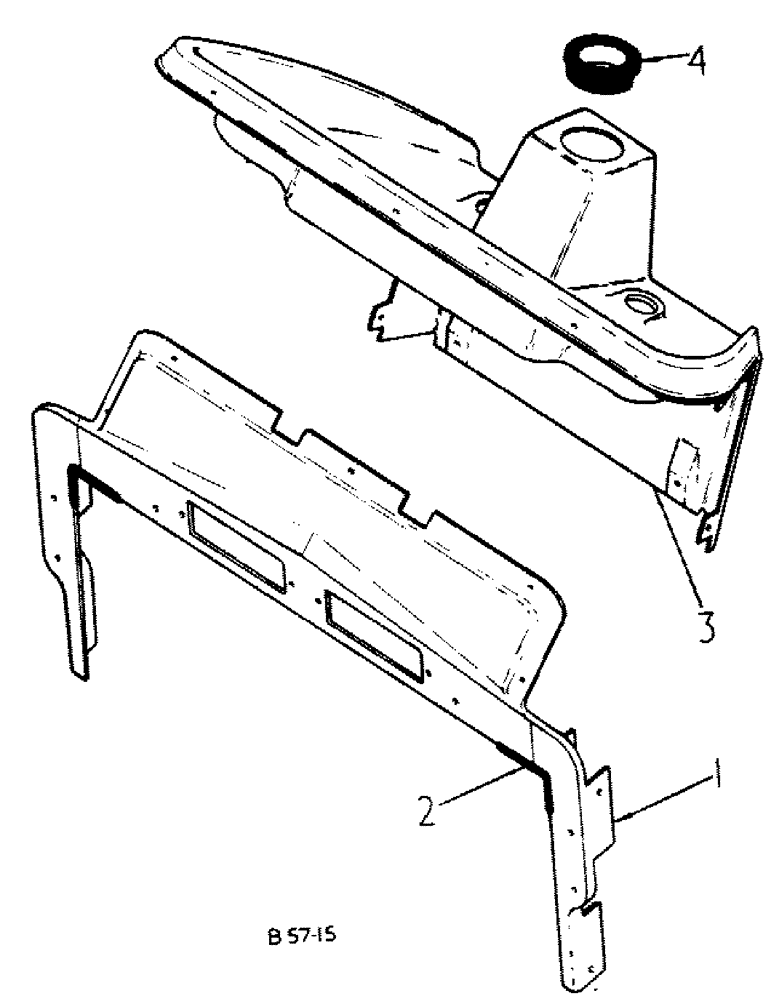

Запчасти Case IH 384 (11-01) - INSTRUMENTS, INSTRUMENT PANEL AND SUPPORT Instruments

1

3125770R91

PLATE

ASSY, instrument panel support

1шт.

179795

TILLAGE BLADE

1/4 x 3/4 pln type 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

4шт.

2

3118677R1

SEAL, RUBBER

STRIP, edging, bulk length 50 meters

1шт.

3

3123131R1

HOUSING

instrument panel

1шт.

3125816R1

LENS

green

1шт.

4

3123366R1

PLUG

rubber

1шт.

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

2шт.

23993R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, no. 10-16 x 1/2 h/hds tap

3шт.

120391

WASHER,#10

.219 x .500 x .036

3шт.

538239R1

PLUG

blanking

1шт.

3113429R1

PLUG

blanking TA lever hole

1шт.

3121940R93

PLATE

instrument panel support

1шт.

3123171R1

NUT

captive

7шт.
