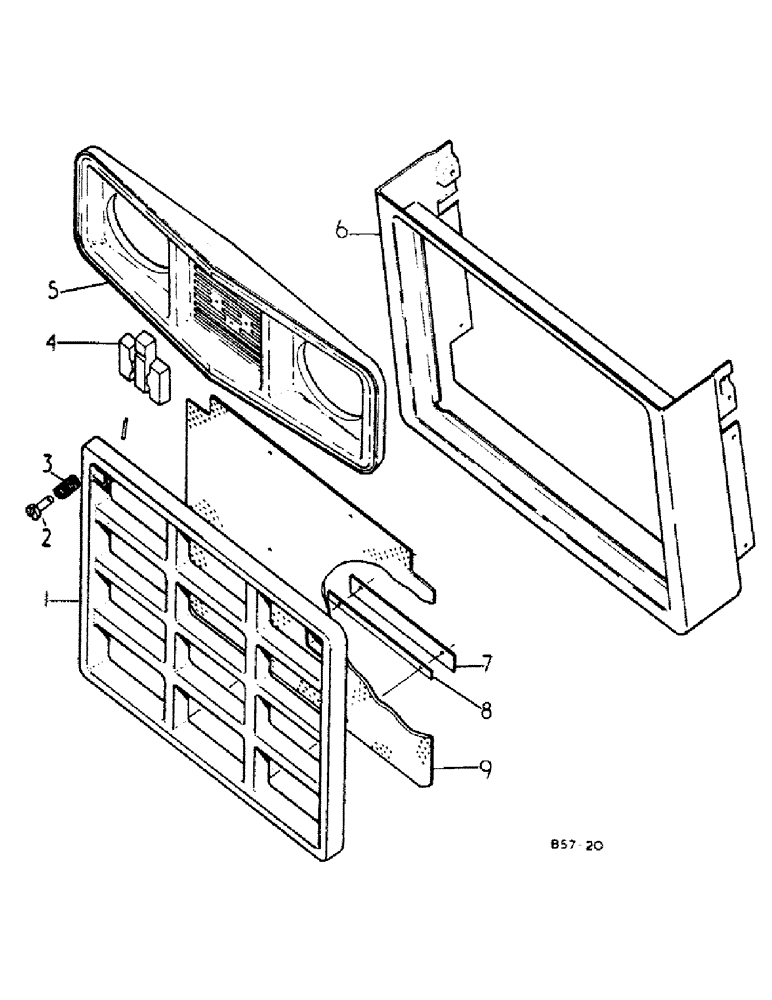

Запчасти Case IH 384 (06-02) - COOLING, RADIATOR GRILLE Cooling

1

3121672R1

GRILLE

radiator, headlight high position

1шт.

2

3113470R1

PIN

LATCH, grille

2шт.

26052R1

PIN,3/16" x 1 1/2", Coiled

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

3

532180R1

SPRING

grille latch

2шт.

4

120397C1

EMBLEM CASE/IH

PRODUCT GRAPHIC, IH grille

1шт.

120391

WASHER,#10

.219 x .500 x .036

4шт.

260-5458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, no. 10-16 x 1/2 P/HDCR tap

4шт.

5

3121675R1

GRILLE ASSY

upper

1шт.

231-24109

LOCK NUT,#10-32, GB

NUT, no. 10 lock

8шт.

120391

WASHER,#10

.219 x .500 x .036

8шт.

6

3121231R1

HOUSING

lower grille

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

95-11028

WASHER,1/4"

.281 x .625 x .051 pln

2шт.

109084

NUT,1/4"-20, G5

2шт.

7

3121653R1

BRACKET

grille retaining

1шт.

8

3121654R1

BAR

grille retaining

1шт.

436750R1

SCREW

10-32 x 1/2 slt pan-hd mach

2шт.

23505R1

WASHER

.281 x .625 x .054

2шт.

9

3121673R1

SCREEN

grille

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

SCREW, 10-24 hex. washer-hd tap

4шт.
