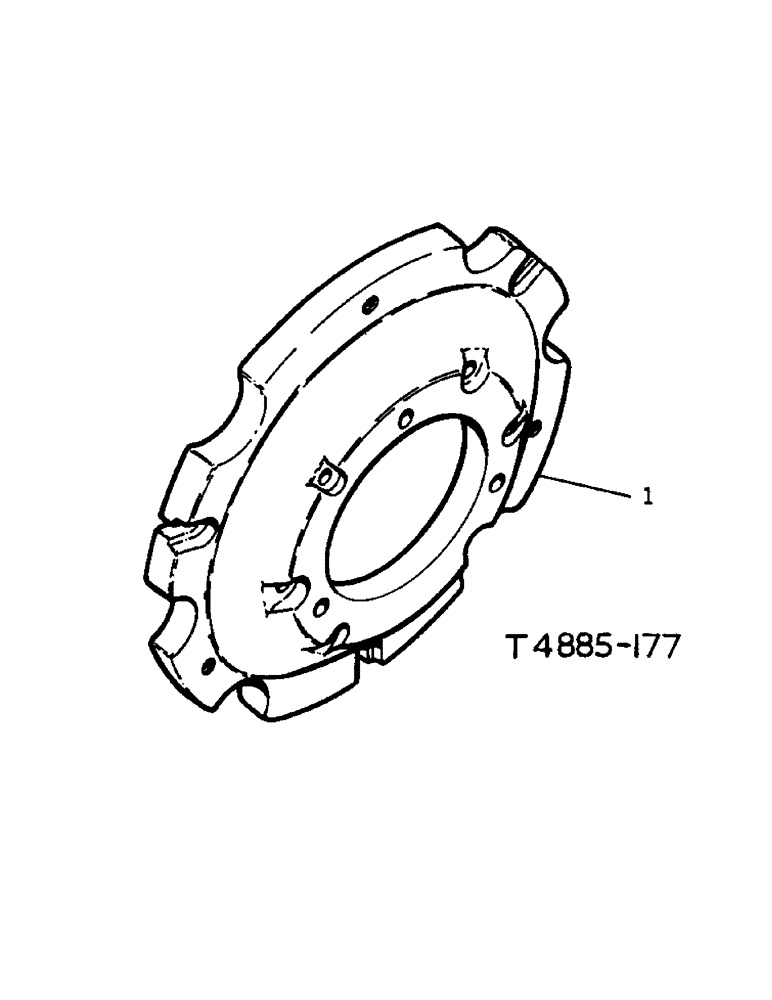

Запчасти Case IH 384 (02-01) - MISCELLANEOUS, REAR WHEEL WEIGHTS Accessories & Attachments / Miscellaneous

1

3069592R91

ATTACHMENT, rear wheel weight, 2 weights for 28 in wheels, consists of

1шт.

3069692R91

WEIGHT, rear wheel

2шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8 x 3-3/4 pln, Course Threads

6шт.

102639

NUT,5/8"-11, G5

6шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

.656 x 1.312 x .074 pln

6шт.

3042299R1

WASHER

taper

6шт.

1

3069593R91

ATTACHMENT, rear wheel weight, 4 weights for 28 in wheels, consist of

4шт.

3069692R1

WEIGHT

rear wheel

4шт.

3069693R1

BOLT

5/8 x 6-3/4

6шт.

102639

NUT,5/8"-11, G5

6шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

.656 x 1.312 x .074 pln

12шт.

1

3069677R91

WHEEL WEIGHT

ATTACHMENT, rear wheel weight, 2 weights for 24 in wheels, consists of

1шт.

3069692R1

WEIGHT

rear wheel

2шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

rear wheel, Course Threads

2шт.

704160R1

NUT

clamp

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

1

3069678R91

WHEEL WEIGHT

ATTACHMENT, rear wheel weight, 4 weights for 24 in wheels, consists of

1шт.

3069692R1

WEIGHT

rear wheel

4шт.

3069694R1

BOLT,5/8" x 8"

5/8 x 8

6шт.

102639

NUT,5/8"-11, G5

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.
