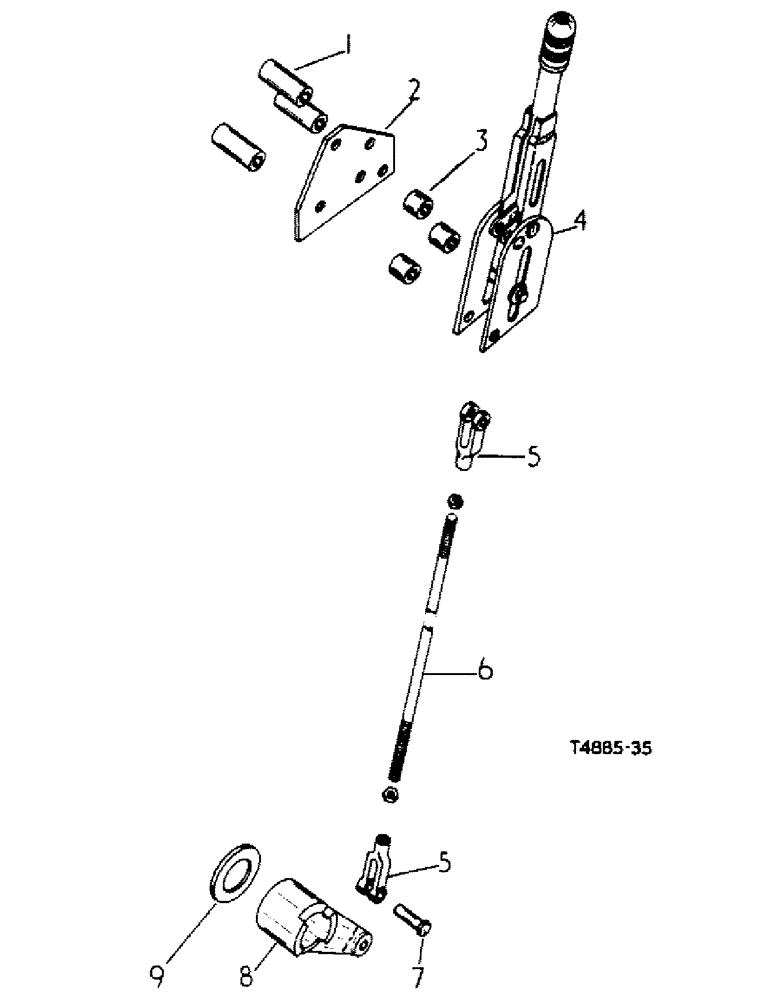

Запчасти Case IH 384 (04-04) - BRAKES, HAND BRAKE LINKAGE (5.1) - BRAKES

1

3047776R1

SPACER

handbrake mtg plate

3шт.

2

3064187R1

PLATE

handbrake lever mtg

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

3064188R1

SPACER

hanbrake lever mtg plate

3шт.

4

3045931R93

LEVER

handbrake, for details see list of parts under detail, handbrake

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

3/8 x 4-1/2 pln type 5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

102635

NUT,3/8"-16, G5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

5

3071486R1

CLEVIS

rod end

2шт.

6

3064189R1

ROD

handbrake connection nut, 5/16 NF jam type 5

2шт.

124920

JAM NUT,Jam, 5/16"-24, G5

2шт.

7

39374D

CLEVIS PIN,5/16" x 1 1/16"

PIN, 5/16 x 1-1/16 rod end

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

8

3070578R1

LEVER, handbrake operating

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

9

3064192R2

WASHER, pedal shaft

1шт.
