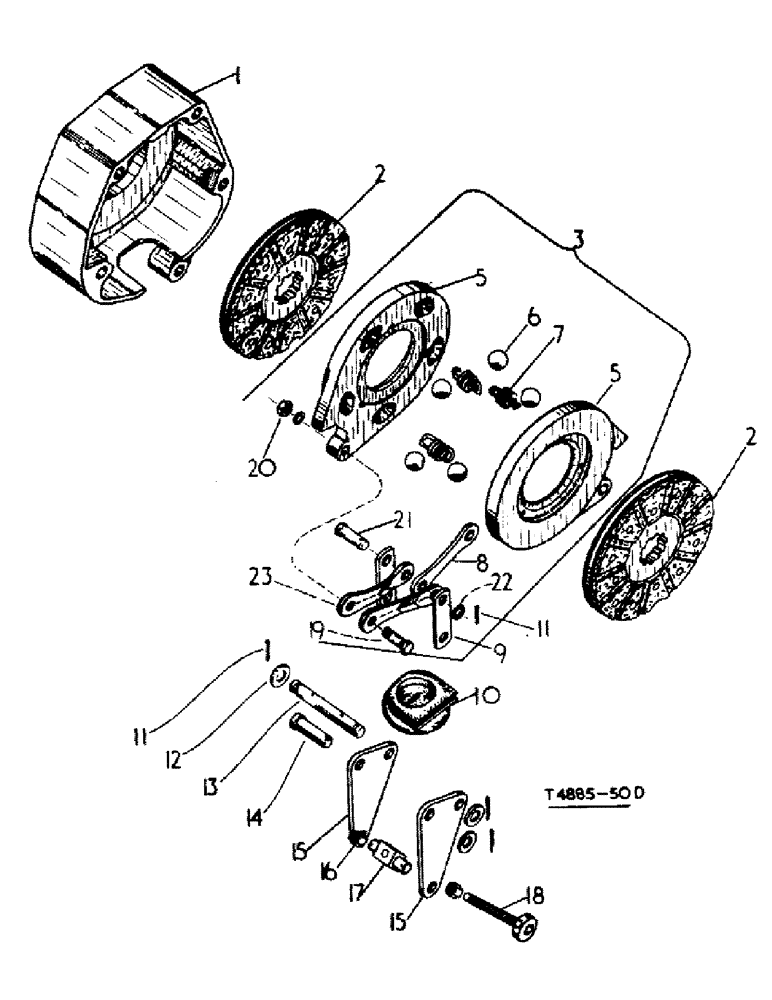

Запчасти Case IH 384 (04-02) - BRAKES, DISC BRAKES (5.1) - BRAKES

3064168R93

BRAKE

ASSY, disc RH

1шт.

3064167R93

BRAKE

ASSY, disc LH

1шт.

1

3105298R1

HOUSING

brake RH

1шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1/2 x 3-1/2 pln type 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

1

3105297R1

HOUSING

brake LH

1шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

1/2 x 3-1/2 pln type 5

3шт.

179896

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

2

395161R1

DISC

ASSY, brake, optional with

2шт.

2

3064170R91

BRAKE DISC

DISC ASSY, lined friction

2шт.

3040152R92

LINING

PACKAGE, brake lining service

1шт.

3

3105296R91

ACTUATOR

KIT ASSY, actuating disc, consists ref nos 5 thru 9, 11, 19 thru 23

2шт.

4

(Not applicable)

1шт.

5

3105304R1

DISC

actuating, order 3105296R91 disc assy

2шт.

6

706039R2

BALL

7/8 dia.

5шт.

7

3066876R1

SPRING

return disc

3шт.

8

3105302R1

LINK

plain

1шт.

9

3067140R1

LINK

tension

2шт.

10

3064173R1

BOOT

rubber

1шт.

11

3071519R1

PIN

cotter 3/32 x 7/8

1шт.

12

3067147R1

WASHER

35/64 x 1 x .090

1шт.

13

3064195R1

PIN

brake operating pivot

1шт.

14

3064216R1

PIN

tension link

1шт.

15

3064194R1

LEVER

brake operating

2шт.

16

3067136R1

LOCK NUT

lock, 3/8 UNF, special

2шт.

17

3064217R1

TRUNNION

PIVOT, brake operating lever, blank

1шт.

18

3064218R1

BOLT

footbrake adjuster

1шт.

19

3066872R1

BOLT

PIN, pivot

2шт.

20

3066877R1

NUT

lock

1шт.

21

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN, jaw

1шт.

22

3067142R1

WASHER

1шт.

23

30105303R1

LINK, cranked

2шт.
