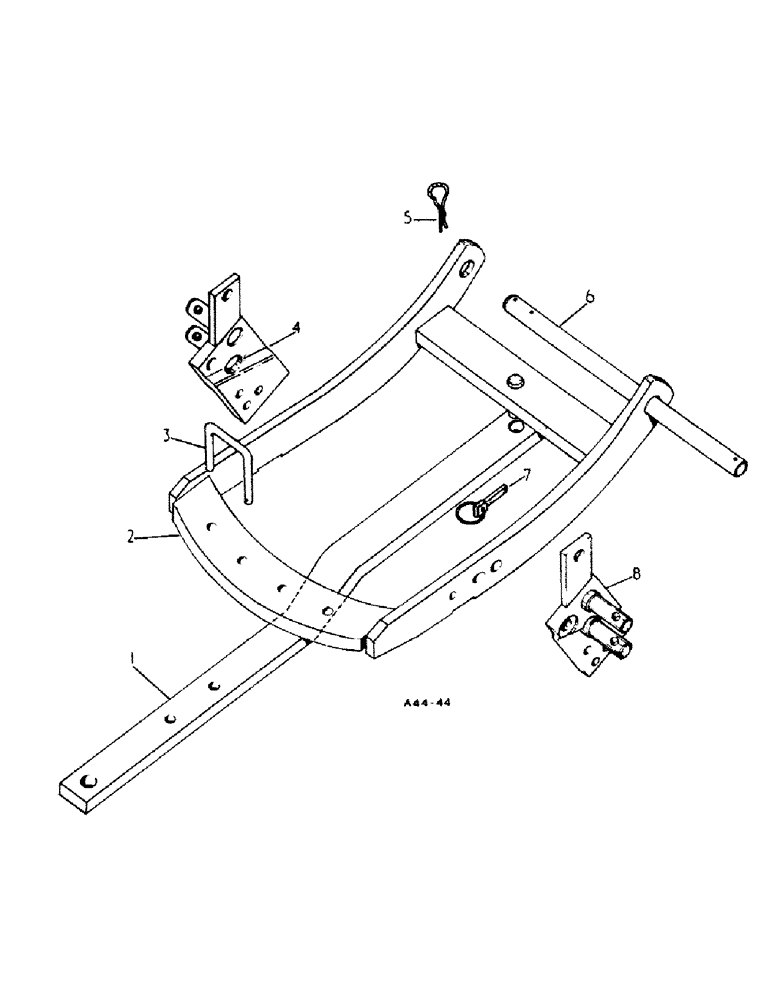

Запчасти Case IH 384 (09-01) - FRAME, DRAWBAR (12) - FRAME

1

3111194R1

BAR

swinging

1шт.

2

3071327R91

FRAME

drawbar

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

3/4 x 2-1/4 pln type 5

2шт.

425-1012

NUT,3/4"-10, G5

3/4 pln type 5

2шт.

3

3071789R2

PIN

stop swinging drawbar

1шт.

720631R1

LINCH PIN

PIN, cot.

1шт.

4

3110213R91

PLATE

ASSY, drawbar support LH

1шт.

271606

BOLT,Hex, 3/4" - 10 x 1 3/8", Gr 5

3/4 x 1-3/8 pln type 5

1шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

3шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

3/4 x 1-3/4 pln type 5

1шт.

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

3/4 x 1-1/4 pln type 5

1шт.

5

3067210R1

CLIP

spring

2шт.

6

704058R1

PIN

drawbar frame

1шт.

7

533189R1

PIN

implement cotter

1шт.

8

3110214R91

PLATE

PLTAE ASSY, drawbar support RH

1шт.

NLS

NO LONGER SERVICED

3/4 x 1-3/8 pln type 5

1шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

3/4 x 1-3/4 pln type 5

1шт.

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

3/4 x 1-1/4 pln type 5

1шт.
