(10-21) - HYDRAULICS, PRESSURE PIPE, AUXILIARY VALVE ATTACHMENTS

Запчасти Case IH 384 (10-21) - HYDRAULICS, PRESSURE PIPE, AUXILIARY VALVE ATTACHMENTS (07) - HYDRAULICS

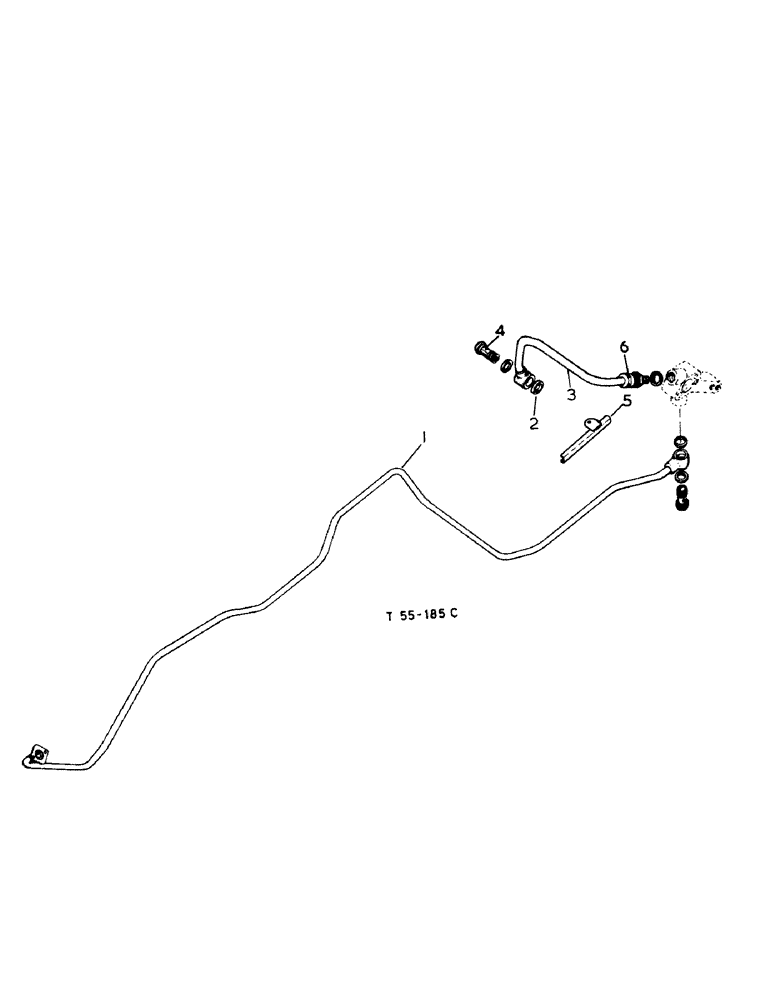

Схема запчастей Case IH 384 - (10-21) - HYDRAULICS, PRESSURE PIPE, AUXILIARY VALVE ATTACHMENTS (07) - HYDRAULICS
3
4
5
6
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3069028R51

PIPE

ASSY, pressure

1шт.

2

704337R1

SEALING WASHER

WASHER, dowty

5шт.

3

3069024R11

PIPE

ASSY, pressure adapter block to main valve

1шт.

4

3069026R1

BOLT,1/2" BSP x 2"

banjo

2шт.

5

3069030R11

ROD

CONDUIT, cable front

1шт.

6

3069027R91

COUPLING, BREAK AWAY

COUPLING, 1/2 BSP steel

1шт.
